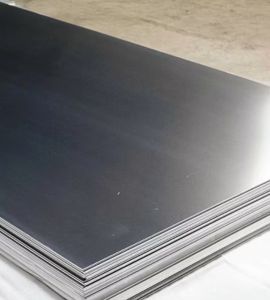

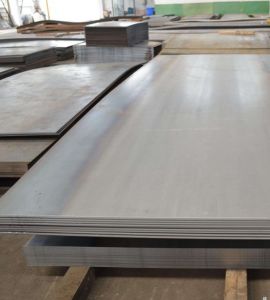

Hassan Sheets and Plates is a reputable manufacturer and supplier located in Riyadh, Saudi Arabia, specializing in high-quality stainless steel products, including Stainless Steel 422 Sheets and Plates. Known for their commitment to quality, precision, and timely delivery, Hassan serves a variety of industries such as aerospace, power generation, thermal processing, and petrochemicals. Stainless Steel 422 is a hardenable martensitic stainless steel that stands out for its remarkable high-temperature strength, oxidation resistance, and wear resistance. Hassan offers tailored solutions that comply with international standards, providing durable and cost-effective materials for demanding industrial applications both in Saudi Arabia and around the globe.
The composition of Stainless Steel 422 Sheets and Plates primarily includes iron, with 11–13% chromium, 0.2–0.3% carbon, and notable amounts of molybdenum, tungsten, and vanadium. This unique blend boosts high-temperature strength, creep resistance, and oxidation resistance. In terms of mechanical properties, 422 boasts a tensile strength ranging from 655 to 895 MPa, a yield strength of about 450 MPa, and good ductility, maintaining its structural integrity at temperatures up to 650°C. Its hardenability and outstanding mechanical performance make it an excellent choice for components that face both mechanical stress and high heat, especially in turbine and thermal processing applications.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |

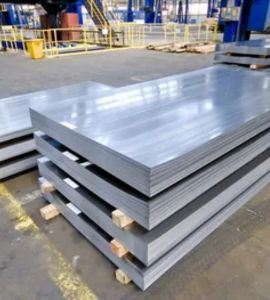

| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |

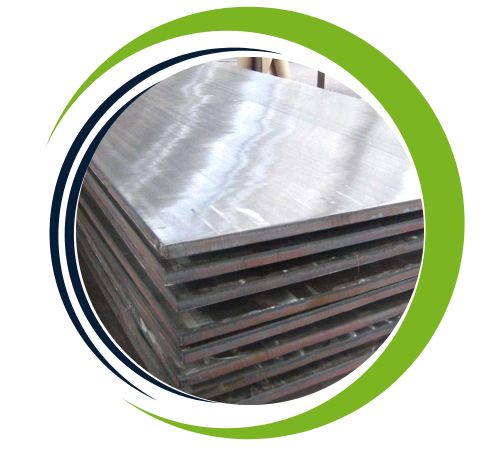

| Surface Finish : | Plain, Brushed, Cladded |
| Grade | C | P | Si | Ni | V | Fe | Mn | S | Cr | Mo | W | Cu |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS 422 | 0.20-0.25 | 0.040 max | 0.20-0.60 | 0.50-1.0 | 0.17-0.30 | Bal | 1.0 | 0.030 max | 11.0-13.5 | 0.75-1.25 | 0.75-1.25 | 0.50 |
| Material | Condition | 0.2 % Yield Strength (ksi) | Ultimate Tensile Strength (ksi) | % Elongation in 2″ | % Reduction of Area | Hardness HB |
|---|---|---|---|---|---|---|
| SS 422 | Hardened & Tempered (AMS 5655) | 140 | 115 | 13 | 25 | 293-341 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 422 | 1.4935 | S42200 |
| Density (lb / cu. in.) | 0.287 |
| Specific Gravity | 7.94 |
| Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | 0.12 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 432 |
| Melting Point (Deg F) | 2590 |
| Modulus of Elasticity Tension | 28 |
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
|---|---|---|
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 422 sheets and plates offer many advantages, including excellent increased strength and oxidation resistance, making them ideal for applications in harsh environments such as turbine heat exchangers They provide excellent corrosion resistance , ensure durability under extreme conditions Their high tensile strength and strength enhance the reliability of the structures, while mechanical practicality and ease of manufacture. These sheets and plates remain stable and durable under stress, providing longevity. In addition, the cost-effectiveness and compatibility of heat treatments provides assets tailored to specific industrial applications, resulting in versatile and reliable products.
Stainless Steel 422 Sheets and Plates are frequently utilized in environments that experience high temperatures and significant stress. In the aerospace and power generation industries, they are perfect for turbine blades, rotors, valves, and other components that operate in hot sections. Their strength and resistance to oxidation make them ideal for use in industrial furnaces and heat treatment equipment. Moreover, they find applications in petrochemical processing for parts that are subjected to heat and pressure. Stainless Steel 422 is also highly regarded in mechanical engineering, where resistance to wear, thermal fatigue, and creep is essential, ensuring reliable performance and a long service life even in extreme conditions.
