Hassan Sheets and Plates is a reputable manufacturer and supplier of top-notch Titanium Sheets and Plates based in Riyadh, Saudi Arabia. With a strong dedication to quality, the company provides products that adhere to international standards, serving various industries like aerospace, marine, chemical processing, and power generation. Their Titanium Sheets and Plates are celebrated for their outstanding durability, impressive strength-to-weight ratio, and remarkable resistance to corrosion. Supported by state-of-the-art manufacturing facilities and a talented team, Hassan Sheets and Plates guarantees dependable performance and a long lifespan for a wide range of industrial applications.
These Titanium Sheets and Plates are mainly made of titanium, with small amounts of elements such as aluminum and vanadium depending on the specific grade. They boast exceptional corrosion resistance, great strength, and low density, making them perfect for applications where weight is a concern. On a mechanical level, they offer high tensile and yield strength, excellent fracture toughness, and the ability to endure extreme temperatures. Their non-magnetic properties and biocompatibility further increase their usefulness in specialized industrial and medical fields.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

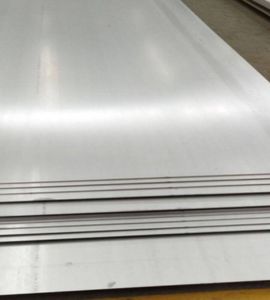

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

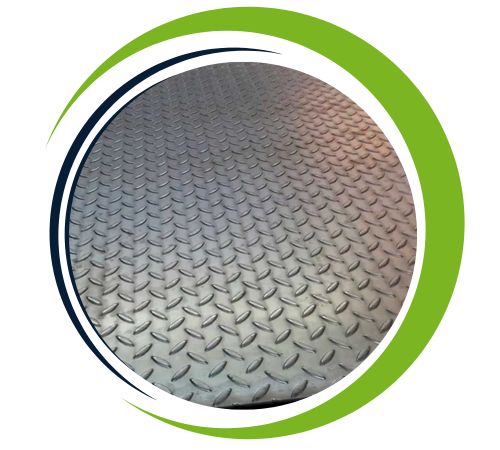

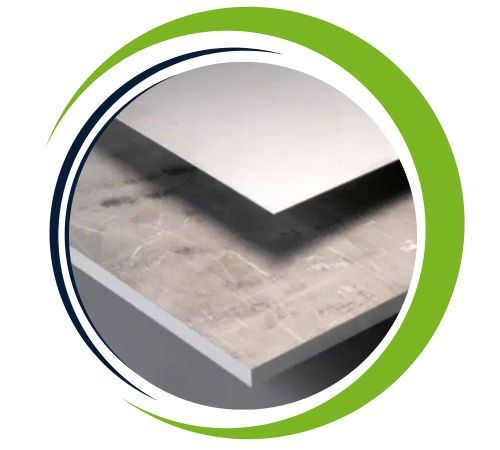

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. | |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| 6Al-4V TITANIUM SHEET SIZES | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .016 | 36 x 96 | 8.8 | ||||
| .020 | 36 x 96 | 11.0 | ||||
| .025 | 36 x 96 | 13.8 | ||||
| .032 | 36 x 96 | 17.7 | ||||
| .040 | 36 x 96 | 22.1 | ||||
| .050 | 36 x 96 | 27.7 | ||||
| .063 | 36 x 96 | 34.9 | ||||
| .071 | 36 x 96 | 39.3 | ||||
| .080 | 36 x 96 | 44.2 | ||||
| .090 | 36 x 96 | 49.8 | ||||
| .100 | 36 x 96 | 55.3 | ||||
| .125 | 36 x 96 | 69.1 | ||||
| .160 | 36 x 96 | 88.5 | ||||
| .187 | 36 x 96 | 103.4 | ||||
| CP GRADE 2 TITANIUM SHEET | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .020 | 48 x 120 | 18.8 | ||||
| .028 | 48 x 120 | 26.3 | ||||
| .035 | 48 x 120 | 32.9 | ||||
| .040 | 48 x 120 | 37.6 | ||||
| .050 | 48 x 120 | 46.9 | ||||
| .063 | 48 x 120 | 59.1 | ||||
| .078 | 48 x 120 | 73.2 | ||||
| .093 | 48 x 120 | 87.3 | ||||
| .125 | 48 x 120 | 117.4 | ||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium sheets and plates offer exceptional strength-to-weight ratio, making them ideal for lightweight yet strong applications. They exhibit excellent corrosion resistance in aggressive environments like seawater and chemicals. Titanium also has high-temperature resistance, ensuring performance in extreme conditions. Its biocompatibility makes it suitable for medical and aerospace applications. Furthermore, titanium is non-magnetic, has low thermal expansion, and is highly durable with a long service life. Its versatility, excellent weldability, and formability make titanium sheets and plates a preferred choice across various industries.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
In the aerospace industry, Titanium Sheets and Plates are extensively used for airframes, engines, and essential structural components due to their impressive strength-to-weight ratio. In the marine sector, they are favored for shipbuilding, offshore platforms, and desalination plants because of their corrosion resistance in seawater. The chemical industry employs them for reactors, heat exchangers, and process equipment. Moreover, they find applications in medical implants, surgical instruments, automotive parts, and power plants, providing long-lasting performance, safety, and durability in highly demanding environments.
