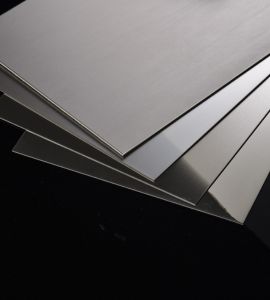

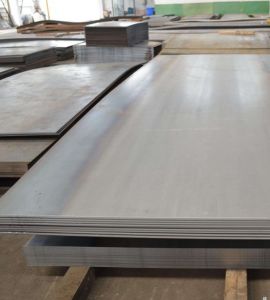

Hassan Sheets and Plates stands out as a top-notch manufacturer and supplier of Stainless Steel 347 Sheets and Plates in Riyadh, Saudi Arabia. They pride themselves on delivering high-quality products that are specifically designed to thrive in high-temperature and corrosive environments. Stainless Steel 347 is a niobium-stabilized austenitic stainless steel, known for its remarkable resistance to intergranular corrosion and its outstanding performance even when exposed to heat for extended periods. With a commitment to precise engineering and adherence to global standards, Hassan Sheets and Plates ensures that their SS 347 Sheets and Plates are incredibly reliable for various industries, including chemical, petrochemical, aerospace, and power generation, where strength, durability, and longevity are crucial.
The composition of Stainless Steel 347 Sheets and Plates includes chromium (17–19%), nickel (9–13%), and niobium for stabilization, along with iron and trace amounts of carbon, manganese, and silicon. This specific blend helps prevent carbide precipitation during welding and boosts resistance to sensitization. On the mechanical side, SS 347 boasts excellent tensile and yield strength, good creep and stress rupture resistance, and impressive toughness at both high and low temperatures, making it ideal for continuous high-temperature applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

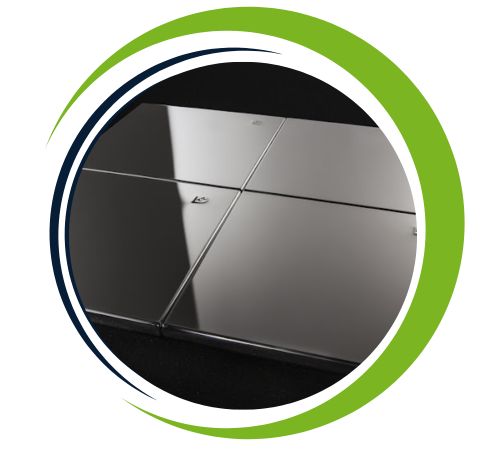

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

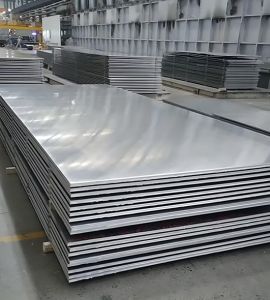

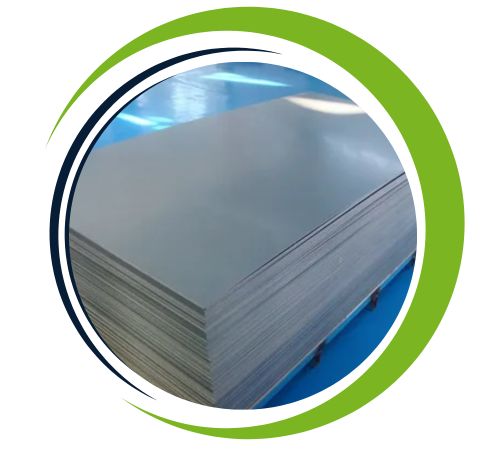

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

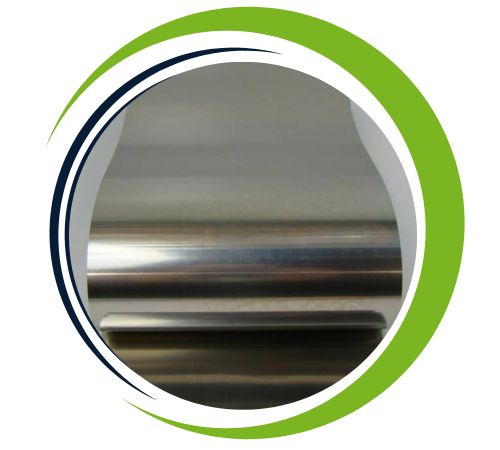

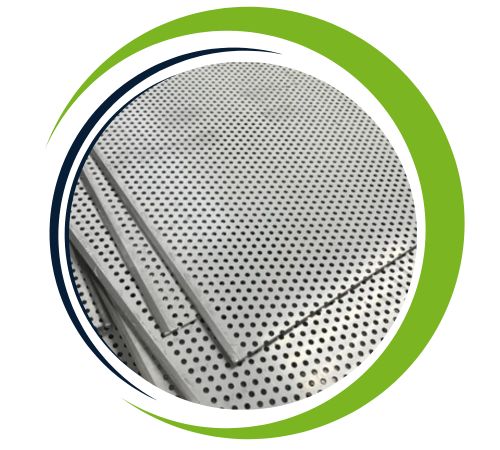

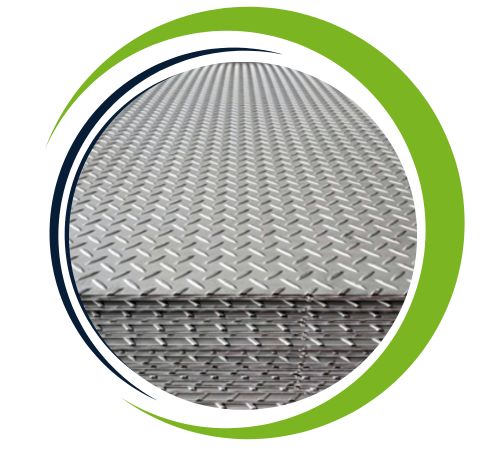

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|

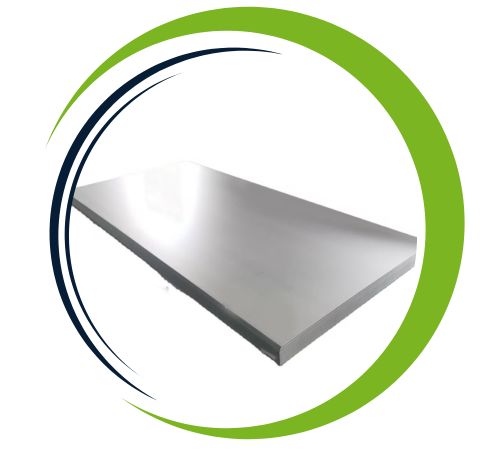

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347 sheets and plates offer several advantages, including excellent resistance to intergranular corrosion, making them ideal for high-temperature applications The addition of niobium stabilizes the material and provides carbide precipitation a resistance is high, especially in the welded state. It provides excellent oxidation and scaling resistance at high temperatures, making it suitable for environmental applications such as chemical processing, power generation, aerospace industries etc. Stainless steel 347 with strength a outstanding, durable and corrosion resistance ensure long-term performance in extreme conditions, reduce maintenance costs and extend component life.
These Stainless Steel 347 Sheets and Plates find extensive use in the chemical and petrochemical sectors for reactors, pressure vessels, and piping systems that come into contact with aggressive chemicals. In the power generation field, they are utilized in boiler tubes, heat exchangers, and superheaters. The aerospace industry also relies on them for exhaust systems, turbine components, and engine parts that require exceptional heat resistance. Additionally, they are used in food processing, furnace parts, and pharmaceutical equipment, providing outstanding durability, corrosion resistance, and dependable performance in demanding environments.
