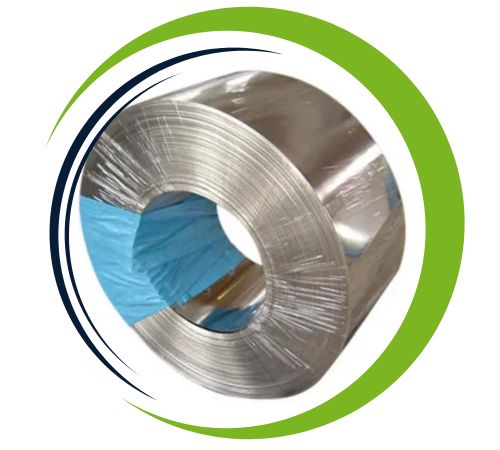

Hassan Sheets and Plates is a reliable manufacturer and supplier of Nickel Alloy 200 Foils based in Riyadh, Saudi Arabia. They’re known for providing top-notch nickel products that stand out due to their remarkable purity, corrosion resistance, and ductility. Nickel Alloy 200 is a commercially pure wrought nickel that performs exceptionally well in both reducing and alkaline environments, making it a go-to choice for demanding industrial applications. With a commitment to precision rolling and rigorous quality control, Hassan Sheets and Plates delivers Nickel Alloy 200 Foils that not only meet international standards but also serve various industries, including chemical processing, electronics, marine, and food handling.
These Nickel Alloy 200 Foils are made up of 99.6% pure nickel, with small amounts of copper, iron, manganese, and silicon that boost their strength and stability. This high-purity makeup provides excellent resistance to caustic alkalis, neutral salts, and reducing agents. On the mechanical side, Nickel Alloy 200 Foils boast a tensile strength of around 380 MPa, a yield strength of 105 MPa, and impressive elongation, ensuring they are both formable and ductile. They also excel in electrical and thermal conductivity, making them ideal for specialized industrial uses.
Specifications : ASTM B168 / ASME SB168
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm
Form : Foils, Rolls
Thickness : 0.1mm to 12 mm Thk
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated)
Other services : Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 foils offer excellent corrosion resistance, especially in alkalis, acids, and various chemicals, making them ideal for harsh environments. Known for their high thermal and electrical conductivity, these foils are widely used in applications like electrical components and heat exchangers. They possess outstanding mechanical properties, including strength and flexibility, allowing easy fabrication. Additionally, Nickel Alloy 200 foils exhibit good weldability and formability, making them suitable for various industrial applications, including aerospace, chemical processing, and marine environments. Their stability at elevated temperatures further enhances their reliability.
In the chemical and petrochemical sectors, Nickel Alloy 200 Foils are commonly used for lining equipment, handling caustic soda, and in reactors. The electronics industry utilizes them for battery components, connectors, and shielding materials thanks to their superb conductivity. In the marine field, they find applications in desalination and seawater equipment, while the food industry benefits from their resistance to organic acids, ensuring safe food processing. With their unique blend of purity, strength, and corrosion resistance, Nickel Alloy 200 Foils are a vital material for critical applications across a range of industries.
