Hassan Sheets and Plate, based in Riyadh, Saudi Arabia, is a well-respected manufacturer and supplier of top-quality metal products designed to thrive in extreme conditions. One of their standout offerings is **Inconel Sheets and Plates**, a series of nickel-chromium superalloys celebrated for their remarkable resistance to heat, corrosion, and oxidation. These materials are perfect for tough environments like aerospace, marine, chemical processing, and power generation. Hassan Sheets and Plate provides Inconel products that adhere to international quality standards, ensuring clients receive dependable, high-performance materials that are crucial for applications where strength and durability are non-negotiable.
**Inconel Sheets and Plates** mainly consist of nickel (up to 72%) and chromium (14–21%), with varying amounts of iron, molybdenum, niobium, and cobalt depending on the specific grade (like Inconel 600, 625, 718). These alloys boast excellent high-temperature strength, oxidation resistance, and resistance to stress-corrosion cracking. Their mechanical properties include tensile strength ranging from 690–1,200 MPa and impressive creep resistance. Inconel maintains its structural integrity in environments exceeding 1000°C, making it a reliable choice for high-pressure and high-heat applications in corrosive settings.

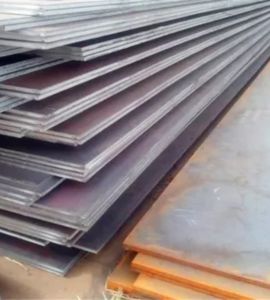

Specifications :ASTM B168, ASME SB168, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm

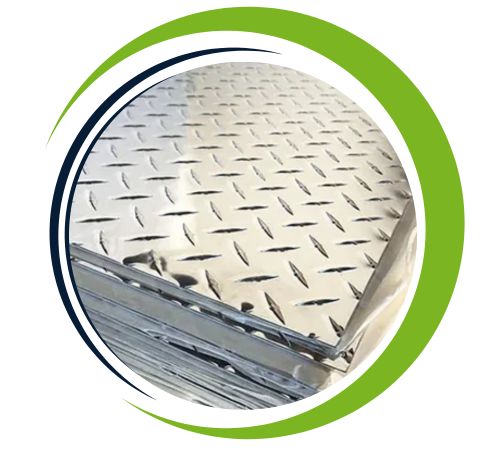

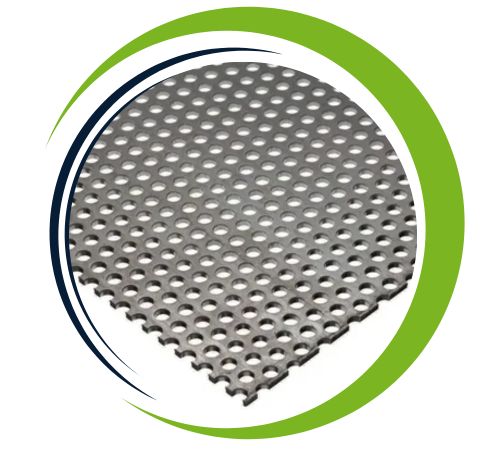

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
| Density | 8.4 g/cm³ | 8.1g/cm³ | 8.4 g/cm³ | 8.2 g/cm³ |
| Melting Range,℃ | 1370-1425 ℃ | 1320-1370℃ | 1290-1350℃ | 1260-1340 ℃ |
| Elongation % | 30min. | 30 min. | 30 min. | 30 min. |
| Tensile strength – Mpa | 550min. | 650min. | 760min. | 965min |
| Yield strength – Mpa | 240min. | 300min. | 345min. | 550 min. |
| Brinell hardness (HB) | ≤195 | ≤220 | ≤220 | ≤363 |
| Alloy 600 | Inconel 600 | N06600 | 2.4816 | 8.42 |
| Alloy 601 | Inconel 601 | N06601 | 2.4851 | 8.2 |
| Alloy 625 | Inconel 625 | N06625 | 2.4856 | 8.44 |
| Alloy 718 | Inconel 718 | N07718 | 2.4668 | 8.19 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel sheets and plates offer several key advantages, making them ideal for high-performance applications. Their exceptional resistance to oxidation, corrosion, and heat ensures long-term durability in extreme environments, such as high-temperature industrial processes and aerospace components. Inconel maintains its strength and integrity at elevated temperatures, making it ideal for gas turbines, reactors, and exhaust systems. Additionally, these materials exhibit excellent fatigue and thermal-fatigue strength, along with good weldability and formability. Their versatility and reliability make Inconel a preferred choice in industries requiring superior material performance under harsh conditions.
Yes, we offer custom sizes for Inconel Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Inconel | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Inconel | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Inconel | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Inconel | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Inconel | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Inconel | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Inconel | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Inconel | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Inconel | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Inconel | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Inconel | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Inconel | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Inconel | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Inconel | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Inconel | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Inconel | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
**Inconel Sheets and Plates** find extensive use in industries such as aerospace for turbine blades, exhaust systems, and heat shields, thanks to their exceptional high-temperature strength. In the chemical and petrochemical sectors, they are utilized in reactors, heat exchangers, and piping systems that handle aggressive fluids. Inconel is also vital in marine engineering, nuclear reactors, and power plants, where resistance to oxidation, pressure, and thermal stress is essential. Its reliability and performance in extreme conditions make it a must-have for structural and pressure-retaining components in the harshest environments.
