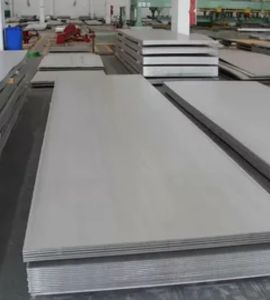

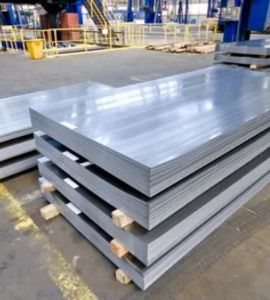

Hassan Sheets and Plates stands out as a top-notch manufacturer and supplier of Stainless Steel 316Ti Sheets and Plates in Riyadh, Saudi Arabia. They specialize in delivering high-quality stainless steel solutions tailored for industries that demand exceptional heat resistance and corrosion protection. The Stainless Steel 316Ti is a titanium-stabilized variant of SS 316, specifically engineered to avoid carbide precipitation during welding and to boost performance in high-temperature settings. With a commitment to precision engineering and adherence to international standards, Hassan Sheets and Plates offers SS 316Ti Sheets and Plates that are perfect for the petrochemical, chemical, marine, and power generation sectors, where durability, reliability, and longevity are crucial.
These Stainless Steel 316Ti Sheets and Plates mainly consist of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium for stabilization, with iron making up the rest, along with trace amounts of carbon, manganese, and silicon. The addition of titanium helps prevent sensitization, ensuring excellent weldability and long-term stability even in high-temperature applications. On the mechanical side, SS 316Ti boasts impressive tensile and yield strength, outstanding toughness, and good creep resistance, allowing it to perform well in harsh and elevated temperature environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

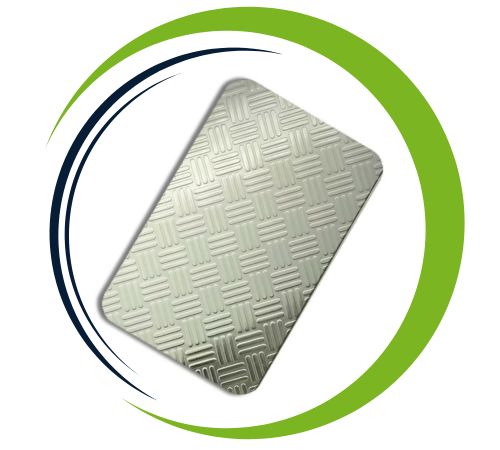

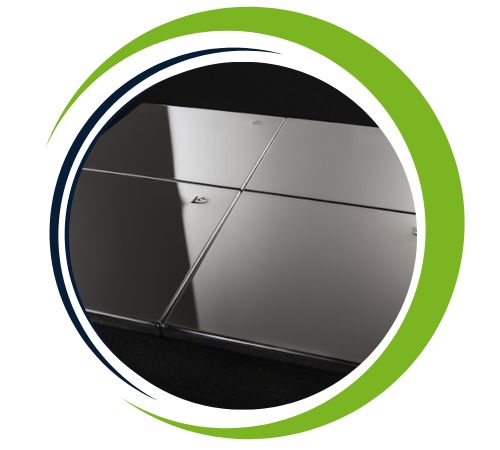

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

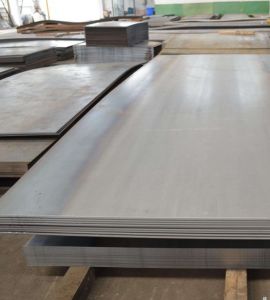

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

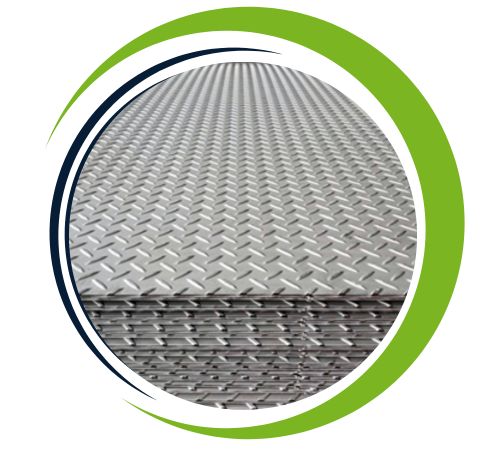

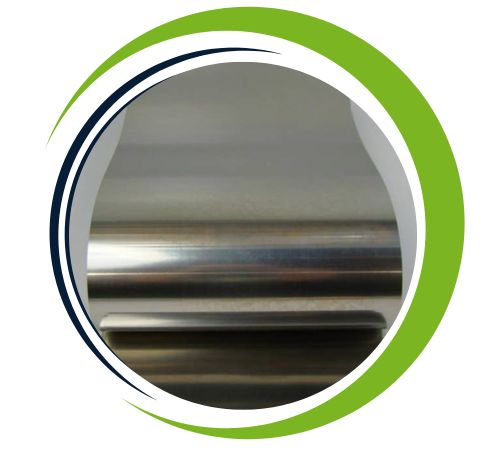

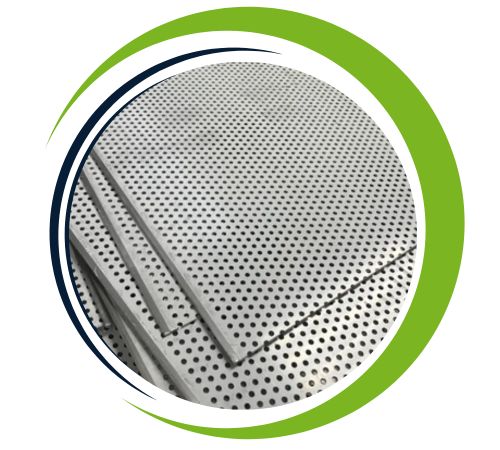

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316Ti sheets and plates offer exceptional advantages, including resistance to pitting, crack corrosion and excellent intergranular corrosion even at elevated temperatures The addition of titanium ensures stability against carbide precipitation, making it more difficult in rough environments. These sheets are strong, have excellent high-temperature strength and mechanical performance, making them ideal for complex applications. They resist oxidation and scaling, providing durability in marine, chemical and industrial applications. In addition, they are easy to manufacture, weld and maintain, providing cost effective and reliable for structural and process equipment applications.
You’ll find Stainless Steel 316Ti Sheets and Plates widely utilized in the chemical and petrochemical industries for reactors, heat exchangers, and storage tanks that come into contact with corrosive substances. In the marine industry, they are used for seawater piping, shipbuilding, and offshore platforms thanks to their superior resistance to chlorides. Power generation facilities incorporate them into boilers, superheaters, and piping systems, while the food and pharmaceutical sectors rely on them for hygienic and sterile processing equipment. These sheets and plates deliver remarkable durability, corrosion resistance, and heat stability, ensuring they last for the long haul.
