Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, proudly offers top-notch **Incoloy Sheets and Plates** that stand out for their exceptional corrosion resistance and impressive strength at high temperatures. These Incoloy alloys are specifically designed to thrive in tough environments where heat, acids, and seawater are present. At Hassan, we provide a diverse selection of Incoloy grades, including **Incoloy 800, 825, 925**, and more, all available in a variety of sizes and thicknesses. We cater to industries such as chemical processing, oil & gas, power generation, and marine engineering throughout Saudi Arabia and the GCC, delivering reliable and high-performance materials.
Our Incoloy Sheets and Plates are crafted from **nickel-iron-chromium-based alloys**, with specific grades incorporating elements like **molybdenum, copper, and titanium** to boost their resistance to corrosion and oxidation. For instance, **Incoloy 825** features **Ni (38–46%), Fe (balance), Cr (19.5–23.5%), Mo (2.5–3.5%), and Cu (1.5–3%)**, which grants it remarkable resistance to sulfuric and phosphoric acids. These plates generally provide **tensile strengths ranging from 550–800 MPa**, along with high thermal stability and excellent weldability, making them perfect for pressure vessels and heat exchangers in demanding service conditions.
| Specifications: | ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443 |
| Thickness: | 4 mm To 100 mm |
| Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required |
| Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required |
| Grade | 800/ 800H/ 800HT/ 825 |
| Application | Building industry,architectural decoration,elevators,building doors,panels and so on. |
| Standard: | ASTM，AISI，JIS，GB， DIN，EN |
| Surface: | BA，2B，NO.1，NO.4，4K，HL，8K |
| Certification: | ISO, SGS，BV |
| Technique: | Cold Rolled Hot Rolled |

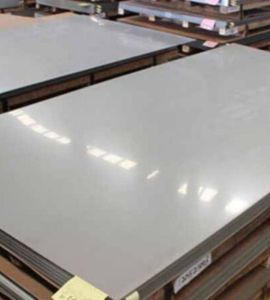

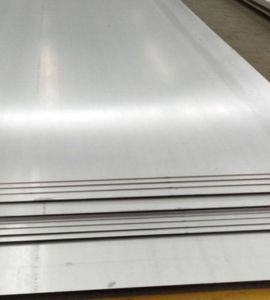

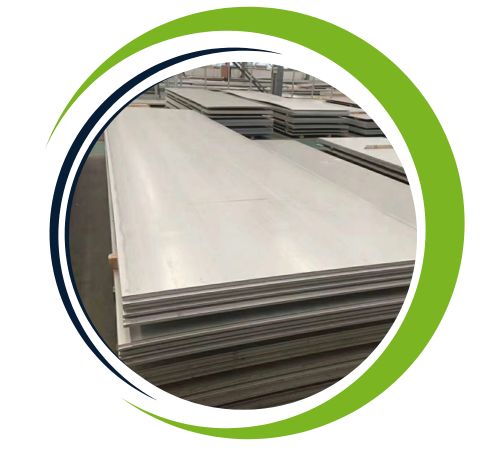

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

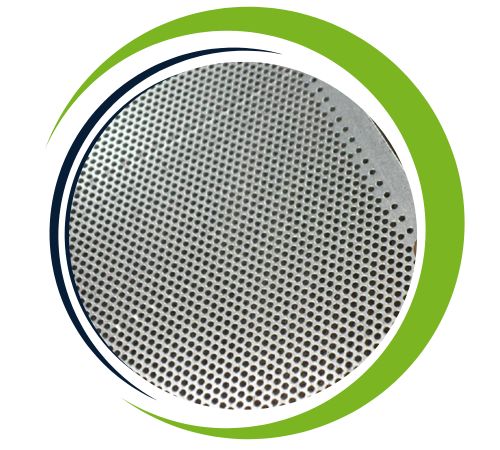

| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 825 | 1.4876 | N08825 | 协袩703 | NFE30C20DUM | NCF 825 | NA 16 | NiCr21Mo | XH38BT |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Incoloy Sheets and Plates offer several advantages, including excellent resistance to oxidation, carburization, and corrosion in high-temperature and aggressive environments. Their superior strength and durability make them ideal for use in industries such as chemical processing, power generation and aerospace. Incoloy alloys also exhibit excellent resistance to thermal-fatigue and stress-corrosion cracking, ensuring long-term performance. The materials are highly resistant to acidic and alkaline solutions, providing reliable service in harsh environments. Additionally, Incoloy Sheets and Plates offer good weldability and formability, making them versatile for various applications requiring durability, high strength, and heat resistance.
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |

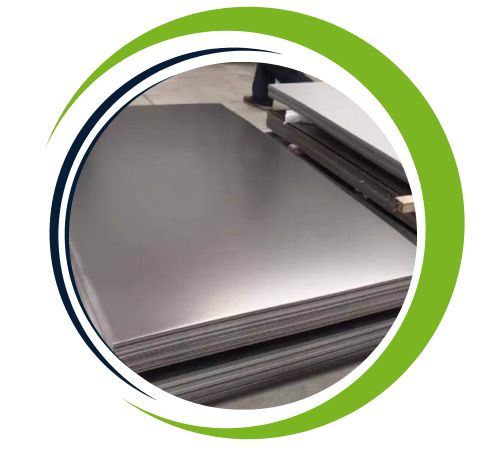

| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
Incoloy Sheets and Plates are widely used in high-temperature and corrosive environments. They are commonly found in the chemical processing industry for components like heat exchangers, reactor vessels, and piping systems. In power generation. Incoloy is used for turbine blades, boiler components and furnace parts due to its excellent resistance to heat and oxidation. Aerospace applications also rely on Incoloy for engine parts and exhaust systems. Additionally, Incoloy Sheets and Plates are used in petrochemical industries, marine environments and other industrial sectors requiring materials that withstand harsh conditions and extreme temperatures.
