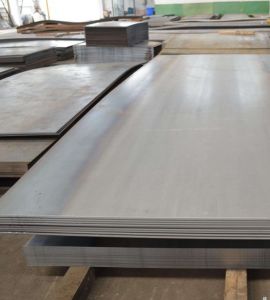

Hassan Sheets and Plates is a top-notch manufacturer and supplier located in Riyadh, Saudi Arabia, focusing on high-performance stainless steel products, particularly Stainless Steel 440C Sheets and Plates. Known for their precision, quality, and prompt delivery, Hassan caters to a variety of industries, including aerospace, defense, tooling, and manufacturing. Stainless Steel 440C stands out for its remarkable hardness, wear resistance, and strength, making it perfect for high-stress and high-precision applications. Hassan offers customized solutions that meet international standards, ensuring reliability and performance for customers both in Saudi Arabia and around the globe.
Stainless Steel 440C Sheets and Plates are made from high-carbon martensitic stainless steel, containing about 16–18% chromium and 0.95–1.20% carbon. This unique blend gives it excellent hardness and wear resistance after heat treatment. On the mechanical side, 440C boasts a tensile strength of up to 760 MPa, a yield strength of around 450 MPa, and a Rockwell hardness rating of up to 60 HRC. While it may not be as corrosion-resistant as austenitic grades, it holds up well in mildly corrosive environments. Plus, it maintains good dimensional stability, making it a great choice for precision components that need high strength and surface integrity.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 440C | min. max. | 0.95 1.20 | – 1 | – 1 | – 0.04 | – 0.030 | 16.00 18.00 | – 0.75 | – | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
| Grade | WERKSTOFF NR. | UNS |
| SS 440C | 1.4125 | S44004 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) | Thermal Conductivity(W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| 0-100°C | 0-200°C | 0-600°C | at 100°C | at 500°C | |||||
| 440 C | 7650 | 200 | 10.1 | 10.3 | 11.7 | 24.2 | – | 460 | 600 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 440C Sheet and Plates offers many advantages in paper and plate form. It is known for its high durability, which makes it ideal for applications that require damage resistance such as nails, bearings and valves. It has excellent corrosion resistance, especially in water and chemical environments. 440C also provides excellent strength and stability, maintaining its mechanical properties even at elevated temperatures. Furthermore, it is easily machined and manufactured, making it a standard method for precision manufacturing in industries including automotive, aerospace and medical.
Stainless Steel 440C Sheets and Plates find their way into applications where hardness, strength, and wear resistance are essential. In the aerospace and defense sectors, they’re used for valve components, bearings, and high-stress mechanical parts. In tooling and manufacturing, they shine in the production of dies, cutting tools, and molds. Medical and surgical instruments also take advantage of 440C’s edge retention and durability. Although it’s not the best fit for highly corrosive environments, 440C performs well in mild atmospheres, making it a reliable choice for high-performance components that require a long service life and resistance to mechanical stress.
