Hassan Sheets and Plates is a reputable manufacturer and supplier located in Riyadh, Saudi Arabia, providing a top-notch range of stainless steel products, including Stainless Steel 348 Sheets and Plates. Renowned for their precision, quality, and commitment to international standards, Hassan caters to essential industries like aerospace, petrochemical, power generation, and thermal processing. Stainless Steel 348 is an austenitic stainless steel that’s stabilized with niobium, known for its remarkable resistance to intergranular corrosion and outstanding performance in high-temperature settings. Hassan offers customized sheet and plate solutions tailored to meet the demanding needs of modern industrial applications, both locally and internationally.
The composition of Stainless Steel 348 Sheets and Plates includes iron, 17–20% chromium, 8–11% nickel, and niobium (columbium) for stabilization. This blend boosts resistance to intergranular corrosion, particularly after welding, while also maintaining mechanical strength at higher temperatures. The alloy boasts a tensile strength ranging from 515 to 750 MPa, a yield strength of about 205 to 350 MPa, and an elongation of roughly 35 to 40%. It also retains excellent toughness, weldability, and oxidation resistance, making it a dependable choice for demanding applications that involve heat and stress.

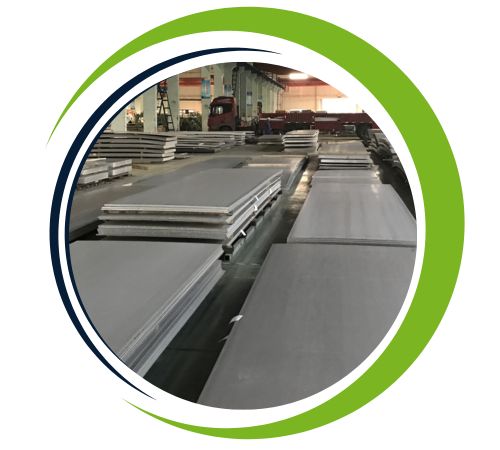

| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

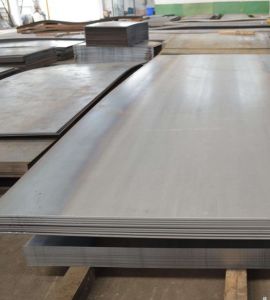

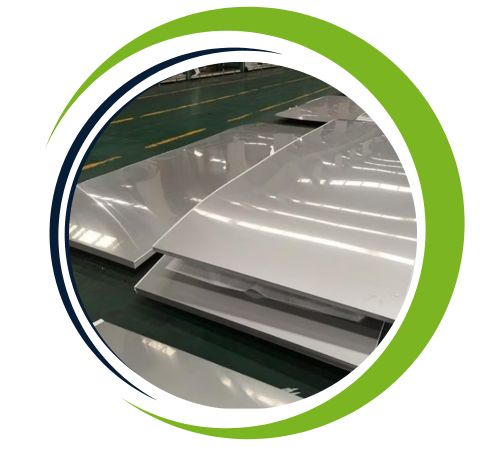

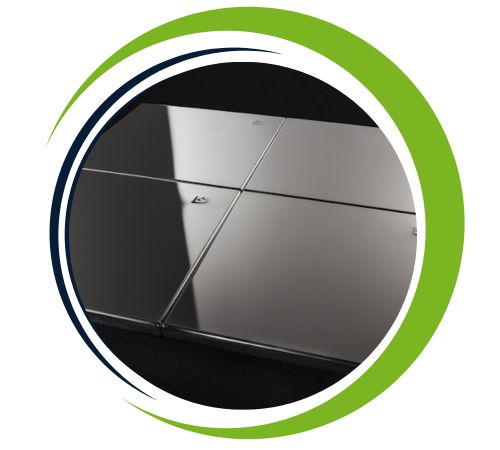

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Mn | P | C | S | Cr | Si | Ni | Fe | Co |
| SS 348 | 2.0 | 0.045 | 0.080 | 0.030 | 19 | 1.0 | 11 | 66 | 0.2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 348 | 1.4550 | S34800 |
| Material | Size | Thickness |

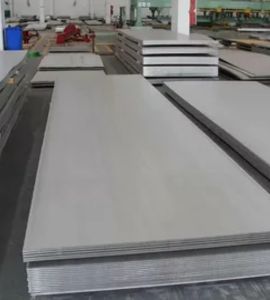

| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 348 Sheet and Plates offers many advantages, including exceptional resistance to intergranular corrosion, especially in welded structures, increased durability through its excellent oxidation and scaling resistance to heat transfer 1600°F (870°C) internals, ideal for high temperature internals. The alloy’s high strength, excellent formability and weldability make it suitable for a variety of applications. Stainless steel 348 is also corrosion resistant in harsh environments, ensuring durability and reliability. Its resistance to thermal expansion and hardening makes it desirable for applications in the aerospace, chemical and electrical industries.
Stainless Steel 348 Sheets and Plates find extensive use in high-temperature and corrosive environments. Common applications include heat exchangers, boiler and superheater tubes, pressure vessels, and welded reactor components in the chemical and petrochemical sectors. They’re also well-suited for parts in power plants, aerospace systems, and exhaust manifolds. Thanks to their resistance to sensitization and impressive thermal stability, 348 sheets and plates are perfect for welded structures that are exposed to prolonged heat, ensuring a long service life and reliable performance even under extreme conditions.
