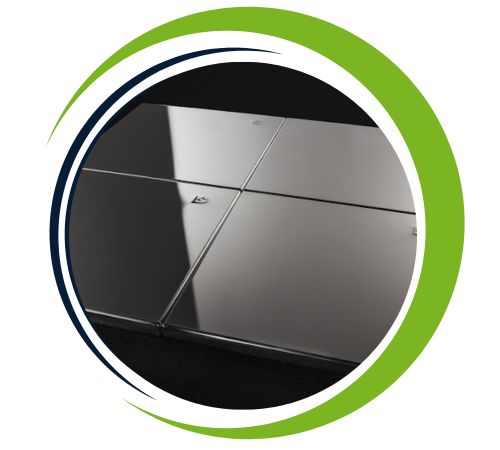

Hassan Sheets and Plates is a reputable manufacturer and supplier of Stainless Steel 321H Sheets and Plates based in Riyadh, Saudi Arabia. They pride themselves on delivering top-notch products designed for high-temperature and corrosive environments. Stainless Steel 321H is essentially the high-carbon variant of SS 321, enhanced with titanium to offer remarkable resistance to intergranular corrosion and improved strength at elevated temperatures. With a commitment to precise manufacturing and strict adherence to international standards, Hassan Sheets and Plates provides SS 321H Sheets and Plates that are perfect for industries like petrochemical, chemical, aerospace, and power generation, where durability, strength, and longevity are crucial.
These Stainless Steel 321H Sheets and Plates mainly consist of chromium (17–19%), nickel (9–13%), and titanium for stabilization, along with a higher carbon content compared to SS 321. The rest is iron, with trace amounts of manganese, silicon, and carbon. This increased carbon content boosts creep strength and performance at high temperatures. On the mechanical side, SS 321H boasts excellent tensile and yield strength, outstanding resistance to stress rupture, and toughness even in extreme temperatures, ensuring reliability in harsh operating conditions.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

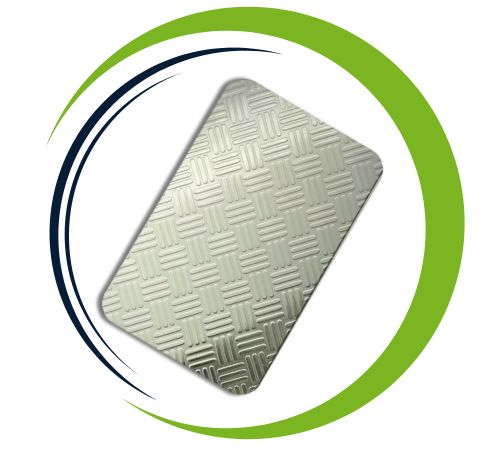

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

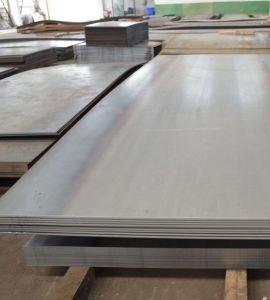

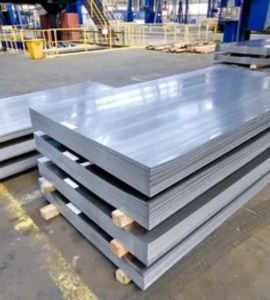

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

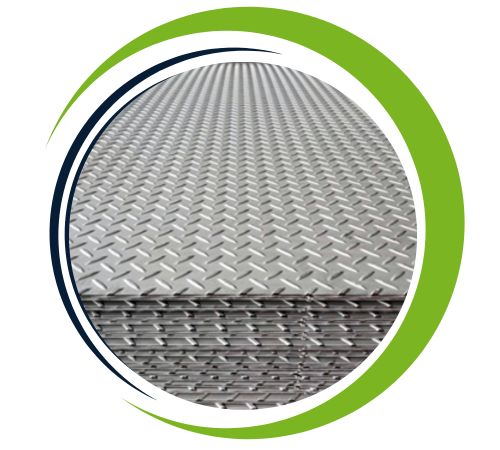

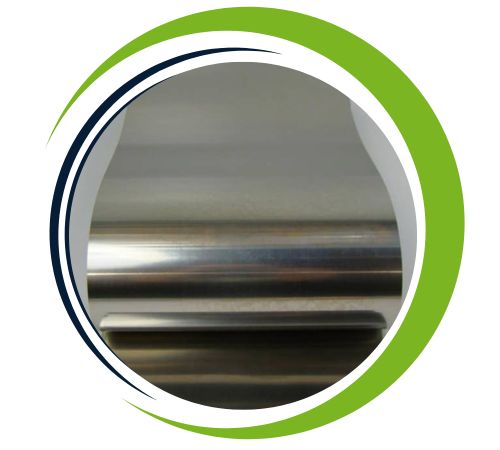

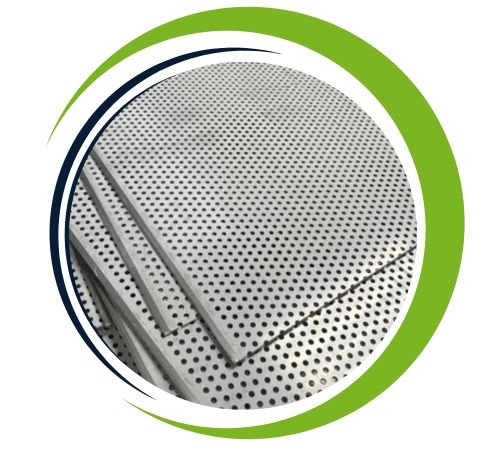

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
| Material | Size | Thickness |

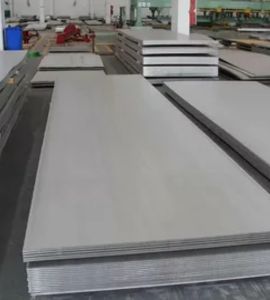

| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 321H sheets and plates provide excellent corrosion resistance, especially in high-temperature environments. They are extremely durable, resistant to oxidation, and are curing up to 870°C (1600°F). The intergranular corrosion resistance makes them ideal for welding-related applications. The stability of the composite is enhanced by the addition of titanium, which helps prevent carbide precipitation. Stainless steel 321 is also known for its durability, durability and ability to maintain structural integrity under extreme conditions. These properties make it suitable for industries such as aerospace, chemical and power generation.
You’ll find Stainless Steel 321H Sheets and Plates commonly used in power generation plants for applications like boiler tubes, heat exchangers, and superheaters, thanks to their impressive strength at high temperatures. In the chemical and petrochemical sectors, they’re utilized in pressure vessels, reactors, and piping systems that handle corrosive substances. In aerospace, they’re found in exhaust manifolds, engine components, and structural parts that endure prolonged heat. Additionally, they’re used in food processing, furnace components, and pharmaceutical equipment, providing exceptional durability, corrosion resistance, and consistent performance in challenging environments.
