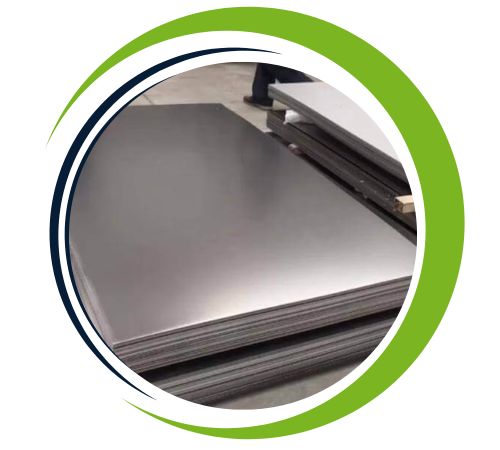

Hassan Sheets and Plate, based in Riyadh, Saudi Arabia, stands out as a trusted manufacturer and supplier of top-notch metal products designed for tough industrial applications. One of their standout offerings is **Hastelloy X Sheets and Plates**, a nickel-based alloy celebrated for its remarkable high-temperature strength, resistance to oxidation, and ease of fabrication. Built to endure extreme thermal and mechanical stress, Hastelloy X finds its place in industries like aerospace, power generation, and chemical processing. At Hassan Sheets and Plate, every product is crafted to meet international standards, ensuring that they deliver durable, precision-engineered materials that can handle the harshest environments and critical performance demands.
**Hastelloy X Sheets and Plates** are made up of nickel (around 47%), chromium (about 22%), iron (roughly 18%), molybdenum (approximately 9%), along with small amounts of cobalt and tungsten. This alloy is known for its exceptional resistance to oxidation and retains its strength and ductility even at temperatures soaring up to 1200°C. With a tensile strength ranging from about 760 to 860 MPa, it also boasts impressive creep resistance. Additionally, Hastelloy X is recognized for its excellent weldability and resistance to stress-corrosion cracking, making it a perfect choice for components that face high heat and corrosive environments.
Specifications :ASTM B435 / ASME SB435
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness : Ranging from 0.3mm to 20mm
Hardness : As per ASME A & NACE MR 175

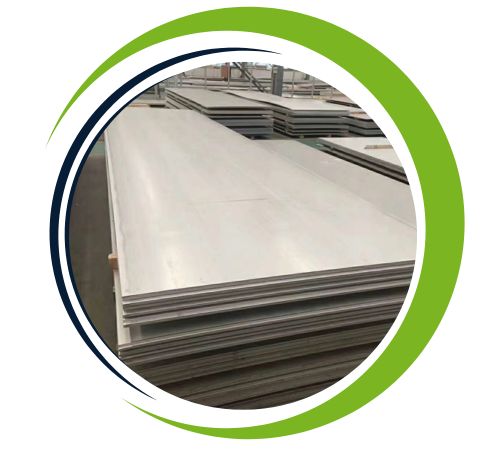

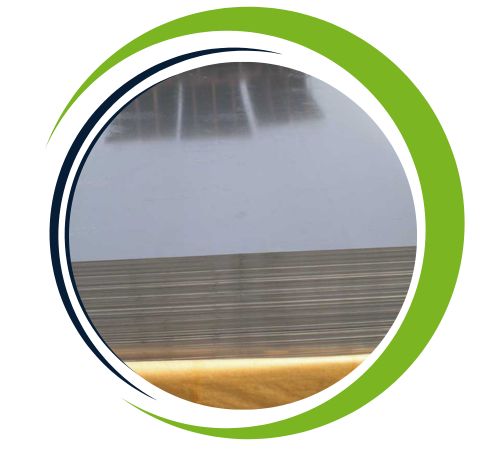

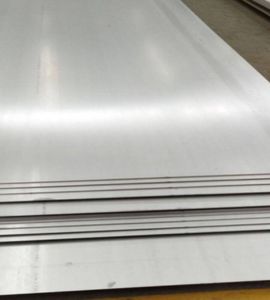

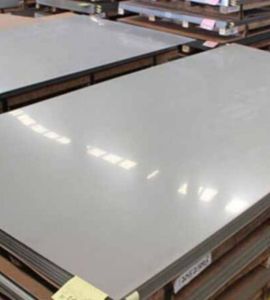

Finish : Hot rolled plate (HR), Cold rolled sheet (CR)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | 0.50 max | 0.5-2.5 | Remainder | 20.5 – 23 | 17 – 20 | 8 – 10 | 0.15 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm3 | 1355°C (2470°F) | 95 KSI min (655 MPa min) | 35 KSI min (240 MPa min) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy X sheets and plates offer significant advantages, particularly in high-temperature applications. Known for their excellent resistance to oxidation and corrosion, they perform exceptionally well in extreme environments, such as gas turbines, aerospace components, and high-temperature chemical processing. With outstanding strength and thermal-fatigue resistance they maintain their structural integrity under fluctuating temperatures. Additionally, Hastelloy X provides superior weldability and formability, making it easy to fabricate into complex shapes. Its durability and long service life in harsh conditions reduce maintenance costs making it a preferred material for critical industrial applications that demand reliability and performance.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
| 3/16 inches | Hastelloy X | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy X | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy X | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy X | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy X | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy X | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy X | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy X | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy X | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy X | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy X | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy X | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy X | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy X | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy X | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy X | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
In the aerospace sector, **Hastelloy X Sheets and Plates** are frequently used in combustion chambers, tailpipes, and afterburner components due to their ability to withstand intense heat. In industrial gas turbines and power plants, they serve as high-temperature ducting and structural components. The chemical processing industry relies on them for reactors and heat exchangers that deal with aggressive gases and elevated temperatures. Furthermore, Hastelloy X is utilized in furnace components and petrochemical applications where outstanding strength, oxidation resistance, and thermal stability are crucial for safe and long-lasting performance.
