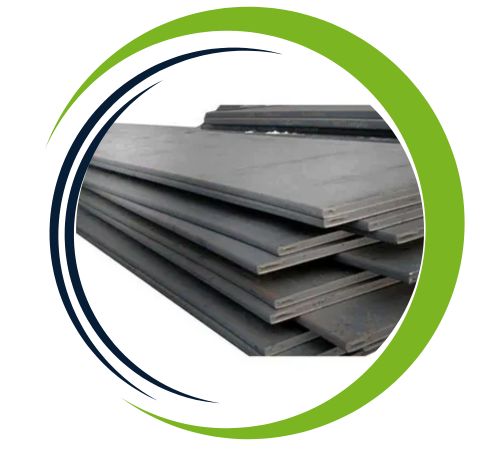

Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, proudly offers premium **Boiler Quality Sheets and Plates**. These products are specifically crafted for pressure-bearing applications, including boilers, heat exchangers, and pressure vessels. Our plates are built to endure high temperatures and internal pressures, ensuring both safety and durability in critical environments. At Hassan, we provide boiler quality plates in a variety of grades, sizes, and thicknesses, all in line with international standards to meet the needs of industries throughout Saudi Arabia and the GCC.
Typically made from **carbon steel with carefully controlled levels of sulfur, phosphorus, and other elements**, our Boiler Quality Sheets and Plates boast impressive **tensile strength (usually between 450–620 MPa)**, excellent weldability, and remarkable notch toughness. We adhere to common standards such as **ASTM A516 Grade 60/70, IS 2002, and EN 10028**, which guarantee resistance to pressure, temperature changes, and corrosion in steam-generating systems.
| Thickness | 3 mm to 200 mm |
| Width | 1250mm to 4000mm |
| Length | Up to 20,000 mm |
| Certification | DUAL CERTIFICATION [SA 516 GR. 60 / 70] TRIPLE CERTIFICATION. [SA 516 GR. 60 / 65 / 70] IBR AND NON IBR |
| Carbon | Manganese | Sulpher maximum | Phosphorus max | Silicon maximum | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 MM < t ≤ 200 MM | t < 200 MM | 12.5 MM < t =50 MM | t < 12.5 MM | 50 MM < t ≤ 100 MM | t 12s.5 MM | t < 12.5 MM | ||||
| A516 Gr 55 | 0.24 | 0.26 | 0.2 | 0.18 | 0.22 | 0.55-0.98 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 60 | 0.27 | 0.27 | 0.23 | 0.21 | 0.25 | 0.85-1.2 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 65 | 0.29 | 0.29 | 0.26 | 0.24 | 0.28 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 70 | 0.31 | 0.31 | 0.28 | 0.27 | 0.3 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Tensile strength (MPa) | Yield strength (MPa) | Tensile strength (ksi) | Elongation in 200 MM(%) | Yield strength (ksi) | Elongation in 50 MM(%) | |
|---|---|---|---|---|---|---|
| A516 Gr 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Gr 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Gr 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Gr 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | DIN 17155 | EN 10028-2 | ASTM | BS 1501 | JIS G3115 |
| 1.0425 | HII | P265GH | A 414 Gr. E / A 516 Gr. 60 | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | |
| 1.0345 | HI | P235GH | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | 161 Gr. 360 / 164 Gr. 360 | SPV 24 |
| 1.0473 | 19 Mn 6 | P355GH | A 414 Gr. G | SPV 36 | |
| 1.7383 | 11CrMo9-10 | ||||
| 1.0481 | 17 Mn 4 | P295GH | A 414 Gr. F / A 516 Gr. 65 | 224 Gr. 490 | SPV 32 |
| 1.7335 | 13CrMo 4 4 | 13CrMo4-5 | A 387 Gr. 12 | 620 Gr. 27 | |
| 1.5415 | 15 Mo 3 | 16Mo3 | A 204 Gr. B | 1503 – 243 B | |
| 1.738 | 10CrMo 9 10 | 10CrMo9-10 | A 387 Gr. 22 | 622 Gr. 31 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boiler Quality Sheets and Plates offer several advantages, including exceptional strength and durability, making them ideal for high-pressure and high-temperature applications. They are highly resistant to thermal fatigue, corrosion, and oxidation, ensuring a longer service life. These materials are specifically designed for use in boilers, pressure vessels, and heat exchangers, where safety and reliability are paramount. They also provide excellent weldability, formability, and ease of fabrication, making them versatile and dependable for critical applications.
| Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm |
|---|---|---|---|---|---|
| 2055 x 12100 | 8 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 20 | 2500 x 12000 | 3000 x 6000 | 60 | |
| 3000 x 12000 | 3460 x 14000 | 3000 x 6000 | 65 | ||
| 3460 x 14000 | |||||
| 2055 x 12100 | 18 | 2055 x 12100 | 6 | 2055 x 8000 | 50 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 3000 x 6000 | 55 | |||
| 4000 x 12000 | 2055 x 12100 | 12.5 | 3000 x 4000 | 90 | |
| 2500 x 12000 | 3460 x 14000 | ||||
| 2055 x 12000 | 25 | 3000 x 12000 | 3000 x 4000 | 100 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 4000 x 12000 | |||||
| 4000 x 12000 | 2055 x 12100 | 10 | 3000 x 6000 | 70 | |
| 3000 x 12000 | 4000 x 12000 | 3000 x 6000 | 80 | ||
| 2055 x 12100 | 22 | 3000 x 12000 | 3000 x 6000 | 75 | |
| 2500 x 12000 | |||||
| 2500 x 12000 | 3460 x 14000 | ||||
| 3460 x 14000 | |||||
| 2500 x 12000 | 2055 x 12100 | 15 | |||
| 2500 x 10000 | 4000 x 12000 | ||||
| 3000 x 12000 | |||||
| 3000 x 10000 | 2500 x 12000 | ||||
| 2055 x 12000 | 40 | 3460 x 14000 | |||
| 3000 x 10000 | |||||
| 2055 x 12100 | 13 | ||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 30 | 2500 x 12000 | |||
| 4000 x 12000 | |||||
| 2055 x 12000 | 35 | ||||
| 2055 x 12100 | 16 | ||||
| 4000 x 12000 | |||||
| 2500 x 10000 | 3000 x 12000 | ||||
| 2055 x 8000 | 45 | 2500 x 12000 | |||
| 3000 x 9000 | 3460 x 14000 |
Boiler Quality (BQ) Sheets and Plates are primarily used in industries that require high-strength materials for pressure vessels, boilers, and heat exchangers. These plates are designed to withstand high temperatures, pressure, and corrosive environments. Common applications include power plants, oil and gas refineries, chemical plants, and steam generation systems. The plates are also used in manufacturing pressure vessels, piping systems, and industrial equipment that demand high tensile strength, durability, and resistance to thermal and mechanical stresses.
