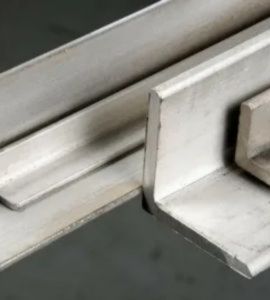

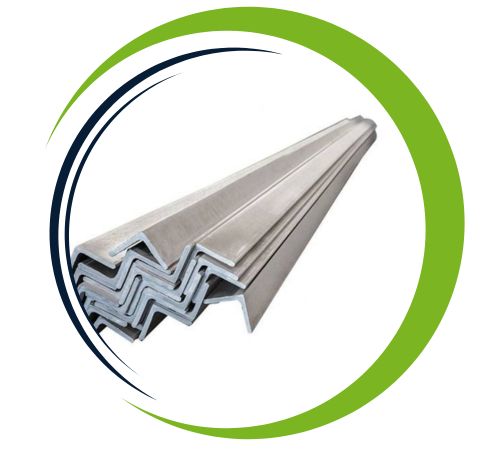

Hassan Sheets and Plates is a reputable manufacturer and supplier of Titanium Grade 2 Angles based in Riyadh, Saudi Arabia. They offer top-notch products that are perfect for a variety of industrial applications. Titanium Grade 2 is a commercially pure titanium alloy, celebrated for its impressive corrosion resistance, good ductility, and moderate strength. At Hassan Sheets and Plates, they prioritize precision engineering and comply with global standards, ensuring that their Titanium Grade 2 Angles are both reliable and high-quality. These angles find their place in industries like aerospace, marine, chemical, and medical, where durability, lightweight characteristics, and longevity are crucial.
The composition of Titanium Grade 2 Angles mainly includes pure titanium, along with trace amounts of oxygen, nitrogen, iron, and carbon. This alloy is known for its remarkable corrosion resistance in both oxidizing and mildly reducing environments, as well as its excellent weldability and formability. In terms of mechanical properties, Titanium Grade 2 boasts moderate tensile strength, good yield strength, and outstanding toughness, maintaining its performance across a wide temperature range—from cryogenic conditions to elevated heat. Its excellent biocompatibility and non-magnetic properties further enhance its appeal for specialized uses.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Grade 2 Titanium angle bar sizes : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

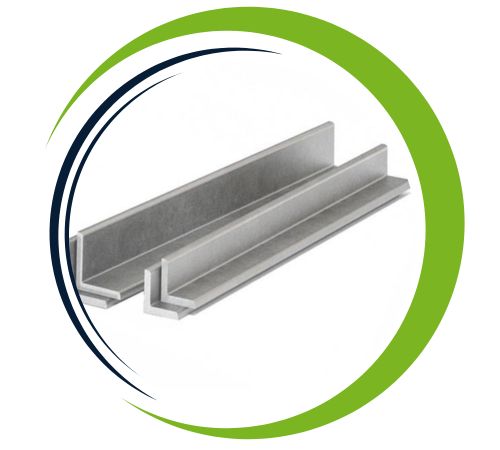

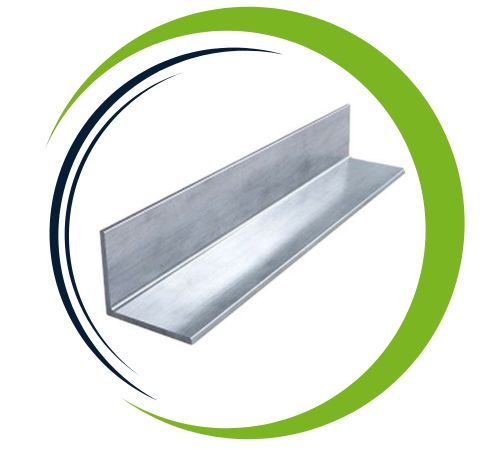

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Element | C | Mn | N | H | Ti | Fe | O |
| Titanium Gr2 | 0.1 max | 2.00 max | 0.03 max | 0.015 max | 99.2 min | 0.3 max | 0.25 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 2 angle offers several key advantages, making it ideal for demanding applications. Its excellent corrosion resistance, particularly in marine and chemical environments, ensures long-lasting performance. With a high strength-to-weight ratio, Ti Gr 2 provides durability without adding excessive weight, making it perfect for aerospace and structural applications. Its superior weldability and formability allow for easy fabrication into complex shapes. Additionally, Titanium Grade 2 exhibits good fatigue resistance and can perform well in temperatures up to 400°C, offering reliability and versatility in a variety of industries.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Gr.2 Angle Bar (kilogram/meter) | Titanium Gr 2 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Grade 2 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 2 Angle to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
You’ll find Titanium Grade 2 Angles widely utilized in marine settings, such as desalination plants, shipbuilding, and offshore platforms, thanks to their exceptional resistance to seawater. In the chemical sector, they are perfect for reactors, evaporators, and heat exchangers that deal with corrosive substances. The aerospace industry incorporates them into structural and hydraulic systems, while the medical field benefits from their application in surgical instruments and implants. Additionally, they are used in automotive, architectural, and power generation projects, providing long-lasting durability and reliability even in the toughest conditions.
