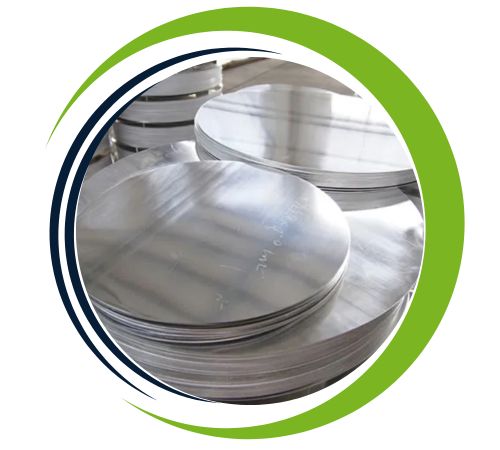

Hassan Sheets and Plates is a well-respected manufacturer and supplier of Stainless Steel 316 Circles based in Riyadh, Saudi Arabia. They pride themselves on delivering high-quality stainless steel products that are designed for strength, durability, and exceptional resistance to corrosion. Stainless Steel 316 is a type of austenitic stainless steel that contains molybdenum, making it particularly resistant to pitting, crevice corrosion, and harsh chloride environments when compared to standard grades. With a commitment to precision manufacturing and adherence to global standards, Hassan Sheets and Plates ensures that their SS 316 Circles are perfect for industries like chemical processing, marine, petrochemical, pharmaceutical, and food, where reliability and longevity are crucial.
These Stainless Steel 316 Circles are made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), with iron making up the rest, along with small amounts of carbon, manganese, and silicon. The addition of molybdenum significantly boosts resistance to corrosion caused by chlorides, while the austenitic structure contributes to their toughness and stability. On the mechanical side, SS 316 Circles provide excellent tensile and yield strength, outstanding creep resistance, and reliable toughness at both high and low temperatures, making them ideal for critical applications.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

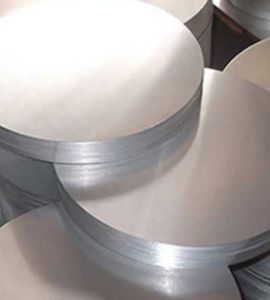

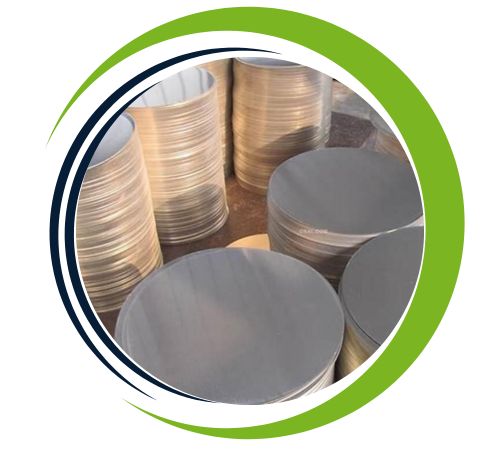

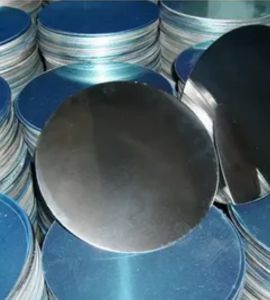

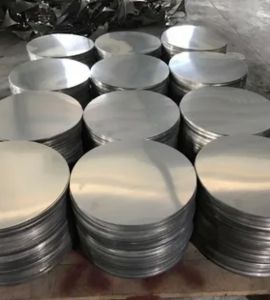

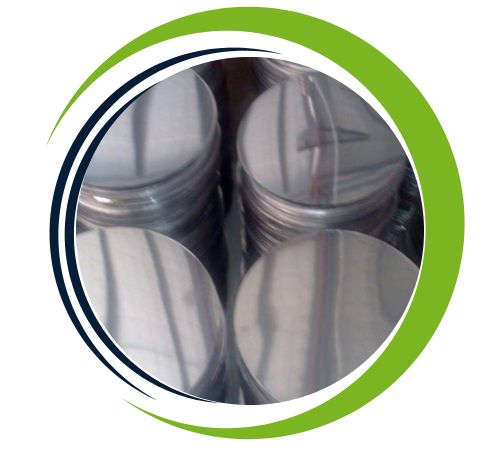

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Cnc Finish, Polished Unique, Hot Rolled Circle.. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grades | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316 circle offers a number of advantages, including excellent corrosion resistance, especially against chloride and salt water, making it ideal for marine, chemical and high-arm environmental Snakes high tensile strength, durability and the ability to withstand extreme temperatures to ensure long-term performance . Its excellent weldability and formability make it easy to manufacture in a variety of shapes. SS 316 is non-reactive, ensuring hygiene and safety in industries such as food processing and pharmaceuticals. Additionally, it resists pitting, crack corrosion and oxidation, resulting in lower maintenance costs and longer durability under extreme conditions.
You’ll find Stainless Steel 316 Circles commonly used in marine settings for shipbuilding, seawater equipment, and offshore platforms, thanks to their remarkable resistance to chlorides. In the chemical and petrochemical sectors, they are utilized in storage tanks, reactors, and heat exchangers that deal with corrosive fluids. The pharmaceutical and food processing industries also rely on them for hygienic and sterile equipment. Additionally, they find applications in architecture, pollution control systems, and power generation plants, delivering exceptional durability, corrosion resistance, and dependable performance even in aggressive environments.
