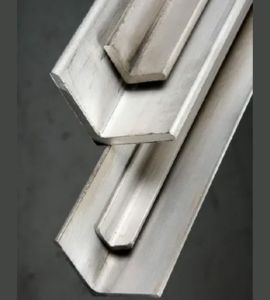

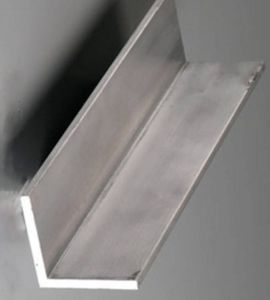

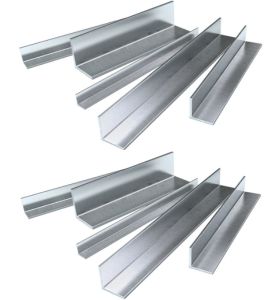

Hassan Sheets is a renowned Riyadh, Saudi Arabia-based manufacturer and supplier of high-quality stainless steel 904L angles with high corrosion resistance and durability. Produced according to international standards, these angles are well suited for high-pressure industries like chemical processing, petrochemical, marine, and pharmaceutical. Hassan Sheets offers accurate dimensions, high-quality surface finish, and prompt delivery, providing consistent materials that function properly under aggressive and corrosive conditions.
904L angles are constructed from a low-carbon austenitic type with high contents of chromium, nickel, molybdenum, and copper. Such composition gives superior resistance to corrosive strong acids, such as sulfuric and hydrochloric acid, and excellent pitting and crevice corrosion resistance in chloride environments. The grade is normally having a tensile strength of approximately 485 MPa and excellent ductility and weldability and hence is ideal for intricate fabrication procedures.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness: 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| >SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 904L angle offers many advantages, including excellent corrosion resistance, especially in acidic environments, which makes it ideal for applications such as chemical processing, seawater handling and more etc. Highly resistant to pitting and crevice corrosion, ensuring durability in extreme conditions. The alloy offers excellent weldability and formability, making it versatile for a variety of structural applications. With increased strength and durability, the stainless steel 904L Angle maintains its integrity under extreme temperatures and pressures. The low carbon content reduces carbide precipitation and increases corrosion resistance in high-temperature environments.
904L stainless steel angles are popular in applications where high corrosion resistance and strength are needed, particularly in severe chemical and marine environments. They are used in heat exchangers, storage tanks, chemical reactors, and offshore platforms. They are well suited for equipment in contact with seawater, acidic chemicals, and high temperatures due to their acid attack and chloride corrosion resistance, leading to long service life and less maintenance cost in demanding industrial applications.
