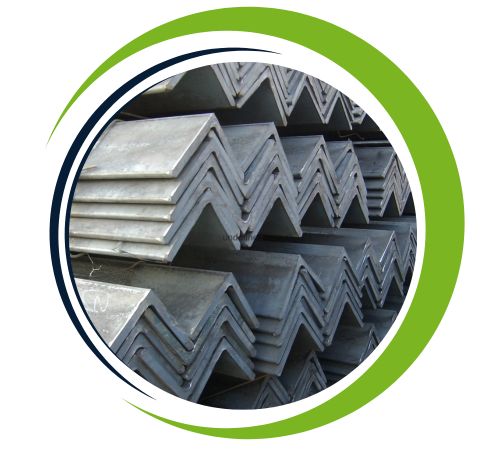

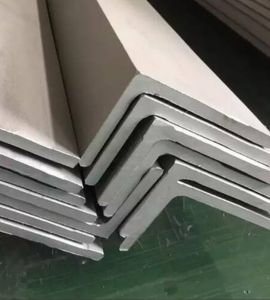

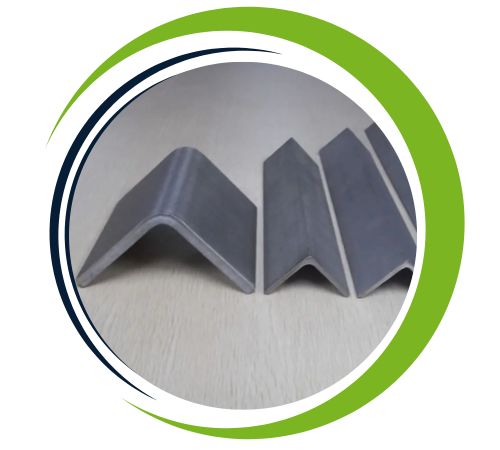

Hassan Sheets and Plate is a long-standing Riyadh, Saudi Arabia-based manufacturer and supplier of high-quality stainless steel products ranging from sheets, plates, to structural components. Of its specialized products is the stainless steel 317 angle, engineered for uses that demand high corrosion resistance, particularly in abusive chemical settings. Utilizing sophisticated manufacturing procedures and a focus on quality and customer satisfaction, Hassan Sheets and Plate supplies major industries including chemical processing, marine, and construction throughout Saudi Arabia and the wider Middle East.
Stainless steel 317 angle is mostly made up of iron, with elevated percentages of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%) to promote greater corrosion resistance, especially against chlorides and other hostile chemicals. It provides a tensile strength of about 515 MPa and a yield strength of about 205 MPa, with good ductility and weldability. The higher molybdenum content gives greater pitting resistance than 316, making it suitable for those applications with intense chemical exposure. The alloy works well under high-temperature and high-stress applications, providing a robust combination of strength and corrosion resistance.

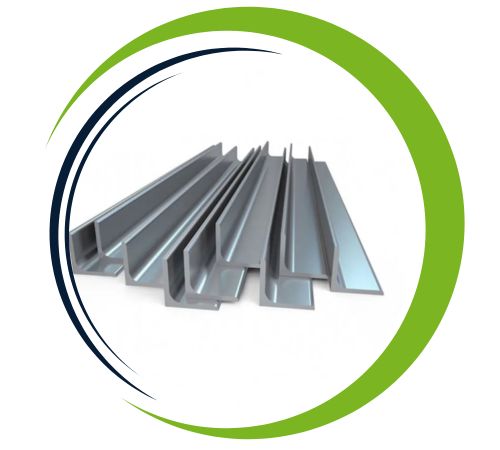

| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 317 Angle | : | 5mm to 9mm |
| SS 317 Channel | : | 40mm*20mm~300mm*300mm |
| SS 317 Beam | : | 3″ thru 12.31″ |
| SS 317 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |

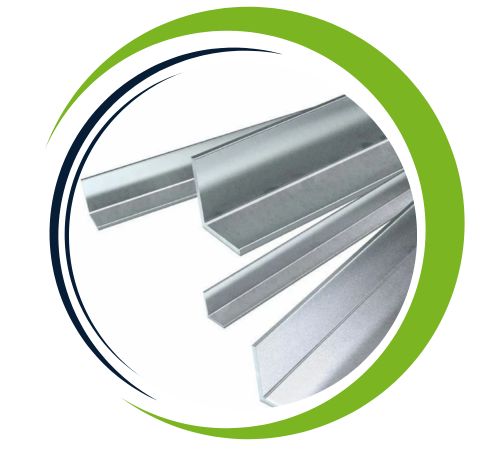

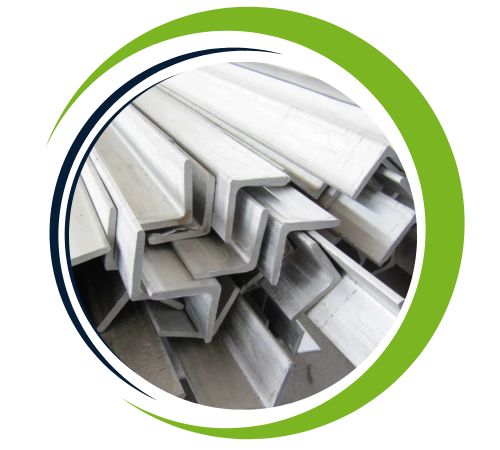

| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 317 angle provides excellent corrosion resistance, especially in chloride and acidic environments, making it ideal for extreme conditions and extremely durable, retaining its strength and its integrity at elevated temperatures. The alloy is resistant to pitting and crevice corrosion, increasing its longevity in harsh applications. Stainless steel 317 is easily manufactured and welded, providing versatility for a variety of architectural and industrial applications. Its excellent performance in pharmaceutical, food processing and marine environments makes it reliable for applications requiring high resistance loss.
Stainless steel 317 angle finds wide applications in industries where enhanced resistance to chemical attack is critical. It can be used in pulp and paper processing, petrochemical and chemical plants, food and beverage equipment, and marine conditions. It is particularly useful in environments exposed to sulfuric, acetic, or citric acids, and high chloride environments. Its strength and corrosion resistance are well suited to load-bearing supports, frameworks, and reinforcement in aggressive chemical or wet applications. Its long service life with minimal maintenance at is a benefit in demanding applications.
