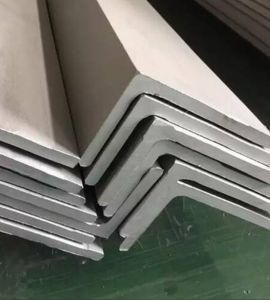

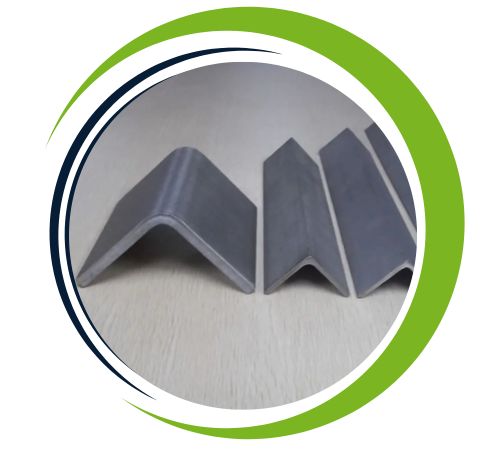

Hassan Sheets and Plates stands out as a top-notch manufacturer and supplier of Stainless Steel 347H Angles in Riyadh, Saudi Arabia. They specialize in delivering high-quality stainless steel products that excel in high-temperature and corrosive environments. Stainless Steel 347H is a niobium-stabilized austenitic stainless steel, crafted to provide outstanding resistance to intergranular corrosion and impressive performance even at elevated temperatures. With a commitment to precision manufacturing and strict adherence to global standards, Hassan Sheets and Plates ensures that their SS 347H Angles are perfect for industries like petrochemical, power generation, aerospace, and chemical processing, where durability, strength, and reliability are non-negotiable.
These Stainless Steel 347H Angles are primarily made up of chromium (17–19%), nickel (9–13%), and niobium for stabilization, with iron making up the rest, along with trace amounts of carbon, manganese, and silicon. This unique composition significantly boosts their resistance to sensitization and intergranular corrosion. On the mechanical side, SS 347H boasts high tensile and yield strength, excellent creep and stress rupture resistance, and remarkable toughness at both cryogenic and elevated temperatures, making it a dependable choice for high-pressure and high-temperature applications.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 347 | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| 347H | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347H angle provides exceptional resistance to high temperature oxidation and corrosion, making it ideal for use in harsh environments, such as chemical processing and electrical equipment Even on its own It maintains and sustains mechanical properties share. Stainless steel 347H is also resistant to intergranular corrosion, ensures durability in high-pressure applications, and is commonly used in applications requiring high-temperature operation and system integrity.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
You’ll find Stainless Steel 347H Angles commonly used in power plants for boiler tubes, heat exchangers, and superheaters, thanks to their ability to resist high-temperature oxidation. In the petrochemical and chemical sectors, they’re utilized in pressure vessels, reactors, and piping systems that come into contact with aggressive chemicals. In aerospace, they play a crucial role in turbine components, exhaust manifolds, and structural parts. Additionally, they find applications in food processing, pharmaceutical equipment, and furnace parts, providing exceptional durability, corrosion resistance, and a long service life even in extreme conditions.
