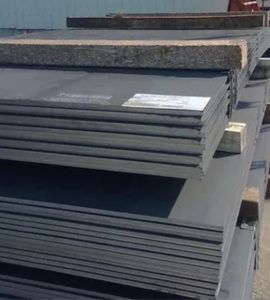

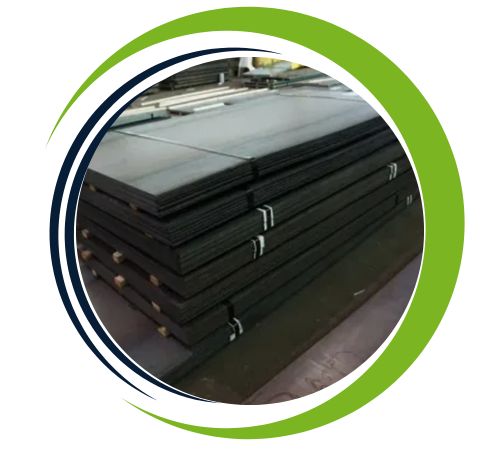

Hassan Sheets and Plates is a leading manufacturer and supplier of high-quality sheets and plates catering to Riyadh, the Saudi Arabia industries and beyond. Committed to excellence, we offer materials designed to meet diverse industrial requirements. Among our key offerings is the SA516 Grade 60 Boiler Sheet and Plate, renowned for its superior strength, durability, and resistance to high-pressure environments. It is ideal for boiler and pressure vessel applications and ensures reliability and longevity in demanding conditions.
SA516 Grade 60 is a carbon steel plate commonly used in pressure vessels and boilers. Its composition includes carbon, manganese, phosphorus, sulfur, silicon, and traces of other elements. The mechanical properties of SA516 Grade 60 include a tensile strength of 55-75 ksi (380-515 MPa), yield strength of 30 ksi (205 MPa), and elongation of 20% in 8 inches (200 mm). It offers excellent weldability, notch toughness, and resistance to hydrogen-induced cracking, making it suitable for low and intermediate-pressure vessels operating in various industrial applications.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Grade 60 boiler sheet and plate offer excellent strength and durability, making them ideal for pressure vessel and boiler applications. Known for their resistance to cracking, they are highly effective in high-temperature and high-pressure environments. The steel’s weldability and ease of fabrication further enhance its versatility. Its ability to withstand moderate to high stress levels without compromising performance makes it suitable for power generation and chemical industries. SA516 Grade 60 also offers good toughness, making it reliable for long-term use in demanding applications.
SA516 Grade 60 Boiler Sheet and Plate are primarily used to fabricate pressure vessels and boilers. It is ideal for applications requiring moderate to high tensile strength and excellent weldability. This steel grade is commonly used in constructing power plants, chemical processing, and oil and gas industries. It is well-suited for vessels and piping exposed to high temperatures and pressure conditions. Its resistance to corrosion, good formability, and durability make it a reliable choice for constructing equipment like tanks, reactors, and heat exchangers.
