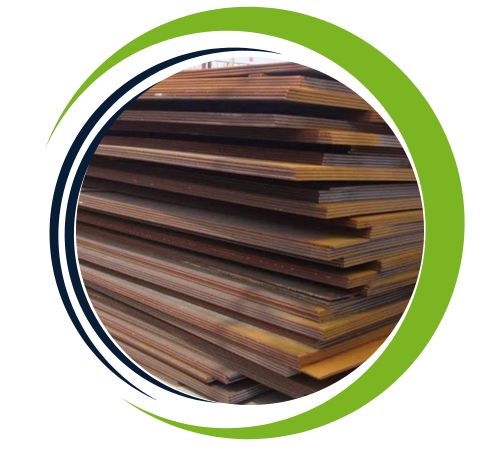

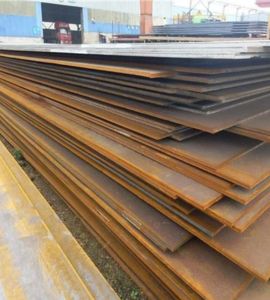

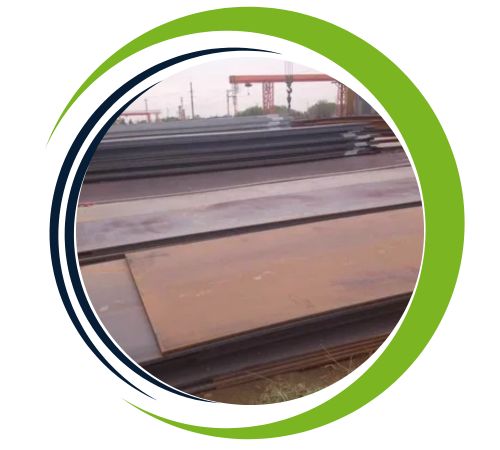

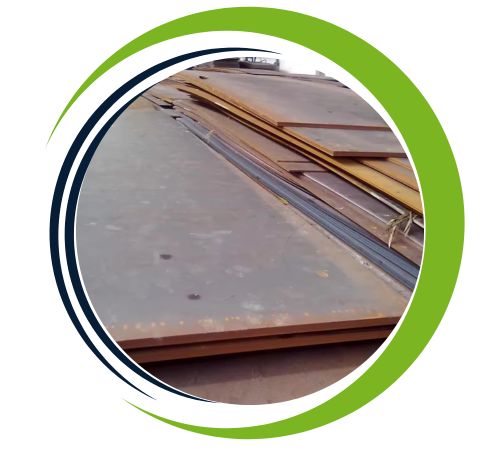

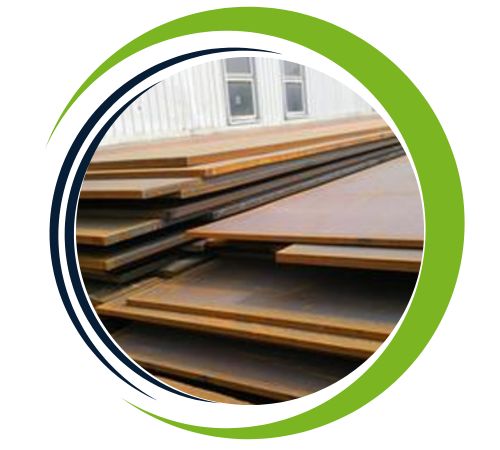

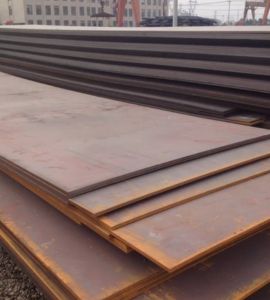

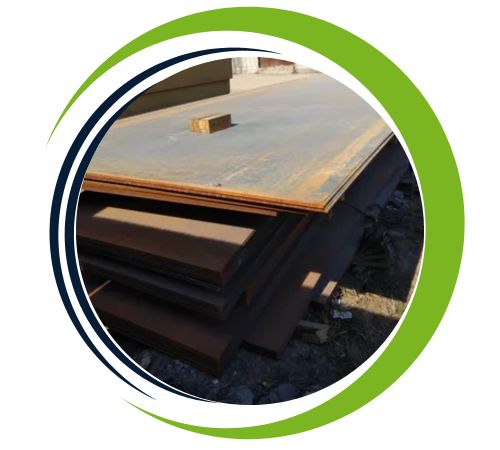

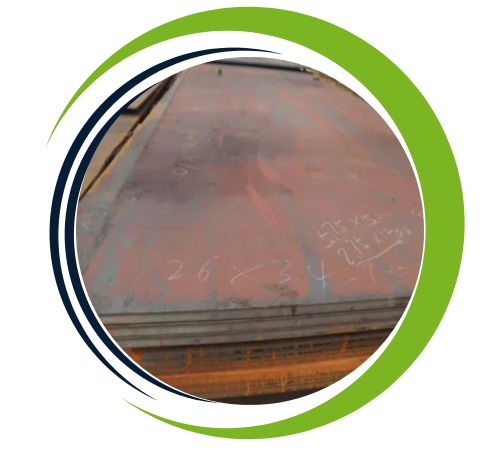

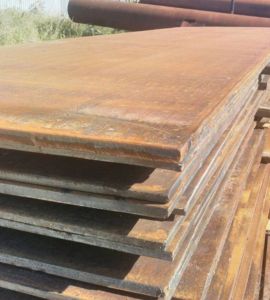

Hassan Sheets and Plate, a top-notch manufacturer and supplier located in Riyadh, Saudi Arabia, specializes in high-quality Abrasion Resistant Sheet and Plate. These products are expertly crafted to deliver outstanding durability and long-lasting performance, even in the toughest industrial settings. Built to meet international quality standards, these sheets and plates are tough enough to handle extreme wear, impact, and heavy loads. With a commitment to precise production, rigorous quality control, and timely delivery, Hassan Sheets and Plate provides a dependable solution for industries that need materials combining strength, toughness, and excellent wear resistance.
The Abrasion Resistant Sheet and Plate is crafted from high-carbon alloy steel, with carefully balanced additions of manganese, chromium, and other elements to ensure remarkable hardness and toughness. This material is designed to resist wear, impact, and deformation while still being ductile enough for fabrication and welding. Its mechanical properties boast high tensile and yield strength, making it perfect for heavy-duty applications where long-term reliability in harsh conditions is a must.
| Material | Steel |
| Hardness | 400bhn |
| width | 500-3000 milimeter |
| Density | 8.00 |
| Shape | Rectangle & Square |
| Elongation | 20% |
| Surface Treatment | Polished |
| Resistant Type | Hardened Tempered |
| Technique | Hot Rolled |
| Application | Mining Truck And Machines |
| Abrasion Resistant Grade | C | Si | Mn | S | B | P | Cr | Ni | Mo |
| AR300 Sheet/Plate | 0.18 | 0.7 | 1.70 | 0.015 | 0.005 | 0.025 | 1.50 | 0.40 | 0.50 |
| AR450 Sheet/Plate | 0.26 | 0.7 | 1.70 | 0.015 | 0.005 | 0.025 | 1.00 | 0.70 | 0.50 |
| AR500 Sheet/Plate | 0.30 | 0.7 | 1.70 | 0.015 | 0.005 | 0.025 | 1.00 | 0.70 | 0.50 |
| AR400 Sheet/Plate | 0.25 | 0.7 | 1.70 | 0.015 | 0.005 | 0.025 | 1.50 | 0.70 | 0.50 |
| Grade | Tensile Strength MPa | Hardness Range | Impact Strength Charpy V 20J | Yield Strength MPa | Elongation A |
| AR400 Sheet/Plates | 1250 | 360-480 | -40C | 1000 | 10 |
| AR300 Sheet/Plates | 1000 | – | -40C | 900 | 11 |
| AR450 Sheet/Plates | 1450 | 420-500 | -40C | 1200 | 8 |
| AR500 Sheet/Plates | 1450 | 450-540 | -30C | 1250 | 8 |
| Steel Grade | ThyssenkKrupp | Ruukki | JFE | SSAB | DILLIDUR |
|---|---|---|---|---|---|
| NM450 | XAR450 | Raex450 | – | HARDOX450 | 450V |
| NM400 | XAR400 | Raex400 | EH400 | HARDOX400 | 400V |
| NM360 | – | – | EH360 | – | – |
| NM500 | XAR500 | Raex500 | EH500 | HARDOX500 | 500V |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Thickness | Width | Length |
| 5 mm | 2000 mm | 6000 mm |
| 4 mm | ||
| 6 mm | ||
| 6 mm | ||
| 8 mm | ||
| 10 mm | ||
| 8 mm | ||
| 15 mm | ||
| 12 mm | ||
| 20 mm | ||
| 16 mm | ||
| 32 mm | ||
| 25 mm | ||
| 50 mm | ||
| 40 mm | ||
| 60 mm | 1800 mm | 3400 mm |
| Grade | Width | Thickness | Length |
| AR400F Sheet/Plates | 48″ – 120″ | 3/16″ – 4″ | 96″ – 480″ |
| AR450F Sheet/Plates | 48″ – 96 “ | 3/16″ – 2 “ | 96″ – 480″ |
| AR200 / AR 235 Sheet/Plates | 48″ – 120″ | 3/16″ – 3/4″ | 96″ – 480″ |
| AR500 Sheet/Plates | 48″ – 96 “ | 3/16″ – 2 “ | 96″ – 480″ |
| AR600 Sheet/Plates | 48″ – 96 “ | 3/16″ – 3/4″ | 96″ – 480″ |
| 450HB | 355 L | IMPACT | 400HB | 500HB | |
| Cold formability | 0 | — | + | + | – |
| Abrasion Resistant | ++ | + | + | + | +++ |
| Weldability | 0 | – | ++ | + | – |
| Hot formability | – | + | 0 | – | – |
| Use at high temperature | – | + | 0 | – | – |
| Toughness | 0 | – | ++ | + | – |
| Machining | 0 | + | + | + | – |
| Nitriding | – | + | + | – | – |
The Abrasion Resistant Sheet and Plate offers many advantages, including extended life in corrosive environments such as mining, construction, utilities, etc. They density and high durability reduce the need for frequent replacement, thereby reducing maintenance costs. AR products improve safety by maintaining the integrity of equipment in extreme conditions. They also increase operational efficiency by reducing downtime and ensuring efficiency. In addition, the AR sheets and plates are highly impact resistant, enhancing structural reliability and reducing wear-related damage, making them a cost-effective solution for complex applications
Yes, we offer custom sizes for Abrasion Resistant Sheet and Plate to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@hasansheetsplates.com.
You’ll find Abrasion Resistant Sheet and Plate widely used across mining, construction, cement, and material handling industries. It’s particularly well-suited for creating crusher liners, chutes, hoppers, buckets, and other equipment that faces constant wear and impact. Thanks to its durability, wear resistance, and structural strength, these sheets and plates offer an extended service life, helping to cut down on maintenance costs and downtime. This makes them a go-to choice for engineers and contractors working in demanding industrial environments.
