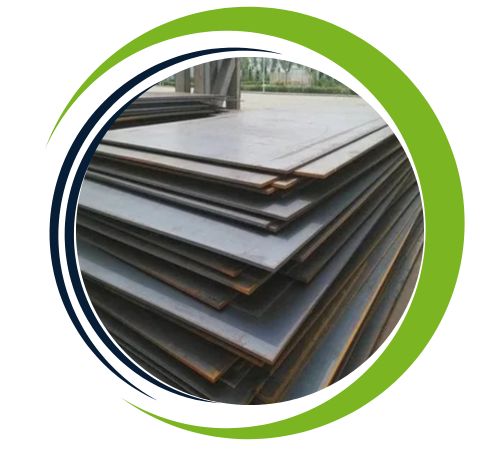

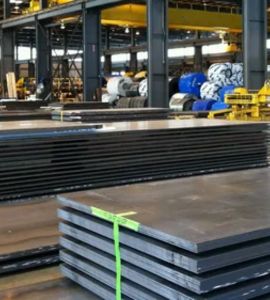

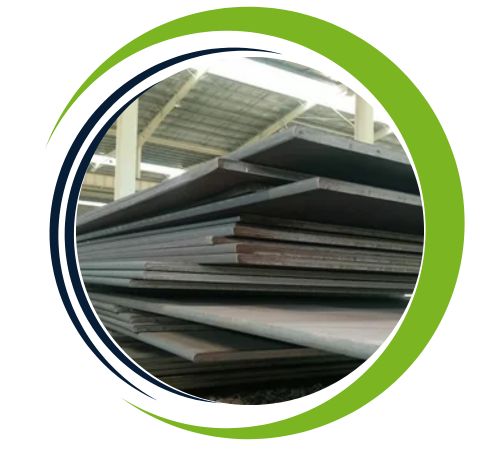

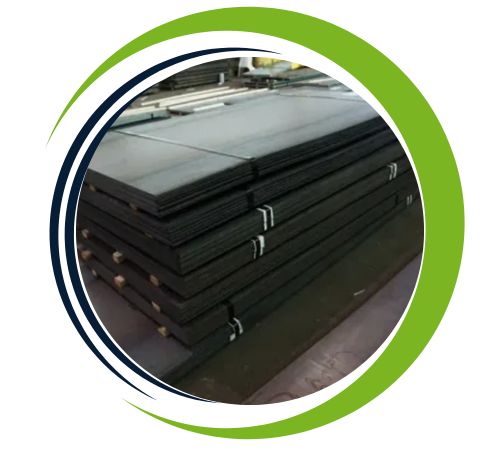

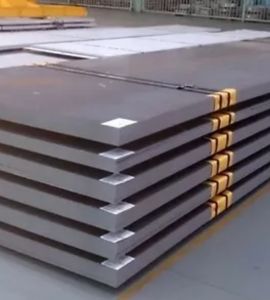

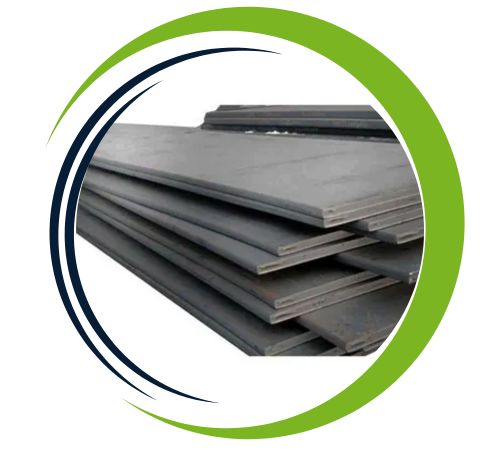

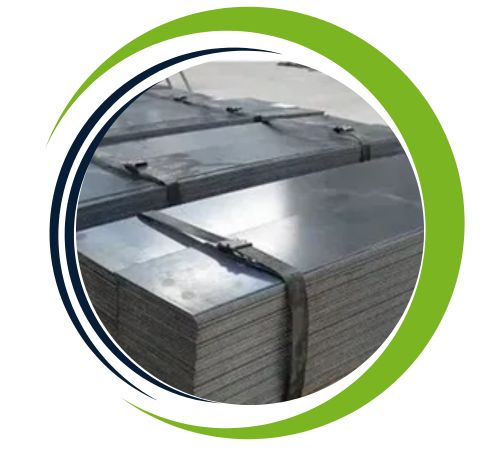

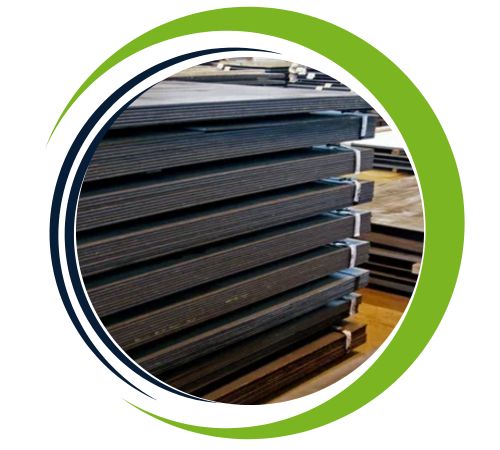

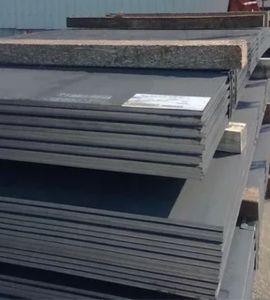

Hassan Sheets and Plates is a well-respected manufacturer and supplier based in Riyadh, Saudi Arabia, known for providing top-notch SA516 Gr 60-70 Dual TC Boiler Sheet and Plate. This particular steel grade is a go-to choice for pressure vessels and boilers, thanks to its impressive toughness, strength, and reliability across various service conditions. The dual-certified plates satisfy the standards for both SA516 Grade 60 and Grade 70, giving you the flexibility to use them in a range of applications. At Hassan Sheets and Plates, we adhere to international quality standards, ensuring that our products meet the needs of industries like petrochemical, oil and gas, power generation, and chemical processing with precision and durability.
The SA516 Gr 60-70 Dual TC Boiler Sheet and Plate is primarily made up of carbon, manganese, silicon, phosphorus, and sulfur, striking a great balance between strength and ductility. When it comes to mechanical properties, Grade 60 boasts a tensile strength of 415–585 MPa, while Grade 70 ranges from 485–620 MPa, with minimum yield strengths of 220 MPa and 260 MPa, respectively. Both grades are known for their excellent notch toughness, weldability, and formability, making them ideal for high-pressure and moderate-temperature environments.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1500mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 70N | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Grades | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 60 | 485-620 (70-90) | 260 (38) | 17 | 21 |
| 70N | 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| 70N | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Gr 60-70 Dual TC Boiler Sheets and Plates offer exceptional strength, durability, and reliability, making them ideal for high-pressure and high-temperature applications. These plates provide excellent weldability and toughness, even in low-temperature conditions, ensuring structural integrity in critical environments. They exhibit superior resistance to corrosion and cracking, enhancing longevity and safety in boiler and pressure vessel operations. Dual test certifications ensure compliance with stringent industry standards, offering versatility across various industries such as oil and gas, power generation, and chemical processing. Their cost-effectiveness further adds to their appeal.
You’ll find that the SA516 Gr 60-70 Dual TC Boiler Sheet and Plate is commonly used in the construction of boilers, pressure vessels, heat exchangers, and storage tanks. Its dual certification allows for versatility in sectors like oil refineries, thermal power plants, and chemical processing facilities. These plates are also utilized in heavy engineering and structural applications where safety, toughness, and reliability are paramount. With outstanding weldability and long-lasting performance, this grade guarantees dependable service even in the most demanding industrial settings.
