Shipbuilding Steel Sheet and Plate

Hassan Sheets and Plate Manufacturer and Supplier, located in Riyadh, Saudi Arabia, stands out as a dependable source for top-notch steel products specifically designed for the marine and shipbuilding sectors. The company focuses on Shipbuilding Steel Sheets and Plates, crafted to withstand the tough conditions of marine environments. With cutting-edge manufacturing processes and a strong commitment to international quality standards, Hassan provides products renowned for their strength, durability, and resistance to corrosion. These steel plates are perfect for constructing hulls, decks, and offshore structures. Hassan is dedicated to supplying reliable, high-performance materials for shipyards and marine contractors throughout Saudi Arabia and the Gulf region.

LR Shipbuilding Steel Plate

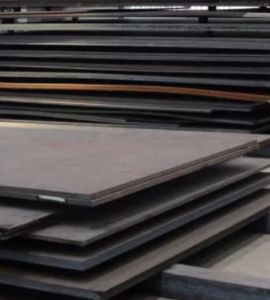

Grade A Shipbuilding Steel Plate

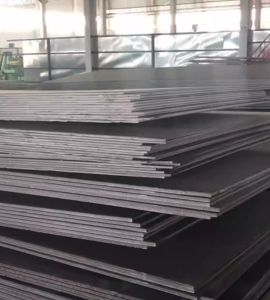

Ship Steel Sheet

Hot Rolled Shipbuilding 12mm Carbon Plate Manufacturer in Ras Al Khair, Shipbuilding Sheet Ah40 Marine Grade Steel Plate Jeddah, Hot Rolled EH36 Shipbuilding Steel Sheet Supplier in Riyadh, 12mm Black Surface Iron Ship Steel Sheet Exporter in Al Jubail, Shipbuilding Steel Plate EH36 Price List in Saudi Arabia, ASTM A131 Shipbuilding Steel Plate Distributor in Jeddah, LR Shipbuilding Steel Plate and Sheet Supplier in Ras Al Khair, HR Shipbuilding Carbon Plate Distributor in Saudi Arabia, DH36 High Strength Shipbuilding Steel Plates Sizes in mm

Shipbuilding steel sheets and plates are generally composed of high-strength, low-alloy steels like Grade AH36, DH36, or EH36. These materials are formulated with controlled levels of carbon (≤0.21%), manganese, silicon, and trace elements to boost strength and weldability. Their mechanical properties feature a yield strength of 355 MPa, tensile strength ranging from 490 to 620 MPa, and an elongation of 21% or more, depending on the specific grade. These plates provide outstanding toughness and impact resistance, particularly in low-temperature conditions, making them ideal for ship hulls and offshore structures that operate in challenging marine environments.

Shipbuilding Steel Sheet and Plate Specification

Weight	Up to 40 ton
Width	1500-4000
Thickness	4-200 mm
grades	EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents
Length	Up to 20000
Delivery condition	quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled

Chemical Composition of Ship Steel Plate

Grade	C%≤	Al %	Mn %	p % ≤	S % ≤	Si %	Nb %	V %
D32 A32 E32	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	—	—
A	0.22	—	≥ 2.5C	0.04	0.40	0.10~0.35	—	—
B	0.21	—	0.60~1.00	0.04	0.40	0.10~0.35	—	—
E	0.18	≥0.015	0.70~1.20	0.04	0.04	0.10~0.35	—
D36 A36 E36	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	0.015~0.050	0.030~0.10
D	0.21	≥0.015	0.60~1.00	0.04	0.04	0.10~0.35	—	—

Shipbuilding Steel Plate Mechanical Properties

Grade	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation （%）≥	cold bend test		Thickness (mm)	V-impact test
				b=5a 120°	b=2a 180°		Temperature （℃）	Average AKV A kv /J
								lengthways	crosswise
								≥
A	235	400~490	22	—	d=2a	≤50 mm	—	—	—
B				d=3a	—		0	27	20
D							-10
E							-40
A32	315	440~590	22	d=3a	—	≤50 mm	0	31	22
D32							-20
E32							-40
A36	355	490~620	21	d=3a	—	≤50 mm	0	34	24
D36							-20
E36							-40

Ship Steel Plate Price in Dammam, LR Shipbuilding Steel Plate Weight Chart, Shipyard Steel Plate Supplier in Saudi Arabia, Stockist of Hot Rolled Steel Plate A36 in Al Jubail, Ship Steel Sheet Supplier in Saudi Arabia, Cut Length AH36 Ship Steel Plate Price List in Riyadh, Grade A Shipbuilding Steel Plate Supplier in Al Jubail, ASTM AH36 High Strength Shipbuilding Steel Plate Exporter in Ras Al Khair, ASTM A131 Grade AH36 Shipbuilding Steel Sheets and Plates Exporter in Saudi Arabia, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates in Dammam

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Shipbuilding Steel Sheet and Plate Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Ship Steel Plate Size Range

size(mm)						CSA (cm2)	weight (kg/m)
	h	t	r1	b	r	CSA (cm2)	weight (kg/m)
	19	5	4	80	≤1.5	5.41	4.25
	20	6	4	80	≤2	6.21	4.88
	22.5	7	4.5	100	≤2	8.74	6.86
	23.5	8	4.5	100	≤2	9.74	7.65
	23	6	5	120	≤2	9.32	7.32
	24	7				10.52	8.26
	25	8				11.72	9.2
	26	7	5.5	140	≤2	12.43	9.75
	27	8			≤2	13.83	10.85
	29	10			≤3	16.63	13.05
	29	7	6	160	≤2	14.6	11.46
	30	8				16.2	12.72
	31	9				17.8	13.97
	33	11			≤3	21	16.49
	33	8	7	180	≤2	18.86	14.8
	34	9			≤2	20.66	16.22
	35	10			≤3	22.46	17.63
	36	11			≤3	24.26	19.04
	37	9	8	200	≤2	23.66	18.57
	38	10			≤3	25.66	20.14
	39	11				27.66	21.71
	40	12				29.66	23.28
	41	10	9	220	≤3	29.66	22.27
	42	11				29	24.5
	43	12				31.2	26.22
	40	10	10	240	≤3	33.49	25.5
	45	11				34.89	27.39
	46	12				37.29	29.27
	47	10	11	260	≤3	36.11	28.35
	48	11				38.71	30.39
	49	12				41.31	32.43
	51	11	12	280	≤3	42.68	33.5
	52	12				45.48	35.7
	53	13				48.28	37.9
	54	11	13	300	≤3	46.78	36.7
	55	12				49.79	39.09
	56	13				52.79	41.44
	58	12	14	320	≤3	54.25	42.6
	59	13			≤3	57.25	45.09
	60	14			≤4	60.85	47.6
	61	12	15	340	≤3	58.84	46.2
	62	13			≤3	62.24	48.86
	63	14			≤4	65.54	51.5
	66.5	13	16.5	370	≤3	69.7	54.7
	67.5	14			≤4	73.4	57.6
	68.5	15			≤4	77.1	60.5
	72	14	18	400	≤4	81.48	63.96
	73	15				85.48	67.1
	74	16				89.48	70.2
	76.5	14	19.5	430	≤4	89.7	70.6
	77.5	15				94.19	73.9
	79.5	17				102.79	80.7
	81.5	19				111.39	87.4
	82.5	20				115	90.8

Shipbuilding Plate AH36 Dimensional Deviation

nominal thickness（mm）	minus deviation (mm)	The thickness deviation with following width (mm)
nominal thickness（mm）	minus deviation (mm)	> 1500 ~1700	> 1200 ~1500	> 1700 ~1800	> 1000 ~1200	> 1800 ~2000	> 2000 ~2300	> 2300 ~2500	> 2500 ~2600	2600 ~2800	> 2800 ~3000
>12~25 mm	-0.8 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.8	+1.0	+1.1	+1.2
>25~30 mm	-0.9 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.1	+1.2
>30~34 mm	-1.0 mm	+0.3 mm	+0.3 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.2	+1.3
>34~40 mm	-1.1 mm	+0.5 mm	+0.4 mm	+0.6 mm	+0.3 mm	+0.7 mm	+0.9 mm	+1.0	+1.1	+1.3	+1.4
>40~45 mm	-1.2 mm	+0.6 mm	+0.5 mm	+0.7 mm	+0.4 mm	+0.8 mm	+1.0 mm	+1.1	+1.2	+1.4	+1.

Marine Metal Sheet Grade a AH36 Shipbuilding Steel Plates Distributor in Saudi Arabia, LR Shipbuilding Steel Plate Supplier in Riyadh, 8mm Thickness Hot Rolled Steel Plates for Shipbuilding, CCS LR Grade A Steel Plates Weight Chart, Low DH36 High Strength Shipbuilding Steel Sheet Exporter in Al Jubail, Shipbuilding Steel Plate Manufacturer in Ras Al Khair, FH36 Grade A Marine Shipbuilding Steel Plates Sizes in mm, Hot Rolled Steel A36 Sheets and Plates Dammam

Types of Shipbuilding Steel Sheet and Plate

DH40 Marine Grade Ship Steel Plates Dealer in Ras Al Khair, CCS LR Grade A Shipbuilding Steel Plates Supplier in Ras Al Khair, ASTM A131 Grade AH36 Shipbuilding Steel Sheet and Plates in Jeddah, DH36 Shipbuilding Steel Plates Size Chart, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates Price in Dammam, ASTM A131 High Strength Shipbuilding Steel Plate Stockist in Al Jubail, Ship Steel Plate Stockist in Riyadh, AH36 Steel Plate Supplier in Al Jubail

Are Custom Sizes Available for Shipbuilding Steel Sheet and Plate?

Yes, we offer custom sizes for Shipbuilding Steel Sheet and Plate to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Shipbuilding Steel Sheet and Plate

Shipbuilding steel sheets and plates are mainly utilized in constructing ship hulls, decks, bulkheads, and superstructures. Their impressive strength, toughness, and resistance to corrosion make them perfect for cargo ships, naval vessels, offshore oil rigs, and marine platforms. These plates are also used in building ferries, tankers, and subsea pipelines. Thanks to their excellent weldability and durability under dynamic loading conditions, shipbuilding steel ensures safety, longevity, and top-notch performance.
