Structural Steel Sheet and Plates

Hassan Sheets is a well-established manufacturer and distributor in Riyadh, Saudi Arabia, dealing with high-quality structural steel sheets and plates used for various construction and industrial purposes. Hassan Sheets is renowned for providing robust and dependable products and makes sure that its structural steel sheets and plates are up to international standards of quality. These products are extensively applied in building structures, bridges, heavy machinery, and infrastructure work, providing superior strength, toughness, and weldability to accommodate rigorous structural demands.

Structural SteelCold Rolled Plates

Structural Steel Hot Rolled Plates

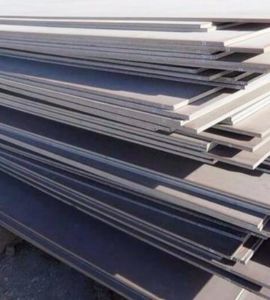

Structural Steel Shim Sheets

Structural Steel Clad Sheets Distributor in Saudi Arabia, Structural Steel Perforated Plates Supplier in Riyadh, Structural Steel Perforated Sheet Weight Chart, Structural Steel Plate Exporter in Al Jubail, Structural Steel Polished Sheets Manufacturer in Ras Al Khair, Structural Steel Shim Sheet and Plate Price List in Saudi Arabia, Structural Steel Chequered Plates Sizes in mm, Structural Steel Hot Rolled Plate Distributor in Jeddah, Structural Steel Sheets and Plates Dammam

Structural steel plates and sheets are generally manufactured from carbon steel alloys like ASTM A36, A572, and A516, providing high tensile strength, satisfactory ductility, and resistance to impact. Their tensile strength is normally between 400 MPa and 550 MPa based on grade, and they have great weldability and formability. They are produced in regular thickness and surface finish for cutting, forming, and welding into other structural parts. They are tough enough to be able to resist heavy loads and adverse weather conditions.

Structural Steel Sheet and Plates Specification

Grade	EN10025-3, EN10025-2, EN10025-6, EN10025-4
Width	2m, 2.5m, 1.5m, and 3m
Length	6 meter to 12 meter
Ultra High Yield Plates	BSEN 10025 S275J2+N BSEN 10025 S275JR+AR BSEN 10025 S235JR+AR BSEN 10025 S355K2+N BSEN 10025 S355JR+AR
Thickness	6 milimeter to 300 milimeter

Structural Steel Sheet and Plates Chemical Composition

S	C	P	Mo	Si	B	Ni	Mn	Cr
0.0010	0.025	0.0025	1.05	0.070	0.0004	1.050	1.060	1.040

Structural Steel Sheet and Plates Mechanical Properties

at 16mm Offshore Grade	at nominal thickness 16mm Minimum Yield Strength
at 16mm Offshore Grade	N/mm2 (MPa)	psi
S275	275 N/mm2	36 000
S235	235 N/mm2	33 000
S355	355 N/mm2	50 000

Structural Steel Plates Manufacturer in Ras Al Khair, Structural Steel Plates & Sheets in Jeddah, Structural Steel Mirror Finish Plates Supplier in Riyadh, Structural Steel Polished Plates Exporter in Al Jubail, Structural Steel Chequered Plates Price List in Saudi Arabia, Structural Steel Cold Rolled Plate Distributor in Jeddah, Structural Steel Clad Plates and Sheets Supplier in Ras Al Khair, Structural Steel Sheet and Plate Distributor in Saudi Arabia, Structural Steel Perforated Plate Sizes in mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Structural Steel Sheet and Plates Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Structural Steel Sheets Price in Dammam, Structural Steel Hot Rolled Weight Chart, Structural Steel Cold Rolled Supplier in Saudi Arabia, Stockist of Structural Steel Cold Rolled Sheets in Al Jubail, Structural Steel Perforated Sheet Supplier in Saudi Arabia, Structural Steel Perforated Plates Price List in Riyadh, Structural Steel Perforated Plates Supplier in Al Jubail, Structural Steel Chequered Plates Exporter in Ras Al Khair, Structural Steel Polished Plates Exporter in Saudi Arabia, Structural Steel Perforated Plates Exporter in Jeddah, Structural Steel Sheet and Plate in Dammam

Structural Steel Sheets and Plates offer numerous advantages, making them a preferred choice in construction and industrial applications. They provide excellent strength-to-weight ratio, ensuring durability while reducing overall material usage. Their superior weldability and formability allow for easy fabrication into complex shapes and structures. Structural steel is highly versatile and can be customized for various applications, from bridges to heavy machinery. It also offers good toughness, impact resistance, and uniformity, ensuring reliability in demanding conditions. Additionally, it is cost-effective, recyclable, and compliant with stringent industry standards, making it an eco-friendly and economical solution.

Types of Structural Steel Sheet and Plates

Structural Steel Sheets Dealer in Ras Al Khair, Structural Steel Plates Supplier in Ras Al Khair, Structural Steel Sheets in Jeddah, Structural Steel Plates Size Chart, Structural Steel Sheet Price in Dammam, Structural Steel Plates Supplier in Saudi Arabia, Structural Steel Sheet Stockist in Al Jubail, Structural Steel Sheets and Plates Exporter in Saudi Arabia, Structural Steel Sheet Stockist in Riyadh, Structural Steel Plates Supplier in Al Jubail

Are Custom Sizes Available for Structural Steel Sheet and Plates?

Yes, we offer custom sizes for Structural Steel Sheet and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Structural Steel Sheet and Plates Equivalent Grades

4.7 – 51.0	Thickness (milimeter)
0.47 (0.70)	Max CET(CEV)
0.40 (0.59)	Typ CET(CEV)

Structural Steel Sheet and Plates Weight Chart

Plate Thickness *(mm)*	Weight *(kg/m2)*
1.06 mm	12.06
2.00 mm	15.07
2.05 mm	19.06
3 mm	23.06
3.02 mm	25.01
4 mm	31.04
5 mm	39.03
6 mm	47.01
8 mm	62.08
10 mm	78.05
12.05 mm	98.01
15 mm	118
20 mm	157
22.05 mm	177
25 mm	196
30 mm	236
32 mm	251
35 mm	275
40 mm	314
45 mm	353
50 mm	393
55 mm	432
60 mm	471
65 mm	510
70 mm	550
75 mm	589
80 mm	628
90 mm	707
100 mm	785
110 mm	864
120 mm	942
130 mm	1051
150 mm	1178
160 mm	1256
180 mm	1413
200 mm	1570
250 mm	1963

Structural Steel Sheet and Plates Dimensions

length x Width	Thickness	Mass per Sq m		Length x Width	Thickness	Mass per Sq m
length x Width	Thickness	Mass per Sq m		Length x Width	Thickness	Mass per Sq m
2000 x 1000	3	23.055		2000 x 1000	30.000	235.050
2500 x 1250	3	23.055		2500 x 1250	30.000	235.050
3000 x 1500	3	23.055		3000 x 1500	30.000	235.050
3660 x 1830	3	23.055		4000 x 2000	30.000	235.050
4000 x 2000	3	23.055		5000 x 1250	30.000	235.050
2000 x 1000	4	31.040		5000 x 2500	30.000	235.050
2500 x 1250	4	31.040		6000 x 2500	30.000	235.050
3000 x 1500	4	31.040		10000 x 2500	30.000	235.050
3660 x 1830	4	31.040		2000 x 1000	32.000	251.020
2000 x 1000	5	39.025		2500 x 1250	32.000	251.020
2500 x 1250	5	39.025		3000 x 1500	32.000	251.020
3000 x 1500	5	39.025		4000 x 2000	32.000	251.020
3660 x 1830	5	39.025		5000 x 2500	32.000	251.020
4000 x 1750	5	39.025		2500 x 1250	35.000	274.075
4000 x 1830	5	39.025		3000 x 1500	35.000	274.075
4000 x 2000	5	39.025		4000 x 2000	35.000	274.075
6000 x 2000	5	39.025		2000 x 1000	40.000	314.000
2500 x 1250	6	47.010		2500 x 1250	40.000	314.000
3000 x 1500	6	47.010		3000 x 1500	40.000	314.000
3000 x 1525	6	47.010		4000 x 1750	40.000	314.000
3660 x 1830	6	47.010		4000 x 2000	40.000	314.000
4000 x 1750	6	47.010		5000 x 2500	40.000	314.000
4000 x 1830	6	47.010		6000 x 2000	40.000	314.000
4000 x 2000	6	47.010		7500 x 2500	40.000	314.000
6000 x 1500	6	47.010		2000 x 1000	45.000	353.025
6000 x 1830	6	47.010		2500 x 1250	45.000	353.025
6000 x 2000	6	47.010		2500 x 1500	45.000	353.025
6000 x 2500	6	47.010		3000 x 1500	45.000	353.025
8000 x 2000	6	47.010		4000 x 2000	45.000	353.025
8000 x 2500	6	47.010		5000 x 2500	45.000	353.025
2000 x 1000	8	62.080		2000 x 1000	50.000	392.050
2500 x 1250	8	62.080		2500 x 1250	50.000	392.050
3000 x 1500	8	62.080		3000 x 1500	50.000	392.050
3660 x 1830	8	62.080		4000 x 2000	50.000	392.050
4000 x 2000	8	62.080		5000 x 2500	50.000	392.050
5000 x 2500	8	62.080		6000 x 2000	50.000	392.050
6000 x 1500	8	62.080		8000 x 2500	50.000	392.050
6000 x 2000	8	62.080		2000 x 1000	60.000	471.000
8000 x 2000	8	62.080		2500 x 1250	60.000	471.000
2000 x 1000	10	78.050		3000 x 1500	60.000	471.000
2500 x 1250	10	78.050		4000 x 2000	60.000	471.000
3000 x 1500	10	78.050		5000 x 2500	60.000	471.000
4000 x 1750	10	78.050		2000 x 1000	65.000	510.025
5000 x 2500	10	78.050		2500 x 1250	65.000	510.025
6000 x 1500	10	78.050		3000 x 1500	65.000	510.025
6000 x 2000	10	78.050		4000 x 2000	65.000	510.025
6000 x 2500	10	78.050		5000 x 2500	65.000	510.025
10000 x 2000	10	78.050		2000 x 1000	70.000	549.05
10000 x 2500	10	78.050		2500 x 1250	70.000	549.05
2000 x 1000	12	94.020		3000 x 1500	70.000	549.05
4000 x 2000	12	94.020		4000 x 2000	70.000	549.05
6000 x 2000	12	94.020		5000 x 2500	70.000	549.05
6000 x 2500	12	94.020		2000 x 1000	75.000	588.075
2000 x 1000	12.05	98.013		2500 x 1250	75.000	588.075
2500 x 1250	12.05	98.013		3000 x 1500	75.000	588.075
3000 x 1500	12.05	98.013		4000 x 2000	75.000	588.075
3050 x 1525	12.05	98.013		5000 x 2500	75.000	588.075
4000 x 1750	12.05	98.013		2000 x 1000	80.000	628.000
4000 x 2000	12.05	98.013		2500 x 1250	80.000	628.000
5000 x 2500	12.05	98.013		3000 x 1500	80.000	628.000
6000 x 1500	12.05	98.013		4000 x 2000	80.000	628.000
6000 x 2000	12.05	98.013		2000 x 1000	90.000	706.05
6000 x 2500	12.05	98.013	2500 x 1250	90.000	706.05
2000 x 1000	15	117.075	3000 x 1500	90.000	706.05
2500 x 1250	15	117.075	4000 x 2000	90.000	706.05
3000 x 1500	15	117.075	5000 x 2000	90.000	706.05
4000 x 1750	15	117.075	2000 x 1000	100.000	785.000
4000 x 2000	15	117.075	2500 x 1250	100.000	785.000
4000 x 2500	15	117.075	3000 x 1500	100.000	785.000
5000 x 2500	15	117.075	4000 x 2000	100.000	785.000
6000 x 2500	15	117.075	5000 x 2500	100.000	785.000
2500 x 1250	20	157.000	2000 x 1000	110.000	863.050
3000 x 1500	20	157.000	2500 x 1250	110.000	863.050
4000 x 2000	20	157.000	3000 x 1500	110.000	863.050
4000 x 2500	20	157.000	2000 x 1000	115.000	902.075
5000 x 2500	20	157.000	2500 x 1250	115.000	902.075
6000 x 2000	20	157.000	3000 x 1500	115.000	902.075
7500 x 2500	20	157.000	2000 x 1000	120.000	942.000
8000 x 2000	20	157.000	2500 x 1250	120.000	942.000
10000 x 3000	20	157.000	3000 x 1500	120.000	942.000
2000 x 1000	22.050	176.063	2000 x 1000	130.000	1020.050
2500 x 1250	22.050	176.063	2500 x 1250	130.000	1020.050
3000 x 1500	22.050	176.063	3000 x 1500	130.000	1020.050
4000 x 2000	22.050	176.063	4000 x 2000	130.000	1020.050
5000 x 2500	22.050	176.063	2000 x 1000	135.00	1059.075
2000 x 1000	25.000	196.025	2500 x 1250	135.00	1059.075
2500 x 1250	25.000	196.025	2000 x 1000	140.000	1099.000
3000 x 1500	25.000	196.025	2500 x 1250	140.000	1099.000
4000 x 2000	25.000	196.025	3000 x 1500	140.000	1099.000
5000 x 2500	25.000	196.025	2000 x 1000	150.000	1177.05
6000 x 2500	25.000	196.025	2500 x 1250	150.000	1177.05
6000 x 3000	25.000	196.025	3000 x 1500	150.000	1177.05
8000 x 2000	25.000	196.025
10000 x 2500	25.000	196.025

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Structural Steel Sheet and Plates

Structural steel plates and sheets are widely applied in building and heavy engineering construction. They are major elements in building frameworks, bridges, shipbuilding, heavy machines, and industrial equipment. These are crucial for carrying structures, reinforcements, and structural component fabrication that must possess strength and durability. Structural steel plates and sheets can withstand mechanical stress and weather conditions, making them suitable for long-term, safe, and efficient infrastructure development in commercial, industrial, and residential areas.
