SA 516 grade 65 Sheets and Plates

Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, stands out as a top provider of high-performance steel products for a variety of industrial sectors. The company focuses on SA 516 Grade 65 Sheets and Plates, specifically crafted for pressure vessel applications that operate at moderate to low temperatures. Renowned for their impressive notch toughness, weldability, and strength, these plates are perfect for boilers, pressure vessels, and heat exchangers. Hassan is committed to meeting international standards, ensuring that their materials adhere to strict mechanical and chemical specifications, serving industries like petrochemicals, power generation, oil and gas, and heavy engineering throughout the Middle East.

SA516 Grade 65 Pressure Vessel Plates Saudi Arabia, ASTM A516 Grade 65 Boiler Quality Plates United kingdom, SA516 Gr 65 BQ Plates Riyadh, SA 516 Gr 65 Hot Rolled Boiler Steel Plates Ras Al Khair, ASTM A516 Gr 65 Plates Al Jubail, SA516 Gr.65 Boiler Steel Plates Jeddah, A516 Grade 65 Boiler Plates Distributor Dammam, ASME SA 516 Gr 65 Boiler & Pressure Vessel Stockist in Riyadh, Saudi Arabia.

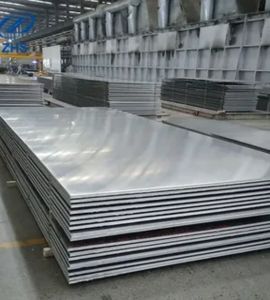

ASME SA516 Gr 65 Carbon Steel Plate

SA 516 Lower Temperature Carbon Steel Grade 65 Plates

A516 Grade 65 HR Boiler Plates

ASME SA516 Gr 65 Carbon Steel Plate Saudi Arabia, SA 516 Lower Temperature Carbon Steel Grade 65 Plates Dealer United kingdom, A516 Grade 65 HR Boiler Plates Riyadh, ASTM A516 Gr 65 Boiler Plates Exporter Ras Al Khair, SA 516 Gr 65 Carbon Steel Pressure Vessel Plates Al Jubail, SA516 Grade 65 Pressure Vessel & Boiler Plates Supplier in Jeddah, SA285 Gr.A Boiler Steel Plates Dammam.

SA 516 Grade 65 is a carbon steel plate designed for moderate-temperature pressure vessel service. Its chemical makeup includes a maximum carbon content of 0.26%, manganese ranging from 0.85% to 1.20%, and limits of 0.035% for both phosphorus and sulfur. This material boasts excellent mechanical properties, featuring a minimum yield strength of 240 MPa and tensile strength between 450 and 585 MPa. It also provides good ductility, weldability, and notch toughness, especially when normalized. These characteristics make SA 516 Grade 65 a dependable option for pressure-retaining applications in both static and dynamic environments.

SA 516 grade 65 Sheets and Plates Specification

Grade : ASME SA 516 GR.65 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3 – 200 mm/ dimensions up to 4.000 mm
Length : 3000mm-11000mm.
Production : Hot-Rolled (HR)
Heat Treatment : Rolled/Normalised/N+T/QT

Chemical Composition Of SA 516 grade 65 Sheets and Plates

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.08/0.20	0.4	0.9/1.5	0.03	0.03	0.02	0.3	0.3	0.3	0.08	0.01	0.03	0.02

Mechanical Properties Of SA 516 grade 65 Sheets and Plates

Tensile strength (ksi)	Tensile strength (MPa)	Yield strength (ksi)	Yield strength (MPa)	Elongation in 200mm (min)(%)	Elongation in 50mm (min) (%)
65-85	450-585	35	240	19	23

SA516 Grade 65 Pressure Vessel Plates Saudi Arabia, ASTM A516 Grade 65 Boiler Quality Plates United kingdom, SA516 Gr 65 BQ Plates Riyadh, SA 516 Gr 65 Hot Rolled Boiler Steel Plates Ras Al Khair, ASTM A516 Gr 65 Plates Al Jubail, SA516 Gr.65 Boiler Steel Plates Jeddah, A516 Grade 65 Boiler Plates Distributor Dammam, ASME SA 516 Gr 65 Boiler & Pressure Vessel Stockist in Riyadh, Saudi Arabia.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest SA 516 grade 65 Sheets and Plates Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

ASME SA516 Gr 65 Carbon Steel Plate Saudi Arabia, SA 516 Lower Temperature Carbon Steel Grade 65 Plates Dealer United kingdom, A516 Grade 65 HR Boiler Plates Riyadh, ASTM A516 Gr 65 Boiler Plates Exporter Ras Al Khair, SA 516 Gr 65 Carbon Steel Pressure Vessel Plates Al Jubail, SA516 Grade 65 Pressure Vessel & Boiler Plates Supplier in Jeddah, SA285 Gr.A Boiler Steel Plates Dammam.

Types of SA 516 grade 65 Sheets and Plates

Are Custom Sizes Available for SA 516 grade 65 Sheets and Plates?

Yes, we offer custom sizes for SA 516 grade 65 Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of SA 516 grade 65 Sheets and Plates

SA 516 Grade 65 Sheets and Plates find extensive use in pressure vessels, boilers, heat exchangers, and storage tanks that function under moderate temperatures and internal pressure. These plates are prevalent in the oil & gas, power generation, chemical, and refining sectors. Their blend of strength, toughness, and weldability makes them perfect for crafting components that endure stress and fluctuating thermal conditions. They are particularly prized in settings where maintaining structural integrity and safety is crucial over the long haul.
