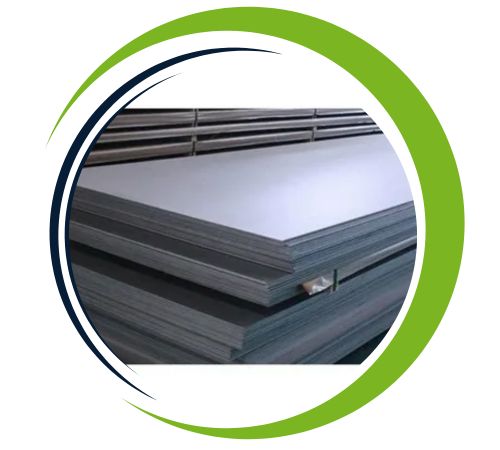

SA 515 Grade 60 Sheets and Plates consist of carbon (0.24–0.31%), manganese (0.60–0.90%), silicon (0.15–0.40%), phosphorus (0.035% max), and sulfur (0.035% max). This well-balanced composition delivers impressive strength and thermal stability at high temperatures. On the mechanical side, SA 515 Grade 60 boasts a minimum yield strength of 220 MPa and tensile strength between 415–550 MPa. It provides excellent ductility, toughness, and weldability, ensuring dependable performance under high-pressure and thermal stress conditions. Its resistance to deformation and cracking makes it an ideal choice for heavy-duty boiler and pressure vessel construction.
| Specifications | ASTM A515 Gr. 60 / ASME A515 Grade 60 | |
| Thickness |
| |
| Length | 3000 mm – 8000 mm | |
| Width | 1500-3500mm | |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) | |
| Finish | Cold rolled sheet (CR), Hot rolled plate (HR) | |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| A515 Grade 60 | 0.24-0.31 | 0.98 max | 0.035 max | 0.035 max | 0.13-0.45 |
| Grade | Thickness | Yield | Tensile | Elongation |
|---|---|---|---|---|
| A515 Grade 60 | 50-200mm | MPa -220 min | MPa – 415-550 | 21-25% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
SA 515 Grade 60 Sheets and Plates are a go-to choice in industries that need both strength and thermal resistance for pressure-containing applications. You’ll often find them in the making of boilers, pressure vessels, heat exchangers, and storage tanks. In the petrochemical sector, they play a crucial role in reactors, separators, and refinery equipment. Power generation plants rely on these plates for steam drums and headers, while chemical plants use them in equipment that handles high temperatures. Their impressive durability, ease of welding, and ability to withstand thermal stress make them a top pick for essential industrial applications.
Yes, we offer custom sizes for ASTM SA 515 grade 60 Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
SA 515 Grade 60 sheets and plates are widely used in industries requiring high strength and resistance to elevated temperatures and pressure. Common applications include the manufacturing of boilers, pressure vessels, heat exchangers, and storage tanks. They are also used in the petrochemical, chemical, and power generation industries for critical components that must withstand thermal stress and high-pressure environments. Additionally, these materials are ideal for constructing piping systems and other structural components where strength, durability, and performance under extreme conditions are essential.
