SA 516 grade 60 Sheets and Plates

Hassan Sheets and Plate Manufacturer and Supplier, located in Riyadh, Saudi Arabia, stands out as a top provider of premium steel sheets and plates tailored for industrial and pressure vessel needs. With a focus on SA 516 Grade 60 Sheets and Plates, the company delivers dependable materials celebrated for their outstanding weldability, notch toughness, and strength. Perfect for low- to moderate-temperature applications, these plates find their place in boilers, storage tanks, and heat exchangers. Committed to upholding international standards, precision manufacturing, and prompt delivery, Hassan caters to the energy, petrochemical, and fabrication sectors across Saudi Arabia and the wider Middle East.

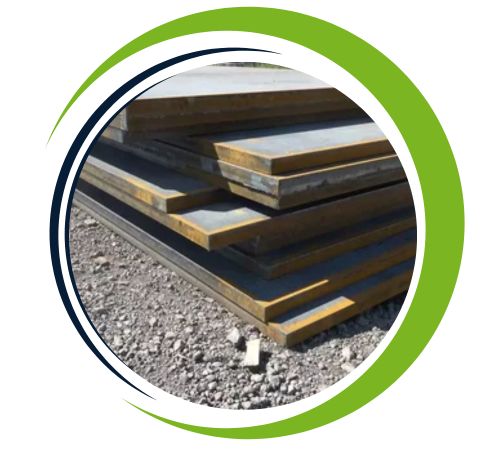

SA516 Grade 60 Pressure Vessel Plates Saudi Arabia, ASTM A516 Grade 60 Boiler Quality Plates United kingdom, SA516 Gr 60 BQ Plates Riyadh, SA 516 Gr 60 Hot Rolled Boiler Steel Plates Ras Al Khair, ASTM A516 Gr 60 Plates Al Jubail, SA516 Gr.60 Boiler Steel Plates Jeddah, A516 Grade 60 Boiler Plates Distributor Dammam, ASME SA 516 Gr 60 Boiler & Pressure Vessel Stockist in Riyadh, Saudi Arabia.

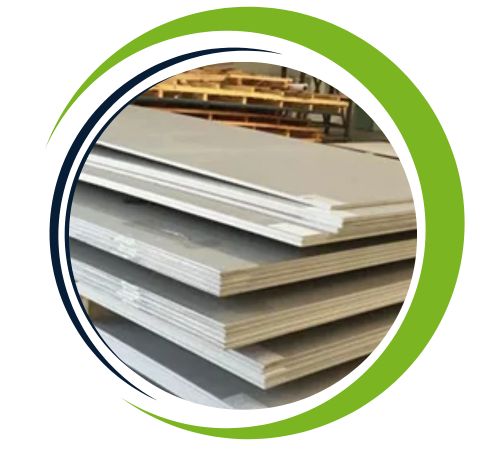

ASME SA516 Gr 60 Carbon Steel Plate

SA 516 Lower Temperature Carbon Steel Grade 60 Plates

A516 Grade 60 HR Boiler Plates

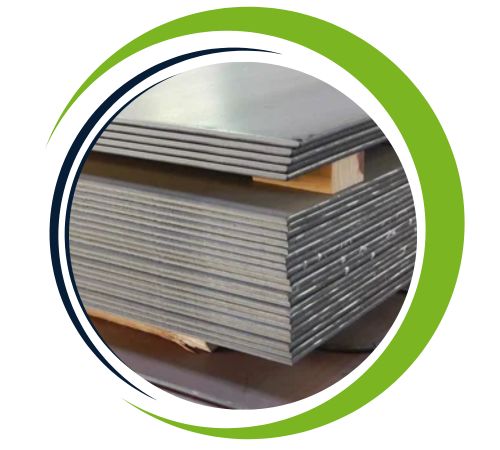

ASME SA516 Gr 60 Carbon Steel Plate Saudi Arabia, SA 516 Lower Temperature Carbon Steel Grade 60 Plates Dealer United kingdom, A516 Grade 60 HR Boiler Plates Riyadh, ASTM A516 Gr 60 Boiler Plates Exporter Ras Al Khair, SA 516 Gr 60 Carbon Steel Pressure Vessel Plates Al Jubail, SA516 Grade 60 Pressure Vessel & Boiler Plates Supplier in Jeddah, SA285 Gr.A Boiler Steel Plates Dammam.

When it comes to the composition and mechanical properties of SA 516 Grade 60 Sheets and Plates, this carbon steel plate is primarily made up of carbon (max 0.21%), manganese (0.55–1.00%), phosphorus (max 0.035%), and sulfur (max 0.035%). Engineered for moderate- to low-temperature pressure vessel service, it boasts excellent weldability and notch toughness. The mechanical specs include a minimum yield strength of 260 MPa and tensile strength ranging from 415 to 550 MPa, along with good ductility and formability. These plates undergo normalization to enhance toughness, making them ideal for pressure-containing equipment that faces varying temperature and pressure conditions in challenging industrial settings.

SA 516 grade 60 Sheets and Plates Specification

Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT

Chemical Composition Of SA 516 grade 60 Sheets and Plates

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.18	0.4	0.95/1.50	0.015	0.008	0.02 (Min)	0.3	0.3	0.3	0.08	0.01	0.03	0.02

Mechanical Properties Of SA 516 grade 60 Sheets and Plates

Tensile strength (ksi)	Yield strength (ksi)	Elongation min, % 200 mm (8 in)	Elongation min, % 50 mm (2 in)
485-620 (70-90)	260 (38)	17	21

SA516 Grade 60 Pressure Vessel Plates Saudi Arabia, ASTM A516 Grade 60 Boiler Quality Plates United kingdom, SA516 Gr 60 BQ Plates Riyadh, SA 516 Gr 60 Hot Rolled Boiler Steel Plates Ras Al Khair, ASTM A516 Gr 60 Plates Al Jubail, SA516 Gr.60 Boiler Steel Plates Jeddah, A516 Grade 60 Boiler Plates Distributor Dammam, ASME SA 516 Gr 60 Boiler & Pressure Vessel Stockist in Riyadh, Saudi Arabia.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest SA 516 grade 60 Sheets and Plates Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

ASME SA516 Gr 60 Steel Plate Saudi Arabia, SA 516 Lower Temperature Carbon Steel Grade 60 Plates Dealer United kingdom, A516 Grade 60 HR Boiler Plates Riyadh, ASTM A516 Gr 60 Boiler Plates Exporter Ras Al Khair, SA 516 Gr 60 Carbon Steel Pressure Vessel Plates Al Jubail, SA516 Grade 60 Pressure Vessel & Boiler Plates Supplier in Jeddah, SA285 Gr.A Boiler Steel Plates Dammam.

Types of SA 516 grade 60 Sheets and Plates

Are Custom Sizes Available for SA 516 grade 60 Sheets and Plates?

Yes, we offer custom sizes for SA 516 grade 60 Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of SA 516 grade 60 Sheets and Plates

SA 516 Grade 60 Sheets and Plates are extensively utilized in pressure vessels, boilers, storage tanks, heat exchangers, and various industrial process equipment. They are particularly well-suited for the oil and gas and power generation sectors, especially where moderate strength and solid weldability are crucial. These plates consistently perform well in low- to moderate-temperature environments and are frequently selected for applications in chemical processing, refineries, and thermal power plants. Their durability under pressure and stress over extended service periods makes them a go-to choice for many industries.
