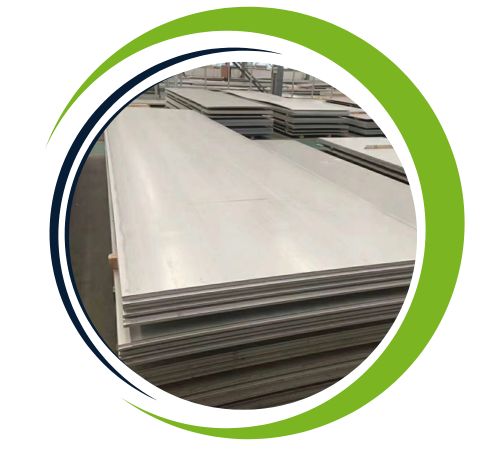

Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, proudly offers top-notch **C60 High Carbon Steel Sheets and Plates**. These products are specifically crafted for applications that demand exceptional hardness, strength, and wear resistance. C60 is a high carbon steel grade that finds its place in tool manufacturing, engineering, and the automotive sector. At Hassan, we provide C60 sheets and plates in a wide range of sizes and thicknesses, catering to the rigorous demands of industries throughout Saudi Arabia and the GCC.
Our C60 High Carbon Steel Sheets and Plates contain around **0.60% Carbon and 0.60–0.90% Manganese**, delivering **high tensile strength (up to 800 MPa)** and impressive surface hardness after heat treatment. Although the high carbon content limits weldability, this alloy shines in terms of **wear resistance, toughness, and strength** when properly hardened and tempered. It’s versatile enough for both cold and hot working applications.
| Thickness Range | 0.10 – 5.00 MM |
| Width Range | 5.00 – 1250 MM |
| Form | Can be supplied in Coil or Sheet form |
| Sheet Length (CTL) | 300 – 3000 MM |
| Edge | Mill edge or Sheared edge |
| Coil / Sheet Pallet Weight | Weight of each Coil or Sheet pallet can be customized as per customer’s need |
| Coil ID / OD | ID or OD of each Coil can be customized as per customer’s need |
| Packing | High-end export packing for sea or road travel, completely safe during transit. Duly oiled with anti-rust oil, wrapped in hessian cloth & high-density plastic sheets to prevent moisture. Further strapped with high tensile strips. For identification & tracing, non-erasable polyester stickers are placed on each material |
| Delivery Time | Dispatched within 10 days to 2 months, depends upon the required size |
| Some Applications | Auto components such as Washers, Clutch components, various types of Springs, Pen Clips, Hanger Clips, Cycle/Motor Chains, etc. |
Grade |
C |
Mn |
P |
S |
Si |
Cr |
Mo |
Ni |
Cr+Mo+Ni |
C60/1.0601 |
0.57-0.65 |
0.60-0.90 |
≤ 0.045 |
≤ 0.045 |
≤ 0.4 |
≤ 0.4 |
≤ 0.1 |
≤ 0.4 |
≤ 0.63 |
C60E/1.1221 |
0.57-0.65 |
0.60-0.90 |
≤ 0.03 |
≤ 0.035 |
≤ 0.4 |
≤ 0.4 |
≤ 0.1 |
≤ 0.4 |
≤ 0.63 |
C60R/1.1223 |
0.57-0.65 |
0.60-0.90 |
≤ 0.03 |
0.02-0.04 |
≤ 0.4 |
≤ 0.4 |
≤ 0.1 |
≤ 0.4 |
≤ 0.63 |
Mechanical properties a at room temperature in the quenched and tempered condition (+QT) |
|||
Diameter d mm |
≤ 16 |
16-40 |
40-100 |
Thickness t mm |
< 8 |
8-20 |
20-60 |
Yield Strength Mpa |
≥580 |
≥520 |
≥450 |
Tensile Strength Mpa |
850-1000 |
800-950 |
750-900 |
Elongation, % |
≥11 |
≥13 |
≥14 |
Reduction of area ,% |
≥25 |
≥30 |
≥35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
C60 High Carbon Steel Plates offer several advantages, including outstanding strength and hardness, making them ideal for heavy-duty applications. Their high tensile and yield strength provide excellent load-bearing capabilities, while their wear resistance ensures long-lasting durability, even in harsh conditions. These plates also exhibit good machinability, allowing for precise fabrication to meet specific design requirements. The toughness of C60 steel ensures it resists deformation under high stress. Cost-effective and reliable, C60 High Carbon Steel Plates are widely used in automotive, manufacturing, and construction industries, delivering consistent performance in demanding environments.
Yes, we offer custom sizes for C60 High Carbon Steel Sheet and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
USA |
Saudi Arabia |
China |
Japan |
Australia |
1060 |
070M60 |
60# |
S60C |
1060 |
C60 High Carbon Steel Plates are widely used in industries that require high strength and durability. They are commonly used in the manufacture of machine components like gears, shafts, and axles, as well as cutting tools, dies, and molds that experience heavy wear. These plates are ideal for the production of automotive parts, pressure vessels, and structural elements that must withstand significant stress. Additionally, C60 steel plates are used in heavy-duty industrial applications such as mining, construction, and manufacturing, providing reliable performance in challenging environments.
