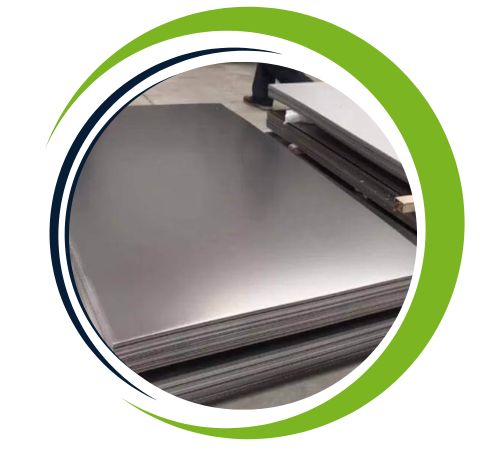

Hassan Sheets and Plate Manufacturer and Supplier, located in Riyadh, Saudi Arabia, is a reliable source for high-performance metal solutions tailored to meet a variety of industrial needs. They prioritize quality, durability, and exceptional service. One of their standout products is the Super Duplex Steel Sheet and Plates S32750, celebrated for its remarkable corrosion resistance, strength, and dependability in extreme conditions. These plates, sourced from reputable mills, adhere to global standards and are perfect for critical applications in marine, oil & gas, chemical, and offshore industries. Hassan Sheets guarantees timely delivery, customized sizing, and rigorous quality control for all their materials.
Super Duplex Steel S32750 is a high-alloy stainless steel that consists of about 25% chromium, 7% nickel, 4% molybdenum, and nitrogen, which gives it impressive resistance to pitting, crevice corrosion, and stress corrosion cracking. It features a dual-phase microstructure (ferrite and austenite) that provides a tensile strength of 750 MPa and a yield strength of around 550 MPa. Additionally, this material showcases excellent fatigue resistance, impact toughness (even in sub-zero temperatures), and good weldability. These mechanical properties make S32750 an excellent choice for challenging environments that require both strength and long-lasting corrosion resistance.
| Standard Specification : | Super Duplex Fittings |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
| Fitting Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Element | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
| Super Duplex Steel Pipe Fittings S32750 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 21.0 – 23.0 | 4.50 – 6.50 | 2.50 – 3.50 | 0.08 – 0.20 | 63.54 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Super Duplex Steel Pipe Fittings S32750 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yes, we offer custom sizes for Super Duplex Steel Sheet and Plates S32750 to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@hasansheetsplates.com.
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Super Duplex Steel S32750 Sheets and Plates find extensive use in industries that require exceptional strength and corrosion resistance in tough conditions. Typical applications include pressure vessels, heat exchangers, subsea piping systems, offshore platforms, desalination plants, and chemical processing equipment. Their impressive strength-to-weight ratio and outstanding corrosion resistance in chloride-rich and marine environments make them particularly suitable for the oil & gas and petrochemical sectors. These plates are also known for their reliability in demanding situations.
