Hassan Sheets and Plates is a reputable manufacturer and supplier of Monel K500 Sheets and Plates based in Riyadh, Saudi Arabia. They provide top-notch nickel-copper alloy products that are celebrated for their outstanding corrosion resistance, impressive strength, and long-lasting durability. Monel K500 is a precipitation-hardened nickel-copper alloy enriched with aluminum and titanium, which gives it remarkable mechanical properties and exceptional resistance to seawater, acids, and alkalis. At Hassan Sheets and Plates, they prioritize precision manufacturing and comply with international standards, delivering Monel K500 Sheets and Plates that are perfect for chemical, marine, aerospace, and industrial applications where reliability and longevity are crucial.
The composition of Monel K500 Sheets and Plates mainly includes nickel (63–67%), copper (28–34%), along with trace amounts of iron, manganese, carbon, aluminum, and titanium. This unique blend ensures excellent corrosion resistance in both oxidizing and reducing environments, as well as high tensile strength and fatigue resistance. In terms of mechanical properties, Monel K500 Sheets and Plates boast a tensile strength ranging from 830–1000 MPa, yield strength between 380–550 MPa, and good elongation. They also demonstrate remarkable toughness, wear resistance, and weldability, making them ideal for demanding industrial and structural applications.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

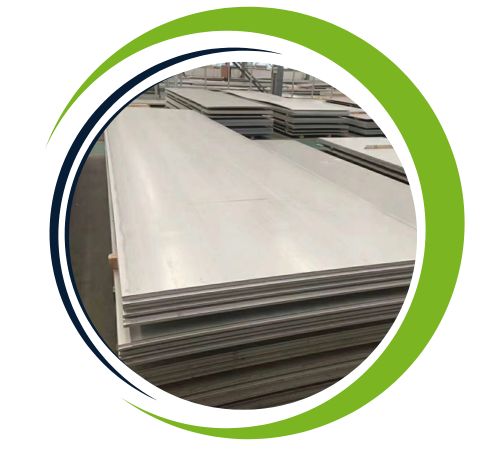

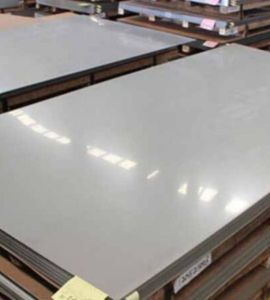

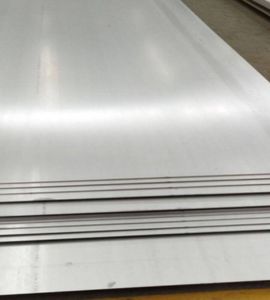

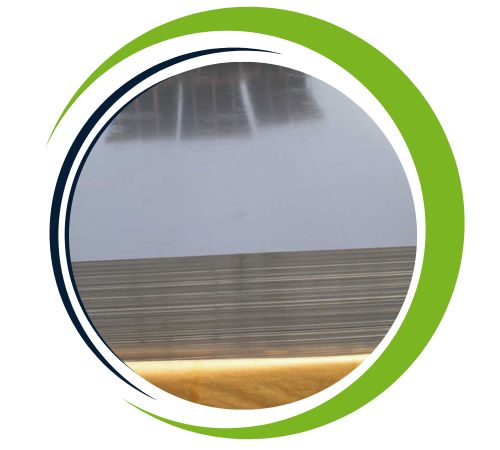

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel K500 Sheets and Plates offer several advantages, including exceptional corrosion resistance, particularly in seawater, alkaline and acidic environments. The addition of titanium and aluminum enhances the alloy’s strength, hardness, and resistance to stress corrosion cracking. Monel K500 also exhibits excellent fatigue and thermal-fatigue strength, making it ideal for high-stress applications. It provides excellent performance at both high and low temperatures, and its good weldability and formability make it suitable for complex shapes. These attributes make Monel K500 ideal for demanding industries such as aerospace, marine and chemical processing.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Monel K500 Sheets and Plates find extensive use in the marine industry for seawater piping, valves, pump shafts, and propeller components, thanks to their resistance to corrosion and biofouling. In the chemical and petrochemical sectors, they are utilized in heat exchangers, evaporators, and processing equipment that handle acids and alkalis. The aerospace and power generation industries also rely on them for high-strength components that endure cyclic loading and harsh environments. With their exceptional strength, corrosion resistance, and durability, Monel K500 Sheets and Plates are a dependable choice for critical industrial applications.
