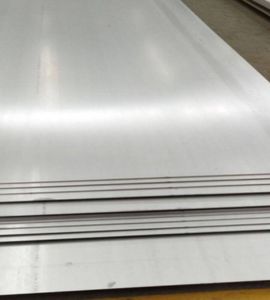

Hassan Sheets and Plate stands out as a top manufacturer and supplier of Monel 400 Sheets and Plates in Riyadh, Saudi Arabia. We take pride in providing corrosion-resistant, high-strength nickel-copper alloy materials that are perfect for even the toughest industrial settings. Our Monel 400 sheets and plates come in a variety of thicknesses, widths, and finishes, all meticulously crafted to meet the needs of marine, chemical processing, oil & gas, and aerospace industries. By strictly following international quality standards, we guarantee timely delivery, technical support, and customer satisfaction throughout Saudi Arabia and the Middle East.
Monel 400 Sheets and Plates are made up of about 67% nickel and 30% copper, along with trace amounts of iron and manganese. This alloy is renowned for its exceptional corrosion resistance, especially in seawater and both acidic and alkaline environments. Monel 400 boasts a tensile strength between 480–620 MPa and maintains its mechanical properties over a wide temperature range. It’s non-magnetic, highly ductile, and has good thermal conductivity. Plus, it’s easy to weld and form, making it a great choice for applications that face high pressure, chemical exposure, or mechanical stress.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

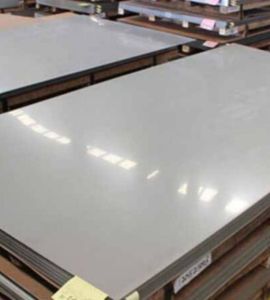

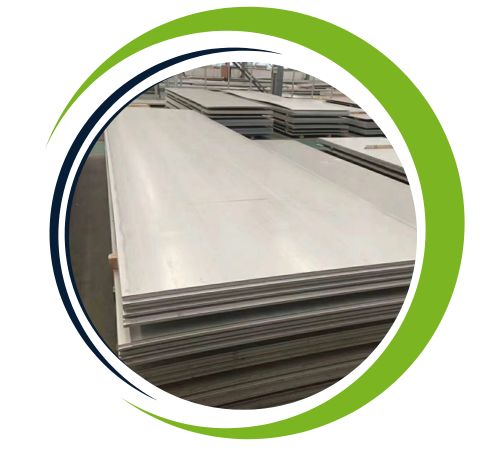

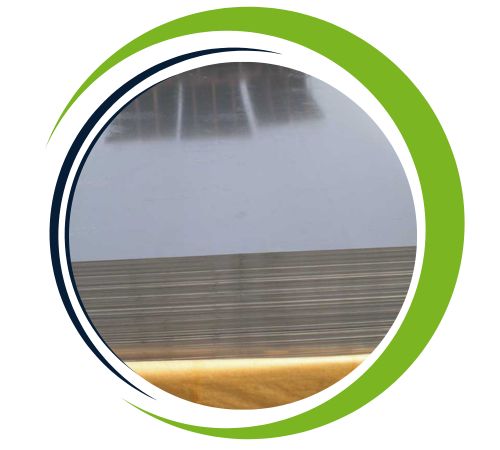

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |

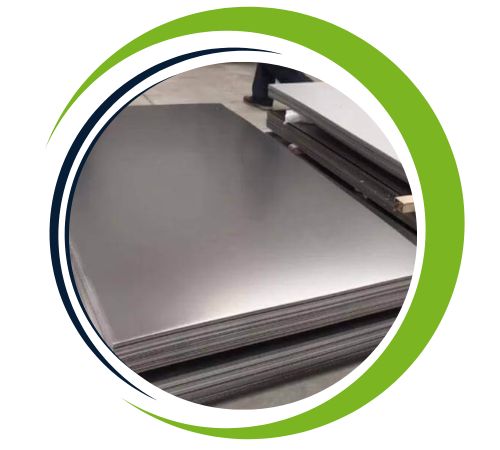

| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel 400 Sheets and Plates offer several key advantages including exceptional corrosion resistance, particularly in seawater, acids, and alkaline environments. They exhibit excellent strength and durability at both high and low temperatures, making them ideal for demanding industrial applications. With good weldability, formability and resistance to stress corrosion cracking. Monel 400 is versatile for various industries, including marine, chemical, and aerospace. Its resistance to oxidation and wear ensures long-term performance, reducing maintenance and replacement costs. Overall Monel 400 provides reliability, longevity, and high performance in harsh environments.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Monel 400 Sheets and Plates are commonly used in situations that require durability and corrosion resistance in extreme conditions. You’ll find them in heat exchangers, marine structures, pump and valve components, chemical storage tanks, offshore platforms, and condenser tubes. They excel in handling acidic and saltwater environments, making them perfect for coastal and underwater applications. Their strength and formability also make them ideal for custom-fabricated parts in the aerospace, defense, and energy sectors. With Monel 400, you can count on a long service life and reliability, even in the most aggressive operating conditions.
