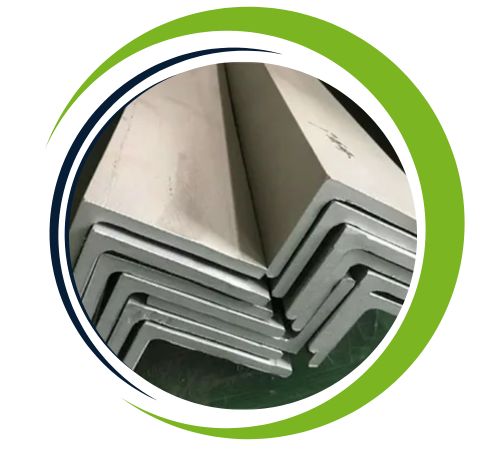

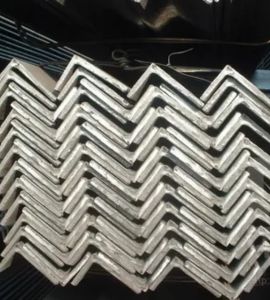

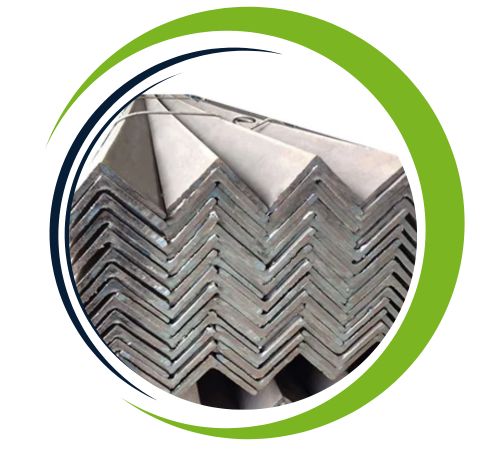

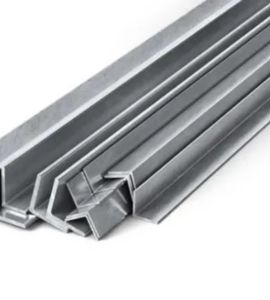

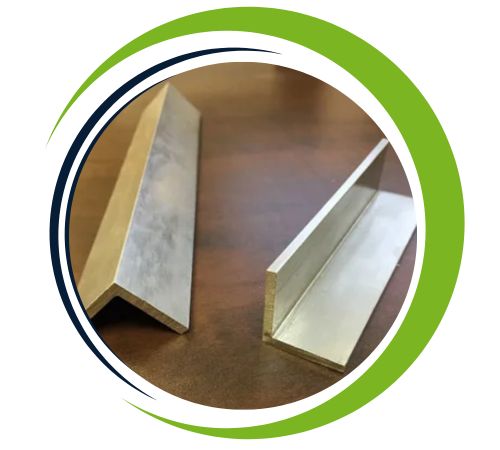

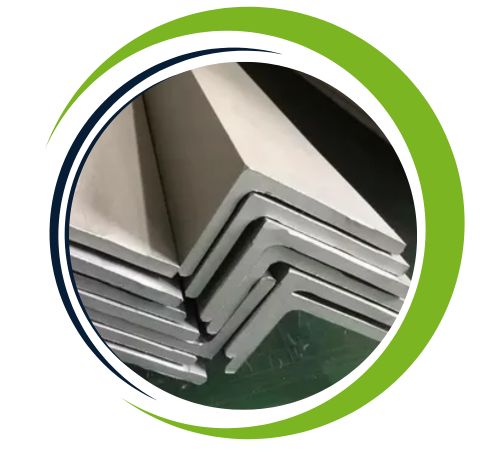

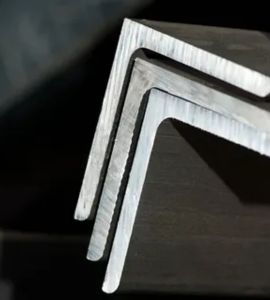

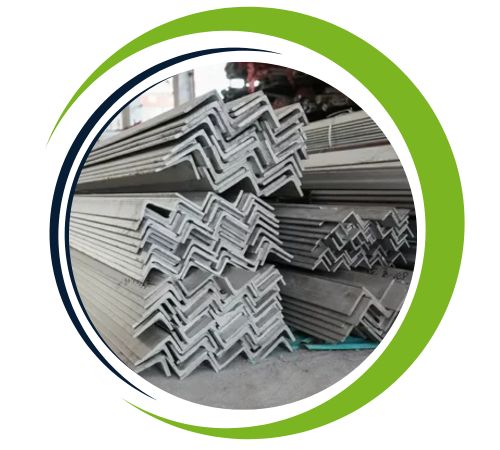

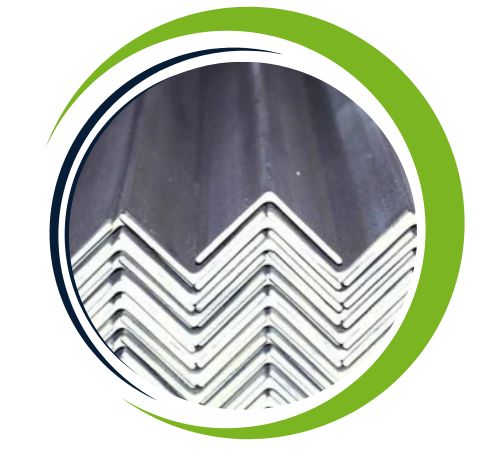

Hassan Sheets and Plate stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, focusing on high-quality products like **Incoloy Angle**. Known for their durability, strength, and precise finish, these angles are crafted to perform reliably in industries that face extreme temperatures and corrosive conditions. Incoloy Angle is prized for its remarkable resistance to oxidation, carburization, and chemical attacks, making it perfect for demanding applications. Hassan Sheets and Plate is committed to meeting global standards, ensuring timely deliveries, and providing cost-effective solutions, which has made them a trusted partner for various industrial sectors throughout Saudi Arabia and beyond.
Incoloy Angle is mainly made up of nickel, iron, and chromium, with certain grades enhanced by molybdenum, copper, and titanium to boost corrosion resistance. This alloy offers exceptional protection against both oxidizing and reducing agents, stress-corrosion cracking, and localized pitting. On the mechanical side, Incoloy Angle boasts high tensile and yield strength, excellent toughness, and stability at elevated temperatures. It also shows good creep resistance, workability, and weldability, ensuring it performs well in tough environments without sacrificing structural integrity.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy Angle | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy Angle | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy angle offers several key advantages, making it ideal for high-performance applications. Its excellent resistance to oxidation, corrosion, and high-temperature environments ensures long-lasting durability in harsh conditions. The alloy’s superior mechanical properties, including high tensile strength and creep resistance, make it suitable for demanding industries such as aerospace, power generation, and chemical processing. Incoloy angle also provides good weldability and formability, enabling ease of fabrication. Additionally, its resistance to sulfuric and hydrochloric acids, along with its ability to withstand extreme thermal conditions, enhances its versatility and reliability in complex engineering projects.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy Angle to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy Angle is widely used in industries that demand durability and corrosion resistance. It’s commonly found in chemical processing, petrochemical plants, pollution control equipment, and marine engineering. Its strength at high temperatures makes it ideal for heat exchangers, furnace components, and power generation systems. In the offshore and oil & gas sectors, Incoloy Angle is highly valued for its resistance to seawater and harsh chemicals. Its versatility and strength also make it suitable for nuclear fuel reprocessing and industrial piping systems, ensuring safety, reliability, and a long service life in critical operations.
