Incoloy 800/800H/800HT Sheets and Plates

Hassan Sheets and Plates is a well-respected manufacturer and supplier of Incoloy 800/800H/800HT Sheets and Plates based in Riyadh, Saudi Arabia. They offer top-notch nickel-iron-chromium alloy products that are renowned for their impressive strength, outstanding oxidation resistance, and durability even at high temperatures. These alloys are specifically crafted to endure prolonged exposure to harsh, corrosive environments, making them perfect for critical industrial applications. At Hassan Sheets and Plates, they prioritize precision manufacturing and comply with international standards, providing Incoloy 800/800H/800HT Sheets and Plates that are ideal for chemical processing, power generation, heat treatment, and refinery operations.

Incoloy 800 Sheets Dealer in Ras Al Khair, Incoloy 1.4876 Plates Supplier in Ras Al Khair, Incoloy 800H Sheets in Jeddah, 800 Incoloy Plates Size Chart, Incoloy 800HT Sheet Price in Dammam, Incoloy N08800 Plates Supplier in Saudi Arabia, 800HT Incoloy Sheet Stockist in Al Jubail, 800 Incoloy Alloy Sheets and Plates Exporter in Saudi Arabia, Incoloy 800 Sheet Stockist in Riyadh, 800H Incoloy Plates Supplier in Al Jubail

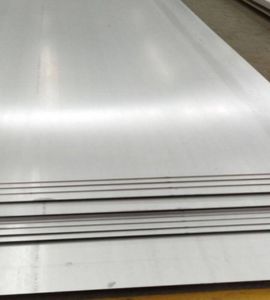

Incoloy 800H Cold Rolled Plates

Incoloy 800HT Hot Rolled Plates

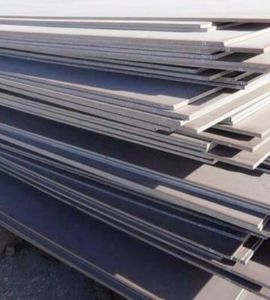

Incoloy 800 Clad Sheets and Plate

The composition of Incoloy 800/800H/800HT Sheets and Plates includes nickel (30–35%), chromium (19–23%), and iron (the balance), along with carefully controlled amounts of carbon, aluminum, and titanium. Incoloy 800 is known for its excellent resistance to oxidation and carburization, while Incoloy 800H and 800HT, which have higher carbon content and optimized aluminum-titanium levels, deliver enhanced creep and stress-rupture strength at elevated temperatures. Mechanically, these alloys provide a tensile strength of around 600 MPa, a yield strength of about 275 MPa, and good elongation, ensuring stability and performance even at temperatures reaching up to 1100°C.

Incoloy 800/800H/800HT Sheets and Plates Specification

Specifications:	ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Thickness:	4 mm To 100 mm
Length:	2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
Width:	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
Grade	800/ 800H/ 800HT/ 825
Application	Building industry,architectural decoration,elevators,building doors,panels and so on.
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface:	BA，2B，NO.1，NO.4，4K，HL，8K
Certification:	ISO, SGS，BV
Technique:	Cold Rolled Hot Rolled
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils

Incoloy 800/800H/800HT Sheets and Plates Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60

Incoloy 800/800H/800HT Sheets and Plates Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Equivalent Grades for 800/800H/800HT Incoloy Sheet and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

800H Incoloy Sheets Price in Dammam, 800HT Incoloy Hot Rolled Weight Chart, Incoloy N08810 Cold Rolled Supplier in Saudi Arabia, Stockist of Incoloy 800H Alloy Cold Rolled Sheets in Al Jubail, 800HT Incoloy Perforated Sheet Supplier in Saudi Arabia, Incoloy 800HT Perforated Plates Price List in Riyadh, Alloy 800 Perforated Plates Supplier in Al Jubail, Incoloy 800HT Chequered Plates Exporter in Ras Al Khair, Incoloy 1.4958 Polished Plates Exporter in Saudi Arabia, 800HT Incoloy Perforated Plates Exporter in Jeddah, 800HT Incoloy Sheet and Plate in Dammam

Weight Chart of 800/800H/800HT Incoloy Alloy Sheets and Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Imperial Dimensions of Incoloy 800/800H/800HT Sheets and Plates

Surface finish	Gauge (in)	Width (in)
2B – Cold rolled, heat treated, pickled, skin passed	10–24	max. 72*
2D – Cold rolled, heat treated, pickled	12–24	max. 60
BA Mexinox only	18–28	max. 48
Polished (not brushed)	11–24	max. 60
Temper rolled Mexinox only	13–29	max. 48

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 800/800H/800HT Sheets and Plates Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

DIN 1.4859 Incoloy Clad Sheets Distributor in Saudi Arabia, 800H Incoloy Perforated Plates Supplier in Riyadh, 800HT Incoloy Perforated Sheet Weight Chart, Incoloy 800 Plate Exporter in Al Jubail, 800 Incoloy Polished Sheets Manufacturer in Ras Al Khair, Incoloy 800HT Shim Sheet and Plate Price List in Saudi Arabia, 800HT Incoloy Chequered Plates Sizes in mm, Incoloy Alloy 800H Hot Rolled Plate Distributor in Jeddah, 800H Incoloy Sheets and Plates Dammam

Incoloy 800/800H/800HT sheets and plates provide excellent superior strength, corrosion resistance, and structural stability, making them ideal for heat exchangers, pressure vessels, and chemical applications Their nickel-steel- high temperature chromium system oxidation, carburization, sulfidation and resistance. Incoloy 800H and 800HT have enhanced creep, stress and rupture properties due to high carbon content and controlled titanium/aluminum ratio. Energy is stored at temperatures up to 1100°F (593°C), ensuring longevity. These alloys are also resistant to acidic environments, provide stability under extreme conditions, and are easy to fabricate, weld and machine for mass production.

Types of Incoloy 800/800H/800HT Sheets and Plates

UNS N08811 Incoloy Plates Manufacturer in Ras Al Khair, 800 Incoloy Plates and Sheets Jeddah, Incoloy 800H Mirror Finish Plates Supplier in Riyadh, 800HT Incoloy Polished Plates Exporter in Al Jubail, Incoloy 800HT Alloy Chequered Plates Price List in Saudi Arabia, Incoloy 800H Cold Rolled Plate Distributor in Jeddah, 800HT Incoloy Clad Plates and Sheets Supplier in Ras Al Khair, Incoloy 800 Sheet and Plate Distributor in Saudi Arabia, 800 Incoloy Perforated Plate Sizes in mm

Are Custom Sizes Available for Incoloy 800/800H/800HT Sheets and Plates?

Yes, we offer custom sizes for Incoloy 800/800H/800HT Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 800/800H/800HT Sheets and Plates

Incoloy 800/800H/800HT Sheets and Plates find extensive applications in the petrochemical and chemical industries, where they are used in heat exchangers, process piping, reactors, and furnace components. In power generation facilities, they are utilized in superheater tubes, steam lines, and high-temperature equipment. Additionally, they are commonly found in refinery units, pressure vessels, and thermal processing equipment, where heat and corrosion resistance are crucial. With their exceptional blend of strength, stability, and corrosion resistance, Incoloy 800/800H/800HT Sheets and Plates are a reliable choice for demanding industrial needs.
