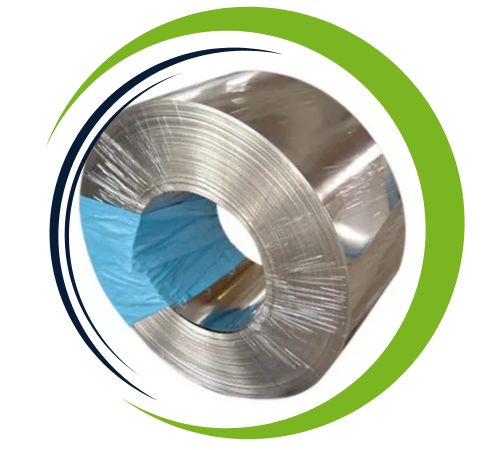

Hassan Sheets and Plate is a reliable manufacturer and supplier of Incoloy 800 Foils based in Riyadh, Saudi Arabia. Our Incoloy 800 foils are crafted for exceptional performance in high-temperature, oxidizing, and carburizing conditions. These precision-rolled foils come in a variety of thicknesses and widths, specifically designed for critical applications in the petrochemical, power generation, and thermal processing sectors. Built to meet international standards, our foils guarantee outstanding durability and precise dimensions. At Hassan Sheets and Plate, we are dedicated to providing top-notch materials, timely service, and reliable technical support to industries throughout Saudi Arabia and the broader Middle East.
Incoloy 800 Foils consist of nickel (30–35%), chromium (19–23%), and iron (the remainder), with added aluminum and titanium to boost high-temperature strength. This alloy boasts a tensile strength of around 500–700 MPa and offers excellent resistance to oxidation, carburization, and stress corrosion cracking. Incoloy 800 maintains its mechanical properties even at high temperatures, ensuring structural stability and ductility. These foils are also easy to weld and fabricate, making them perfect for precision components in challenging thermal or corrosive settings.
Specifications : ASTM / ASME SB 409
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Grade : Incoloy Alloy 800 (UNS No. N08800) Coils & Strips
Hardness : Soft, Hard, Half Hard, Spring Hard, etc.
Finish : Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated)
Other services : Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | GOST | OR | BS | JIS | EN |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | ЭИ670 | XH32T | NA 15 | NCF 800 | X10NiCrAlTi32-20 |
| Incoloy 800 | C | Cr | Fe | S | Ni | Mn | Si | Cu |
| 0.10 max | 19.00 – 23.00 | 39.50 min | 0.015 max | 30.00 – 35.00 | 1.50 max | 1.00 max | 0.75 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800 Foils offer exceptional advantages, making them ideal for demanding industrial applications. Their high-temperature strength ensures reliable performance in extreme environments, while excellent oxidation and carburization resistance prolongs service life. The alloy’s superior corrosion resistance in acidic and oxidizing conditions adds to its versatility. Incoloy 800 foils maintain mechanical stability under thermal cycling, reducing deformation risks. Their ease of fabrication and welding supports diverse manufacturing needs. Commonly used in heat exchangers, petrochemical equipment, and nuclear power plants, these foils are a trusted choice for durability and operational efficiency.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Incoloy 800 Foils to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy 800 Foils find extensive use in applications that demand resistance to heat, pressure, and oxidation. They are commonly used for furnace linings, thermal insulation wraps, radiant tubes, heat exchanger components, and chemical processing equipment. In power plants, you’ll find them in superheater and reheater tubing. Thanks to their flexibility and thin profile, these foils are also utilized in electrical and thermal insulation, sensor protection, and aerospace shielding. Incoloy 800 foils deliver long-lasting performance, particularly in high-temperature environments where standard stainless steels might fail or degrade.
