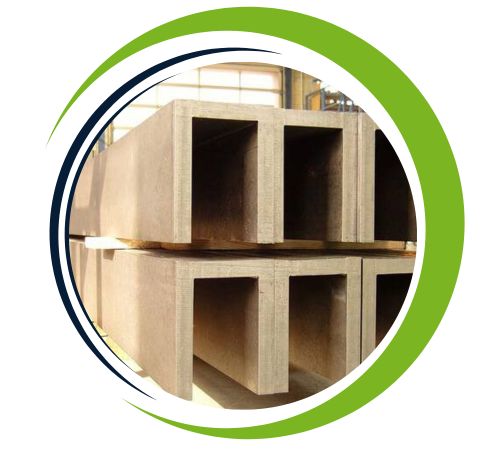

Hassan Sheets and Plate, a leading manufacturer and supplier based in Riyadh, Saudi Arabia, proudly offers top-quality **Incoloy 800 / 800H / 800HT Channels**. These channels are expertly crafted for high-temperature and corrosive industrial settings. Made from a nickel-iron-chromium alloy, they are essential for providing structural support in power plants, petrochemical facilities, heat treatment plants, and furnace construction. At Hassan, we provide Incoloy channels in a variety of sizes and thicknesses, ensuring that every product adheres to international quality standards. We’ve built a reputation as a reliable partner for clients throughout Saudi Arabia and the GCC who are in search of durable, high-performance metal solutions.
The composition of Incoloy 800 / 800H / 800HT Channels includes **Nickel (30–35%), Chromium (19–23%), and Iron (balance)**, along with carefully controlled amounts of **aluminum, titanium**, and varying **carbon content** to enhance specific characteristics. The 800H and 800HT variants feature higher carbon levels and optimized grain sizes, which contribute to improved **creep-rupture strength**. These channels are known for their outstanding resistance to oxidation, carburization, and sulfidation, even at temperatures reaching **1100°C (2012°F)**, with **tensile strength between 450 and 650 MPa**, depending on the specific grade and heat treatment.
Specifications : ASTM B408 / ASME SB408
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32 |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800 / 800H / 800HT Channels are commonly utilized in **support structures for heat exchangers, furnaces, reformer outlets, petrochemical processing equipment, and power plant boilers**. Their exceptional resistance to thermal fatigue, stress corrosion cracking, and scaling makes them perfect for **load-bearing and framing components** in harsh environments. These channels are vital for applications that demand long-term stability, mechanical integrity, and corrosion resistance at high temperatures, ensuring reliable performance and safety in the most challenging industrial conditions.
Yes, we offer custom sizes for Incoloy 800 / 800H / 800HT Channel to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy 800, 800H, and 800HT channels are widely used in industries requiring resistance to high temperatures and harsh environments. Common applications include chemical processing, power generation, and heat exchangers, where the alloys’ ability to withstand oxidation and carburization is crucial. They are also used in furnace components, reactor vessels, and petrochemical plants. Incoloy 800H and 800HT, with enhanced creep strength and stability at elevated temperatures, are ideal for equipment like gas turbines, industrial boilers, and other high-temperature machinery, ensuring long-term performance and reliability.
