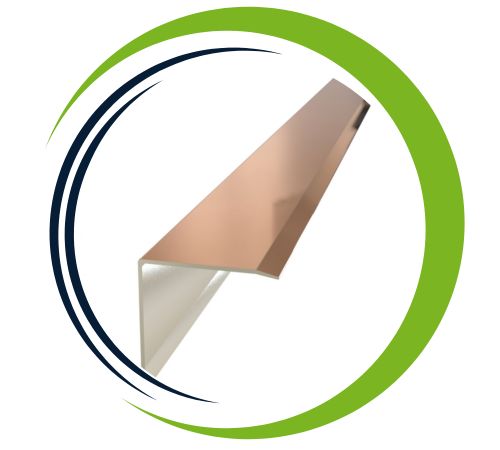

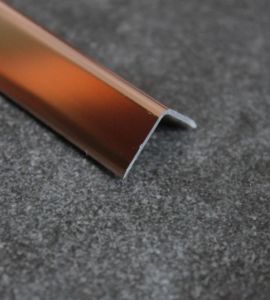

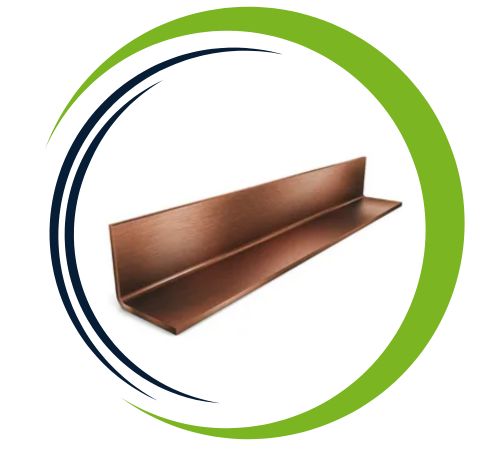

Hassan Sheets and Plate is a reliable manufacturer and supplier of Copper Nickel 90/10 Angles based in Riyadh, Saudi Arabia. Designed for exceptional corrosion resistance and structural strength, our Cu-Ni 90/10 angles are perfect for marine, offshore, and industrial uses. Crafted from top-notch copper-nickel alloy, these angles come in a variety of sizes and can be customized to fit the specific needs of seawater systems and chemical processing environments. At Hassan Sheets and Plate, we pride ourselves on timely delivery, expert technical support, and strict adherence to international quality standards throughout Saudi Arabia and the Middle East.
| Specifications | : | ASTM B151 / ASME SB151 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Cu-Ni 70/30 Angle | : | 5mm to 9mm |
| Cu-Ni 70/30 Channel | : | 40mm*20mm~300mm*300mm |
| Cu-Ni 70/30 Beam | : | 3″ thru 12.31″ |
| Cu-Ni 70/30 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90/10 | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Cupro Nickel 90/10 | 2.0872 | C70600 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Copper nickel 90/10 angles provide excellent corrosion resistance, especially in marine and coastal environments, due to resistance to sea corrosion, biocorrosion and stress corrosion cracking Their high strength-to-weight ratio makes them strong and capable reliable in construction applications. The alloys are easy to fabricate, weld and fabricate, increasing design flexibility. It also has excellent thermoelectric conductivity, ideal for heat exchangers and piping. When combined with iron and manganese, it resists corrosion and shock from turbulent water. A copper nickel 90/10 face ensures long, low-maintenance service, reducing overall operating costs.
You’ll find Copper Nickel 90/10 Angles commonly used in marine structures, shipbuilding, offshore oil and gas platforms, and desalination plants. They serve various purposes, including structural supports, framing systems, brackets, and reinforcement for piping that comes into contact with seawater and saline environments. Additionally, these angles are well-suited for condenser systems, cooling loops, and frameworks in chemical processing. Their resistance to biofouling, combined with mechanical durability and low maintenance requirements, makes them a fantastic choice for long-lasting structural applications in highly corrosive, submerged, or coastal settings.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
