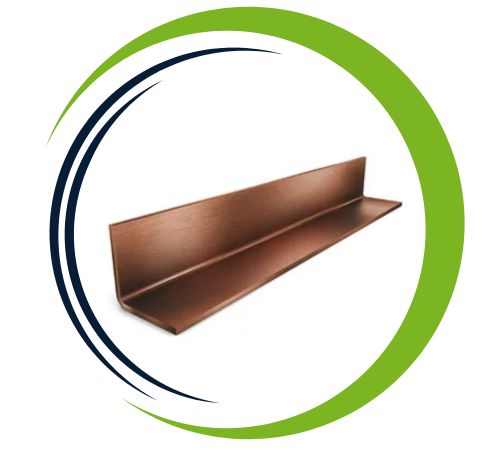

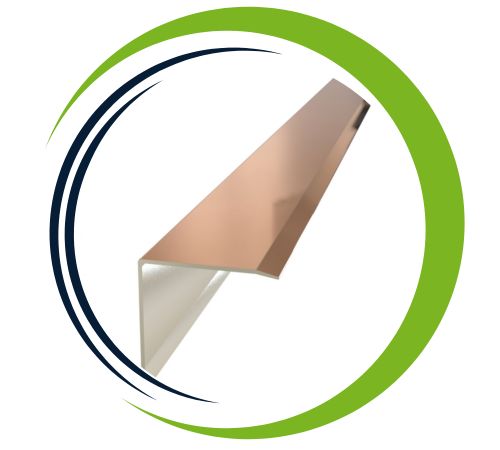

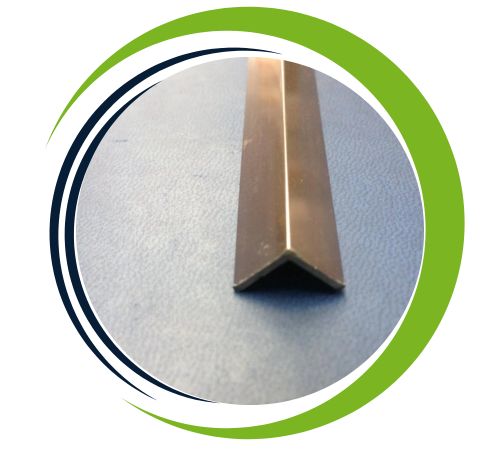

Hassan Sheets and Plate is your go-to manufacturer and supplier of Copper Nickel 70/30 Angles right here in Riyadh, Saudi Arabia. We take pride in offering top-notch Cu-Ni 70/30 alloy angles that are perfect for structural applications in tough marine, chemical, and industrial settings. Renowned for their exceptional strength and impressive resistance to seawater corrosion, our angles come in a range of sizes and thicknesses to meet the unique needs of your projects. At Hassan Sheets and Plate, we’re committed to providing precision-engineered products, prompt service, and ensuring full compliance with international standards throughout Saudi Arabia and the broader Gulf region.
| Specifications | : | ASTM B151 / ASME SB151 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Cu-Ni 70/30 Angle | : | 5mm to 9mm |
| Cu-Ni 70/30 Channel | : | 40mm*20mm~300mm*300mm |
| Cu-Ni 70/30 Beam | : | 3″ thru 12.31″ |
| Cu-Ni 70/30 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 70/30 | 65 min | 1.0 max | 0.05 max | 29-33 max | 0.4-1.0 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Copper Nickel 70 / 30 Angle has several advantages. Its exceptional corrosion resistance, especially in seawater, makes it ideal for the marine environment. The alloy’s high resistance to biofouling and scaling ensures long-term performance in marine heat exchanger applications. CuNi 70/30 offers excellent strength, excellent ductility, and is easy to manufacture, including welding and fabrication. It has a lot of thermal expansion, which makes it stable in temperature fluctuations. The alloy is also resistant to pitting, crevice corrosion and stress corrosion cracking, providing reliability in harsh industrial marine environments
You’ll find Copper Nickel 70/30 Angles being widely utilized in marine construction, shipbuilding, offshore platforms, and desalination plants. Their high resistance to seawater and biofouling makes them perfect for structural supports, frames, pipe brackets, and other load-bearing components in submerged or coastal areas. These angles are also commonly used in chemical processing plants, heat exchangers, and water treatment systems. With a long service life and minimal maintenance needs, Copper Nickel 70/30 angles provide a reliable and corrosion-resistant solution for challenging structural and environmental applications.
