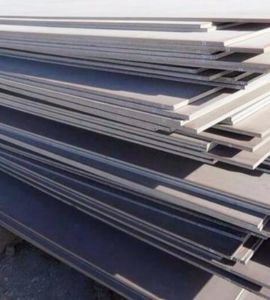

Hassan Sheets is a trustworthy producer and supplier based in Riyadh, Saudi Arabia, that provides a full range of high-quality sheet and plate industrial products. With expertise in Titanium Grade 5 sheets and plates, the company prides itself on providing materials that are up to global standards in terms of performance and longevity. Titanium Grade 5, or Ti-6Al-4V, is renowned for its high strength-to-weight ratio and corrosion resistance. Hassan Sheets supplies industries like aerospace, medical, marine, and engineering with reliable solutions that fit the requirements of stringent operations.
Titanium Grade 5 sheets and plates are made up of about 90% titanium, 6% aluminum, and 4% vanadium. The alloy is strong with a tensile strength of around 895 MPa and a yield strength of around 828 MPa, having good ductility and toughness. It also offers superior corrosion resistance in most environments, including marine and chemical. The metal is weldable and heat treatable, with good weldability, which improves its mechanical properties for high-performance applications. Its strength and balanced composition make it perfect for structural and critical parts.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

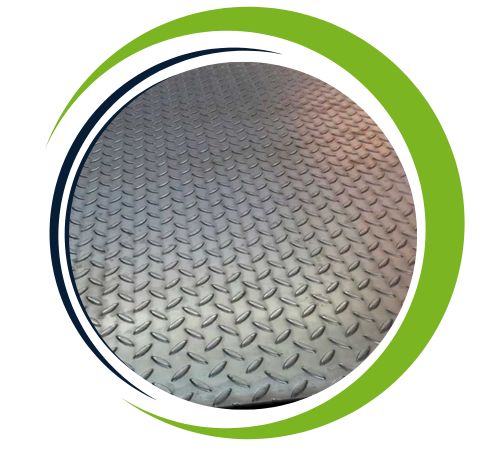

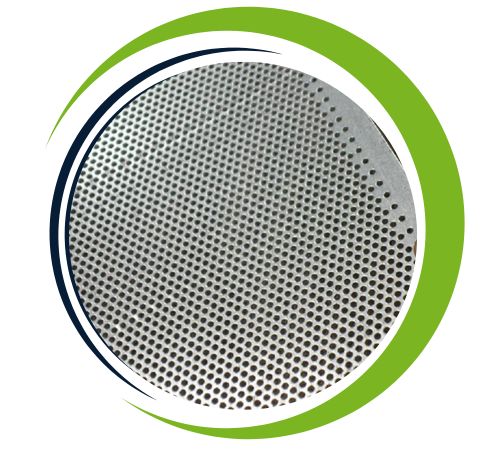

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

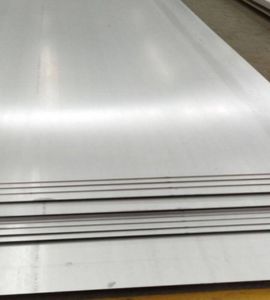

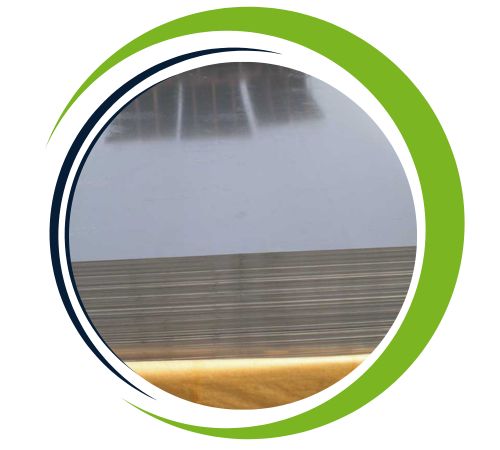

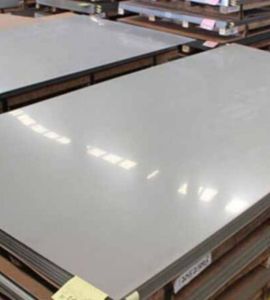

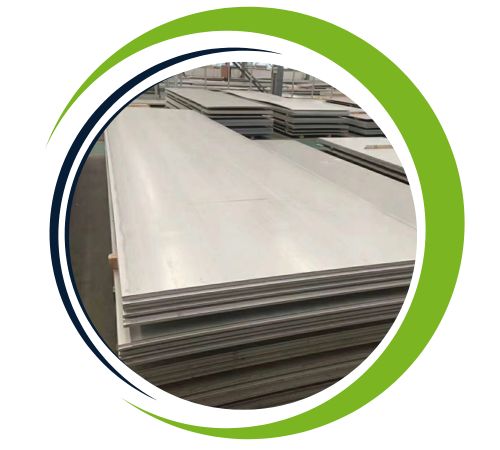

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 (Ti-6Al-4V) sheets and plates offer exceptional strength-to-weight ratio, making them ideal for aerospace, automotive, and marine applications. They are highly corrosion-resistant, including in seawater and aggressive chemicals, ensuring long-term durability. Their high-temperature resistance allows them to perform in extreme environments. Titanium Grade 5 also boasts excellent fatigue resistance, low thermal expansion, and biocompatibility, making it suitable for medical devices. Additionally, it is lightweight, offering enhanced performance without compromising structural integrity while being easily machinable and weldable for versatile applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Titanium Grade 5 sheets and plates are employed in a vast number of high-performance industries because of their superior strength and corrosion resistance. In the aerospace industry, they are used for airframe parts, engine parts, and fasteners. In medicine, they are suited for surgical instruments and implants because they are biocompatible. They also find use in marine equipment, power generation, and chemical processing plant equipment. Their high-temperature resistance and aggressive environment resistance make them the preferred material for high-stress and critical applications.
