Hassan Sheets and Plates is a well-respected manufacturer and supplier of Monel K500 Circles based in Riyadh, Saudi Arabia. They offer top-notch nickel-copper alloy products that are celebrated for their remarkable corrosion resistance, impressive strength, and long-lasting durability. Monel K500 is a precipitation-hardened nickel-copper alloy enriched with aluminum and titanium, which gives it exceptional mechanical properties while still resisting seawater, acids, and alkalis. At Hassan Sheets and Plates, they prioritize precision manufacturing and adhere to international standards, providing Monel K500 Circles that are perfect for chemical, marine, aerospace, and industrial applications where reliability and long-term performance are essential.
These Monel K500 Circles consist of 63–67% nickel, 28–34% copper, along with trace amounts of iron, manganese, carbon, aluminum, and titanium. This unique blend grants them excellent resistance to both oxidizing and reducing environments, high tensile strength, and outstanding fatigue resistance. In terms of mechanical properties, Monel K500 Circles boast a tensile strength ranging from 830 to 1000 MPa, yield strength between 380 and 550 MPa, and good elongation, all while offering excellent toughness, wear resistance, and weldability—ensuring they stand the test of time in demanding applications.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

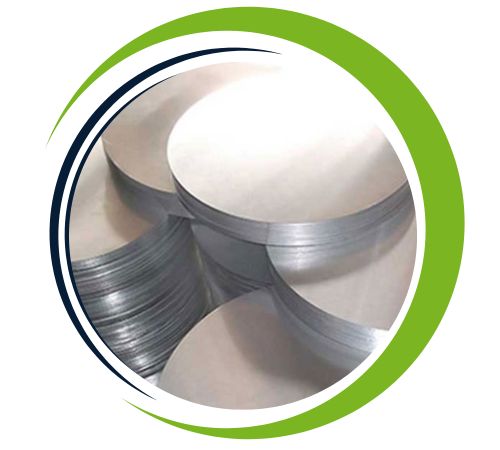

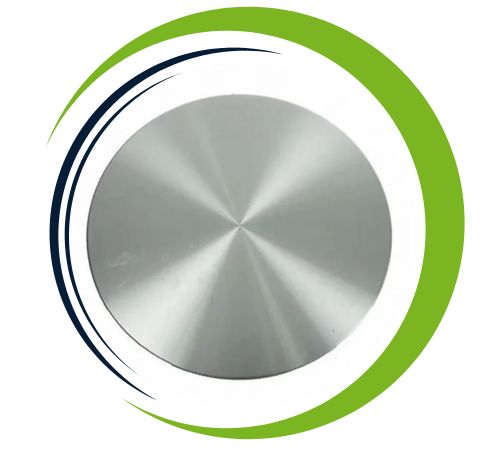

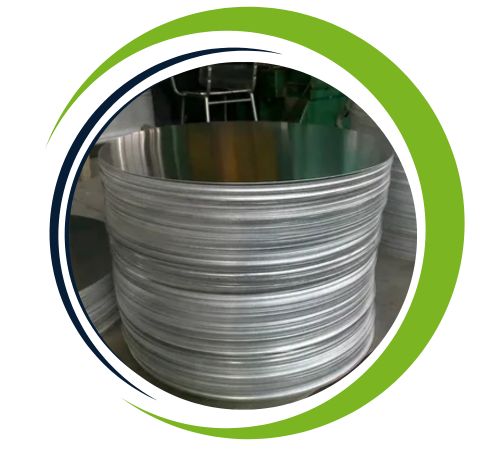

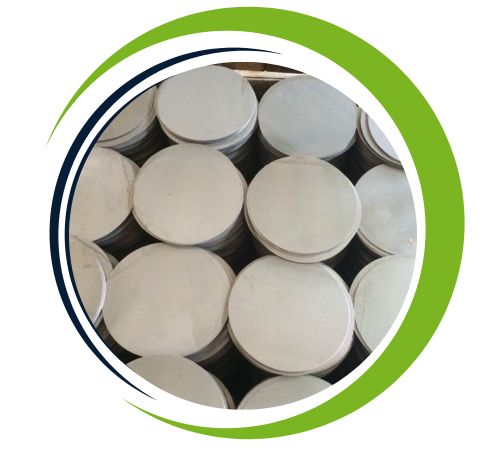

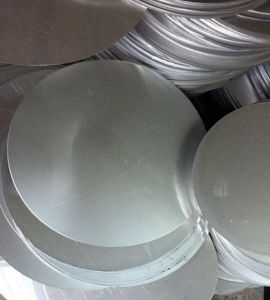

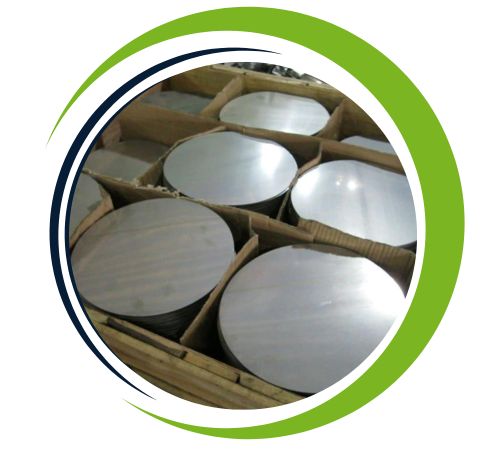

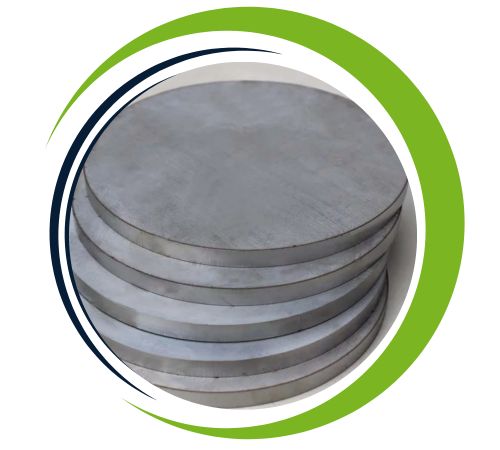

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
DIN 2.4375 Circle offers numerous advantages, including superior strength and hardness due to the addition of aluminum and titanium. Its excellent corrosion resistance in harsh marine, chemical, and high-temperature environments makes it ideal for demanding applications. The alloy also resists stress corrosion cracking, pitting, and crevice corrosion, ensuring long-lasting performance. Monel K500 maintains stability under extreme conditions and exhibits excellent fatigue and impact resistance. Its high durability, combined with good weldability and machinability, makes it a reliable choice for use in aerospace, marine, and chemical processing industries.
Yes, we offer custom sizes for Monel K500 Circle to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
Monel K500 Circles find extensive use in the marine industry for components like pump shafts, propellers, valves, and seawater piping, thanks to their impressive resistance to corrosion and biofouling. In the chemical and petrochemical sectors, they are utilized in heat exchangers, evaporators, and processing equipment that come into contact with acids and alkalis. The aerospace and power generation industries also rely on them for high-strength, corrosion-resistant components that can withstand cyclic loading and high-stress conditions. With their blend of strength, toughness, and corrosion resistance, Monel K500 Circles are a trusted choice for critical industrial applications.
