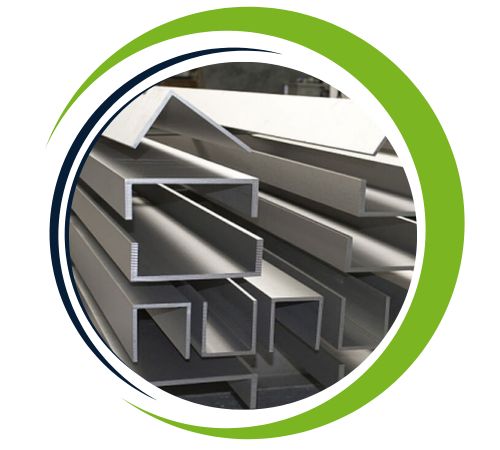

If you’re looking for a reliable source of **Monel K500 Channels**, look no further than Hassan Sheets and Plate, your go-to manufacturer and supplier based in Riyadh, Saudi Arabia. We take pride in offering top-notch **Monel K500 Channels** that are celebrated for their remarkable strength and resistance to corrosion. As a trusted name in the industry, we deliver high-performance alloy products that are perfect for demanding industrial applications. Our Monel K500 Channels blend the impressive corrosion resistance of Monel 400 with enhanced strength and hardness, thanks to age-hardening techniques. Crafted with care, these channels are built to withstand the toughest environments, including marine, chemical, and oil and gas sectors. We’re dedicated to providing consistent quality and prompt service throughout Saudi Arabia and beyond.
Our Monel K500 Channels are made from a nickel-copper alloy, featuring around 63% nickel and 30% copper, along with small amounts of aluminum and titanium. These elements facilitate precipitation hardening, boosting strength and hardness while keeping corrosion resistance intact. With a tensile strength of up to 1100 MPa, Monel K500 maintains its mechanical properties even in extreme temperatures, both hot and cold. It excels in resisting seawater, acids, alkalis, and other harsh conditions. Plus, it’s non-magnetic in its annealed state and retains this characteristic even after cold working or aging.
| Specifications | : | ASTM B865 / ASME B865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Channel | : | 40mm*20mm~300mm*300mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | C Channel, U Channel, Channels |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.50 max | 0.5 max | 27.0-33.0 | 0.5 – 2 | 63.0 min | 0.010 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15000 , MPa –790 | 20% |
UNS N05500 C Channel offers exceptional advantages, including superior corrosion resistance in harsh marine and chemical environments. Enhanced by its precipitation-hardening process, it provides significantly higher tensile and yield strength compared to Monel 400. The alloy exhibits excellent resistance to stress corrosion cracking, pitting, and crevice corrosion, ensuring reliability in challenging conditions. Its high thermal and electrical conductivity make it suitable for high-performance applications. Additionally, Monel K500 retains strength and toughness across a wide temperature range, making it ideal for aerospace, marine, and industrial uses requiring durability and long service life.
Yes, we offer custom sizes for Monel K500 Channel to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
Monel K500 Channels are perfect for use in highly corrosive settings where strength and durability are non-negotiable. They find extensive application in marine engineering, serving as propeller shafts, pump and valve components, and in offshore platforms. In the chemical processing industry, they are essential for equipment that comes into contact with aggressive acids and caustic solutions. The oil and gas sector relies on them for downhole tools and safety valves. Thanks to their outstanding mechanical and corrosion-resistant properties, these channels are also ideal for aerospace, defense, and high-performance industrial applications, especially where longevity and low maintenance are key.
