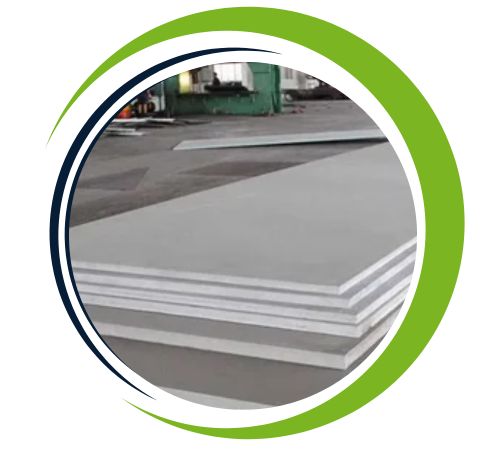

Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, proudly offers premium **Inconel 617 Sheets and Plates** that excel in high-temperature and high-stress environments. As a trusted supplier for industries like aerospace, petrochemical, and power generation, we ensure our Inconel 617 products meet international standards and come in a variety of sizes and thicknesses. With a strong focus on quality, precision, and timely delivery, we cater to customers throughout Saudi Arabia and the GCC, providing reliable, high-performance nickel alloy solutions.
Our Inconel 617 Sheets and Plates are crafted from a **nickel-chromium-cobalt-molybdenum alloy**, typically composed of **Ni (≥44.5%), Cr (20–24%), Co (10–15%), Mo (8–10%)**, along with small amounts of aluminum and other elements. This alloy boasts **exceptional oxidation resistance up to 1100°C (2012°F)**, impressive creep-rupture strength, and solid resistance to a variety of corrosive environments. With a **tensile strength ranging from 690 to 760 MPa**, Inconel 617 maintains its mechanical integrity even under extreme temperatures, pressure, and thermal cycling, making it perfect for critical, long-term applications.
Standards : ASTM B168 / ASME SB168, SAE AMS 5888, SAE AMS 5889
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| Element | Yield Strength | Tensile Strength | Elongation % | Reduction of Area | Hardness, BHN | ||
| ksi | MPa | ksi | MPa | ||||
| Inconel 617 | 50.9 | 351 | 109.5 | 755 | 58 | – | 173 |
| Grade Inconel 617 | Ni | Cr | Fe | Mo | Co | Mn | Cu | Al | Ti | Si | C | S | P |
| MIN | 44.2 | 20.0 | – | 8.0 | 10.0 | – | – | 0.8 | – | – | – | – | – |
| MAX | 56.0 | 24.0 | 3.0 | 10.0 | 15.0 | 0.5 | 0.5 | 1.5 | 0.6 | 0.5 | 0.15 | 0.015 | 0.015 |
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
You’ll find Inconel 617 Sheets and Plates in **gas turbines, heat exchangers, nuclear and fossil fuel power plants, chemical reactors, ducting systems, and high-temperature industrial furnaces**. Their ability to resist oxidation, carburization, and chloride-induced corrosion makes them a top choice for **aerospace components, petrochemical processing, and waste heat recovery systems**. These sheets and plates are specifically chosen for their superior strength, reliability, and corrosion resistance, especially when facing prolonged high-temperature exposure and mechanical stress.
Yes, we offer custom sizes for Inconel 617 Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
| Thickness | Plate Weight per Unit Area | Density |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Inconel 617 Sheets and Plates are widely used in industries requiring materials that withstand extreme conditions. Their exceptional heat and corrosion resistance make them ideal for gas turbines, jet engines, and combustion chambers in aerospace applications. In power generation, they are used in heat exchangers and furnace components due to their thermal stability. The alloy’s strength and resistance to chemical attack suit it for petrochemical processing, nuclear reactors, and marine engineering. Additionally, their versatility supports applications in industrial heating systems and chemical plants handling aggressive environments.
