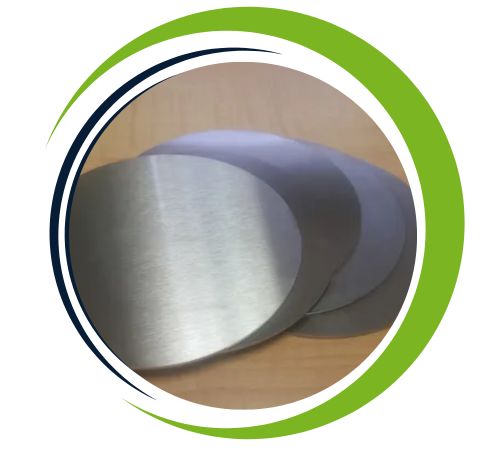

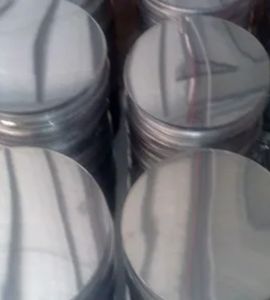

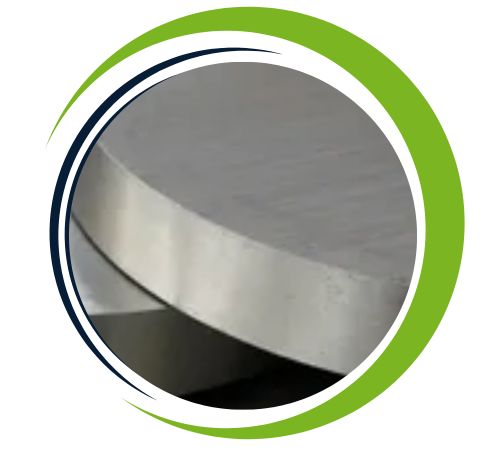

Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, proudly offers top-notch **Inconel 925 and Inconel 926 Circles** that are designed to excel in extreme conditions, where high pressure, heat, and corrosion are the norms. These meticulously crafted nickel-based alloy circles find their place in various industries, including oil & gas, chemical processing, and marine applications. At Hassan, we provide Inconel 925 and 926 circles in a wide range of diameters and thicknesses, all produced to meet rigorous international standards. Our dedication to delivering reliable products on time ensures that our clients across Saudi Arabia and the GCC region can count on us.
Inconel 925 Circles are made up of **Nickel (42–46%), Chromium (19.5–23.5%), Iron (the balance), along with Molybdenum, Copper, Titanium, and Aluminum**, which together provide exceptional strength, corrosion resistance, and remarkable protection against sulfide stress cracking and pitting. On the other hand, Inconel 926 Circles boast **higher levels of Chromium (19.5–20.5%), Nickel (24–26%), and Molybdenum (3–4%)**, which enhance their resistance to pitting, crevice corrosion, and stress corrosion caused by chlorides. Both alloys deliver **tensile strengths exceeding 650 MPa** and maintain outstanding mechanical properties even in harsh chemical and seawater environments.
| Standards : | ASTM B424, 463 / ASME SB424, SB 463 |
| Thickness : | Ranging from 0.3mm to 20mm, 0.1mm to 100 mm Thk |
| Length : | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm. |
| Hardness : | As per ASME A & NACE MR 175 |
| Width : | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Finish : | Hot rolled plate (HR), Cold rolled sheet (CR) |
| STANDARD | WERKSTOFF NR. | UNS |
| Alloy 925 | – | N09925 |
| Alloy 926 | 1.4529 | N08926 |
| Grade | C | Mo | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 925 | 0.01 max | 3 max | 0.5 max | 0.03 max | 1.8 | 28 | 44 | 21 | 0.3 | 2.1 |
| Incoloy 926 | ≤0.02 | 6-7 | ≤0.5 | ≤0.01 | 0.5-1.5 | 41.69 – 50.35 | 24-26 | 19-21 | – | – |
| Yield strength RP0.2, MPA | Tensile strength RM, MPA | Elongation [%] | Hardness [HRC] | Impact, Charpy-V, -60ºC [J] |
| ≥ 758 | ≥ 965 | ≥ 25 | ≤ 38 | ≥ 47 |
| ≥296 MPa – ≥43000 psi | ≥648 MPa – ≥94000 psi | ≥35 % | – | ≥ 47 |
| Properties | Density |
|---|---|
| Metric | 8.03 g/cm³ |
| Imperial | 0.29 lb/in³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
You’ll find Inconel 925 and 926 Circles utilized in **downhole oil tools, marine components, chemical processing equipment, piping systems, valves, flanges, and heat exchangers**. Inconel 925 is particularly well-suited for **sour gas environments and challenging well conditions**, while Inconel 926 shines in **chloride-rich or acidic settings**, such as desalination plants, offshore platforms, and chemical reactors. These circles are highly regarded for their strength, corrosion resistance, and ability to thrive in demanding, high-pressure service conditions over extended periods.
Inconel 925 and 926 circles provide numerous advantages for industrial applications. Their exceptional corrosion resistance, especially in chloride-rich and acidic environments, ensures reliability and longevity. These alloys offer excellent mechanical strength and resistance to stress corrosion cracking, making them ideal for high-pressure and high-stress conditions. With superior performance in elevated temperatures, they are suitable for demanding industries like oil & gas, marine, and chemical processing. Additionally, Inconel 925 and 926 circles are highly durable, easy to fabricate, and maintain stability, even in harsh operational environments.
Yes, we offer custom sizes for Inconel 925/926 Circle to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Inconel 925 and 926 circles are widely used in industries that require superior strength and resistance to corrosion. They are commonly applied in the oil and gas sector for components like valves, pumps, and tubing exposed to harsh, corrosive environments. These alloys are also used in marine environments for seawater-resistant applications, including heat exchangers and offshore structures. Additionally, Inconel 925/926 circles find use in chemical processing industries, aerospace, and high-temperature furnace components, ensuring durability and reliability under extreme conditions.
