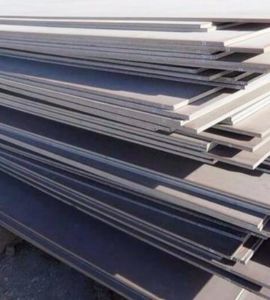

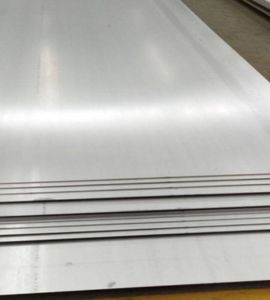

Hassan Sheets and Plate, based in Riyadh, Saudi Arabia, is your go-to source for top-notch **Haynes Sheets and Plates**. These products are specifically crafted to thrive in extreme conditions, offering remarkable strength, corrosion resistance, and thermal stability. Made from cutting-edge nickel- and cobalt-based alloys, Haynes materials find their place in industries like aerospace, chemical processing, power generation, and marine applications. At Hassan, we provide a variety of Haynes sheets and plates, including **Haynes 25, Haynes 188, Haynes 230**, and more, all available in different thicknesses and sizes to meet the demands of critical projects throughout Saudi Arabia and the GCC.
Our Haynes Sheets and Plates are engineered with high-performance alloys that blend **Nickel, Cobalt, Chromium, Molybdenum, Tungsten, and Iron**, tailored to each specific grade. These alloys boast impressive **oxidation resistance up to 1150°C (2100°F)**, along with exceptional **tensile strength (often surpassing 800–1000 MPa)**, creep resistance, and fatigue resistance during thermal cycling. Haynes alloys are also recognized for their weldability, formability, and their ability to withstand carburization and sulfidation in tough service environments.
| Specification : | AMS 5608 / AMS 5609 |
| Standard : | AMS, AMS, API |
| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Haynes 188 (UNS R30188) |
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe | W | B | Mo | Co |
| Haynes 188 | .05 – .15 | 1.25 max | .020 max | .015 max | .20 – .50 | 20.0 – 24.0 | 21.0 -23.0 | 3.0 max | 13.0 -15.0 | .015 max | .03 – .15 | – |
| Yield Strength | Tensile Strength | Elongation | ||
|---|---|---|---|---|
| ksi | MPa | ksi | MPa | % |
| 65 | 446 | 140 | 963 | 55 |
| STANDARD | Material No | UNS | Alloy |
| Haynes 188 | – | R30605 | 188 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
You’ll find Haynes Sheets and Plates in a variety of applications, including **combustion chambers, gas turbines, heat exchangers, aerospace engines, nuclear reactors, and chemical processing systems**. Their resilience in high temperatures and corrosive conditions makes them perfect for **high-stress structural components, liners, and thermal shielding**. Whether it’s in jet propulsion systems or high-temperature industrial furnaces, Haynes alloys ensure long-lasting performance, structural integrity, and lower maintenance needs—making them a reliable choice for critical engineering projects.
Haynes Sheet and Plate are made of high-performance nickel alloys, and are widely used in applications requiring high thermal resistance and good corrosion properties typically as well as turbine blades and combustion chambers, chemical formulations work, and heat exchangers etc. and air and space equipment. It is used in power generation, industrial gas turbines and marine applications. Haynes compounds can withstand severe thermal and mechanical stresses, making them ideal for high temperatures and areas of strong chemical interaction, providing durability and reliability under extreme conditions.
