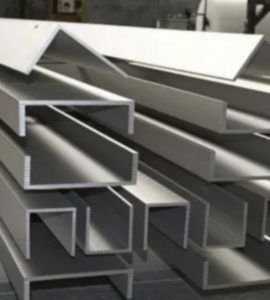

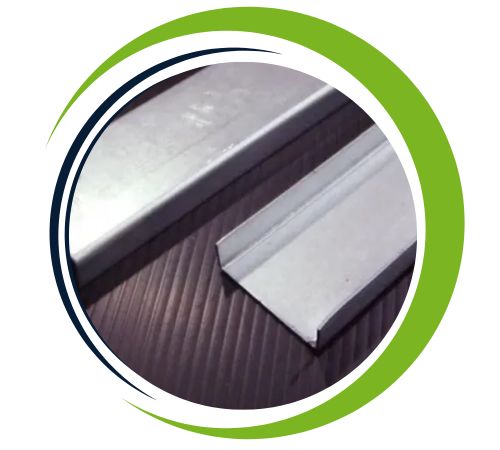

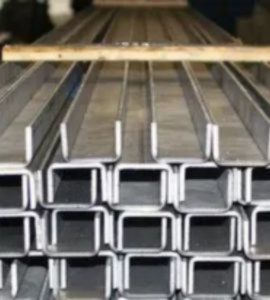

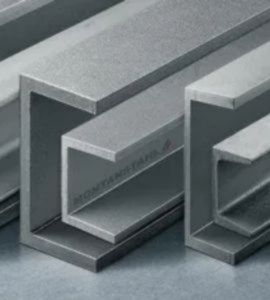

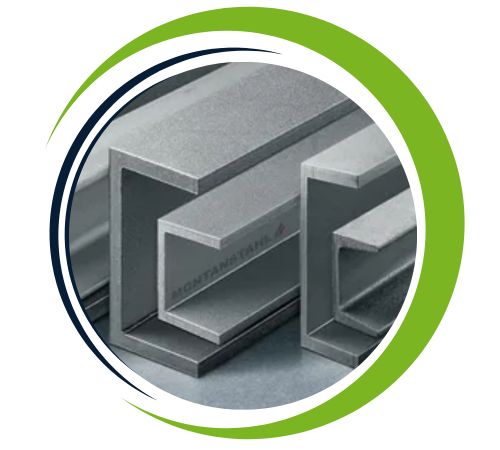

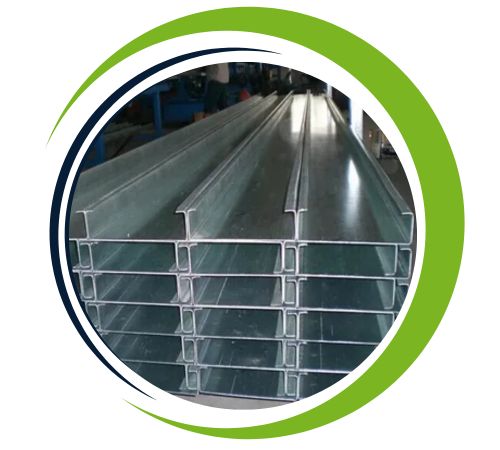

Hassan Sheets and Plate, a leading manufacturer and supplier based in Riyadh, Saudi Arabia, proudly offers top-notch **Duplex Steel S32205 Channels**. These channels are specifically crafted for high-strength structural applications, especially in corrosive and high-pressure settings. Known as UNS S32205 or Duplex 2205, this nitrogen-enhanced duplex stainless steel strikes a remarkable balance between strength and resistance to corrosion. At Hassan, we provide Duplex S32205 channels in a variety of sizes and specifications, catering to the diverse needs of industries throughout Saudi Arabia and the GCC.
The composition of Duplex Steel S32205 Channels includes about **22% Chromium, 5–6% Nickel, 3% Molybdenum**, and nitrogen, which gives them a **yield strength of around 450 MPa**—almost double that of standard austenitic stainless steels. These channels are highly resistant to **chloride stress corrosion cracking, pitting, and crevice corrosion**, and they also boast good weldability and fatigue strength. Thanks to their dual-phase (austenitic-ferritic) microstructure, they offer both durability and corrosion protection in challenging environments.
Specifications : ASTM A182 / ASME SA182

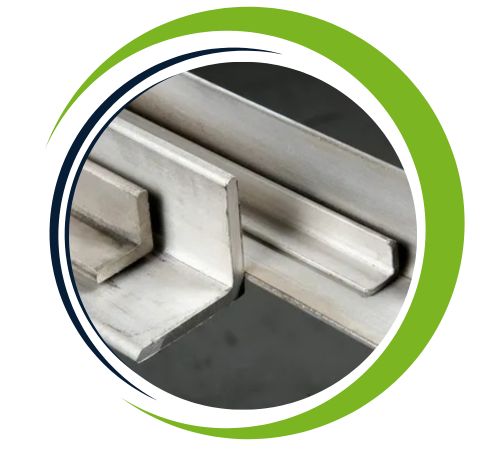

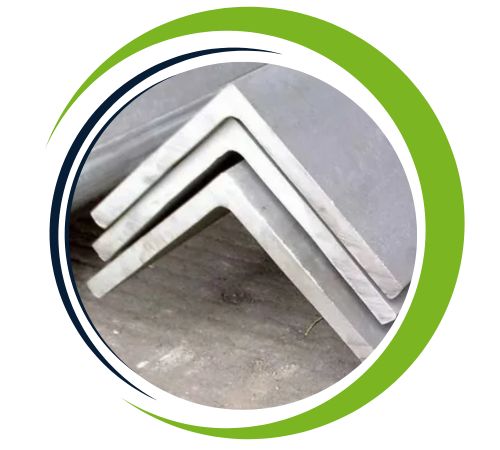

Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S32205 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
You’ll find Duplex S32205 Channels commonly used in **offshore oil and gas platforms, marine structures, chemical processing units, desalination plants, heat exchangers, and structural supports**. Their impressive combination of high mechanical strength and corrosion resistance makes them perfect for **load-bearing frameworks and supports** that face harsh weather, seawater, or corrosive chemicals. These channels promise a long service life, lower maintenance needs, and cost-effective performance in demanding industrial applications.
Duplex Steel S32205 Channel offers several advantages, including exceptional resistance to corrosion, particularly pitting, crevice, and stress corrosion cracking, making it ideal for harsh environments like chemical processing and marine applications. Its high strength, with a yield strength of 450 MPa and tensile strength of 620 MPa, provides superior durability compared to conventional stainless steels. The alloy’s excellent weldability and formability enhance its versatility in fabrication. Additionally, S32205 maintains a good balance of mechanical properties and corrosion resistance, ensuring longer service life and reduced maintenance costs in demanding industries.
Yes, we offer custom sizes for Duplex Steel S32205 Channel to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Duplex Steel S32205 Channel is widely used in industries requiring high strength and corrosion resistance. Its primary applications include chemical processing, oil and gas, marine, and petrochemical sectors. The alloy is ideal for equipment exposed to harsh conditions, such as heat exchangers, pressure vessels, and storage tanks. S32205’s resistance to chloride-induced stress corrosion cracking makes it suitable for offshore platforms, desalination plants, and wastewater treatment. Its durability and strength also make it a preferred material for structural components in demanding environments, offering long-term performance and reliability.
