ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates

Hassan Sheets and Plate Manufacturer and Supplier, based in Riyadh, Saudi Arabia, proudly offers top-notch **ASME SA 387 Grade 5 Class 1 & 2 Sheets and Plates**. These products are specifically designed for high-temperature and pressure applications. Made from chromium-molybdenum alloy steel, our plates are essential in industries like petrochemical, power generation, and oil & gas, where heat and corrosion resistance are paramount. At Hassan, we provide SA 387 Gr. 5 Cl. 1 & 2 plates in various thicknesses and dimensions, all adhering to international quality standards throughout Saudi Arabia and the GCC.

Alloy Steel ASME SA387 GR 5 CL. 1 Plates

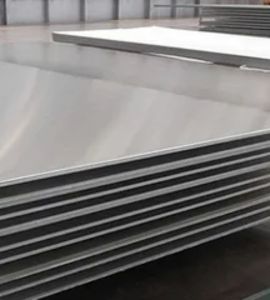

SA387 Grade 5 CL. 2 Alloy Steel Plate

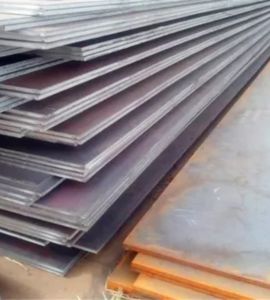

ASTM A387 Grade 5 CL.1 / 2 Pressure Vessel Plates

Alloy Steel ASME SA387 GR 5 CL. 1 Plates Saudi Arabia, SA387 Grade 5 CL. 2 Alloy Steel Plate Suppliers United kingdom, ASTM A387 Grade 5 CL.1 / 2 Pressure Vessel Plates Stockists Riyadh, Alloy Steel ASME SA387 GR 5 CL. 1 Plates Suppliers in Ras Al Khair, ASME SA387 GR.5 CL.1 Plates in Al Jubail, A387 Gr 5 Class 2 Chrome Moly Plate in Jeddah, Alloy Steel ASME SA387 GR 5 CL. 1 Plates Dammam.

The ASME SA 387 Grade 5 Sheets and Plates are alloyed with **5% Chromium and 0.5% Molybdenum**, which gives them remarkable **creep resistance, tensile strength, and oxidation resistance** at high temperatures.

ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates Specification

Width: 1000mm-4500mm
Thickness: 5mm-150mm
Length: 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Process of Manufacturing : Hot-Rolled (HR)

A387 Grade 5 Cl 1/2 Steel Plate Equivalent Standard :

BS	EN	ASTM/ASME	DIN
–	X12CrMo5	A387 / SA 387	–

Chemical Composition of ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates

C	Mn	P	S	Si	Cr	Mo
0.15 max	0.25 – 0.66	0.035	0.030	0.55 max	3.9 – 6.1	0.40 – 0.7

Mechanical Properties of ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates

A387 / SA387 Grade 5	Class 1	Class 2
Tensile Strength (ksi)	60-85	75-100
Tensile Strength (MPa)	415-585	515-690
Yield Strength (ksi)	30	45
Yield Strength (MPa)	205	310
Elongation in 50mm (%)	18	18
Reduction of area in %	45	45

Alloy Steel SA387 GR 5 CL. 2 Plates Saudi Arabia, Chromium-Molybdenum Alloy Steel United kingdom, ASME SA 387 GR. 5 CL 1 and CL 2 Plates Stockholders Riyadh, Chromium-Molybdenum Alloy Steel Suppliers in Ras Al Khair, SA387 GR.5 CL 2 Plate Al Jubail, ASTM A387 Grade 5 CL. 1 / 2 Boiler Steel Plates Distributors in Jeddah, SA387 GR.5 CL 2 Plate Dammam.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Alloy Steel ASME SA387 GR 5 CL. 1 Plates Saudi Arabia, SA387 Grade 5 CL. 2 Alloy Steel Plate Suppliers United kingdom, ASTM A387 Grade 5 CL.1 / 2 Pressure Vessel Plates Stockists Riyadh, Alloy Steel ASME SA387 GR 5 CL. 1 Plates Suppliers in Ras Al Khair, ASME SA387 GR.5 CL.1 Plates in Al Jubail, A387 Gr 5 Class 2 Chrome Moly Plate in Jeddah, Alloy Steel ASME SA387 GR 5 CL. 1 Plates Dammam.

You’ll find SA 387 Grade 5 Class 1 & 2 Sheets and Plates in **pressure vessels, heat exchangers, reactors, boilers, and piping systems** where high temperatures and corrosive environments are a given. These plates are perfect for **thermal processing plants, power stations, and refineries**, providing long-lasting service, structural integrity, and cost-effectiveness even in extreme conditions.

Types of ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates

Alloy Steel SA387 GR 5 CL. 2 Plates Saudi Arabia, Chromium-Molybdenum Alloy Steel United kingdom, ASME SA 387 GR. 5 CL 1 and CL 2 Plates Stockholders Riyadh, Chromium-Molybdenum Alloy Steel Suppliers in Ras Al Khair, SA387 GR.5 CL 2 Plate Al Jubail, ASTM A387 Grade 5 CL. 1 / 2 Boiler Steel Plates Distributors in Jeddah, SA387 GR.5 CL 2 Plate Dammam.

Are Custom Sizes Available for ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates?

Yes, we offer custom sizes for ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of ASME SA 387 Grade 5 Class 1 & 2 Sheet and Plates

ASME SA 387 Grade 5 Class 1 & 2 Sheets and Plates are primarily used in high-temperature and pressure environments. They are commonly found in pressure vessels, boilers, and heat exchangers in industries like petrochemical, power generation, and chemical processing. Their exceptional resistance to heat and corrosion makes them ideal for applications in steam turbines, reactor vessels, and pipelines. These plates are also used in manufacturing components for gas turbines, refineries, and cryogenic systems, offering reliability and performance in demanding industrial applications.
