Alloy C263 Foil

Hassan Sheets and Plates is a reputable manufacturer and supplier located in Riyadh, Saudi Arabia, known for its top-notch metal products, including Alloy C263 Foil. With a solid track record of providing precision-engineered materials, Hassan caters to various industries like aerospace, power generation, and chemical processing. Their Alloy C263 Foil is specifically crafted for high-temperature, high-stress applications that demand exceptional strength, oxidation resistance, and formability. Dedicated to upholding international quality standards, Hassan offers customized solutions that prioritize performance, reliability, and timely delivery, making them a go-to partner for advanced industrial needs throughout Saudi Arabia and beyond.

Alloy C263 Foil Dealer in Ras Al Khair, Alloy C263 Foil Supplier in Ras Al Khair, Alloy C263 0.05mm Foil in Jeddah, Alloy C263 Foil Size Chart, Alloy C263 Foil Price in Dammam, Alloy C263 Foil Supplier in Saudi Arabia, Alloy C263 Foil Stockist in Al Jubail, Alloy C263 Shim Foils Exporter in Saudi Arabia, Alloy C263 Foil Stockist in Riyadh, Alloy C263 Foil Supplier in Al Jubail

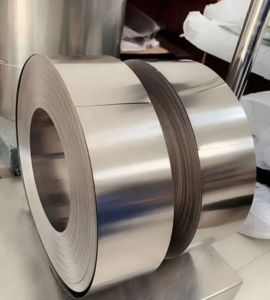

Alloy C263 Foil

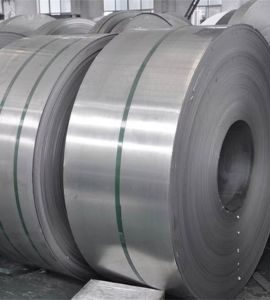

Alloy C263 HR Foils

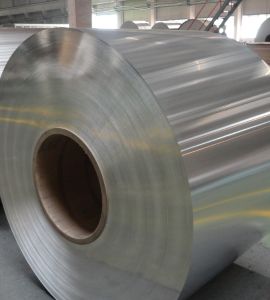

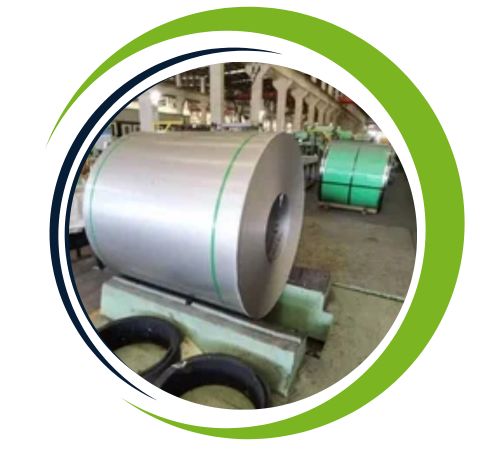

Alloy C263 CR Foils

Alloy C263 Foil mainly consists of nickel as the base metal, along with 19–21% cobalt, 19–21% chromium, 5.6–6.1% molybdenum, and 1.9–2.4% titanium, plus small amounts of aluminum and iron. This unique blend delivers remarkable high-temperature strength, corrosion resistance, and excellent weldability. The foil boasts a tensile strength of about 885 MPa and a yield strength of roughly 485 MPa, along with good ductility and an elongation range of 20–30%. These impressive mechanical properties make Alloy C263 Foil perfect for challenging thermal and structural applications in extreme conditions.

Alloy C263 Foil Specification

Standard Specification :	AMS 5872
Dimensions :	AMS
Sheets Thickness :	Range from .008″ to .0125″
Plates Thickness :	Ranges from .0125″ to 5.00″
Sheets/Plates Width :	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheets/Plates Length :	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Tempers :	Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Value Added Service :	Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Alloy C263 Foil Chemical Composition

Grade	Ni	Co	Cr	Mo	Ti	Fe	Mn	Al	Si	Cu	C	B	S
Alloy C263	49	19-21	19-21	5.60-6.10	1.90-2.40	0.70	0.60	0.60	0.40	0.20	0.040 – 0.080	0.0050	0.0070

Alloy C263 Foil Mechanical Properties

Material	Temp °C	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation %	Hardness HRC
Alloy C263 Solution Treated (AMS 5872 / BS HR206)	RT	–	–	–	22.5 max
Alloy C263 Heat Treated (AMS 5872 / BS HR206	RT	580 (typical)	973 (typical)	39 –
Alloy C263 Heat Treated (AMS 5872 / BS HR206	780	403 (min)	541 (min)	9	–

Alloy C263 Hot Rolled Foil Distributor in Jeddah, Alloy C263 Foils Dammam, Alloy C263 Hot Rolled Foils Distributor in Saudi Arabia, Alloy C263 HR Foil Supplier in Riyadh, Alloy C263 HR Foil Weight Chart, Alloy C263 0.05mm Foil Exporter in Al Jubail, UNS N07263 Alloy C263 Hot Rolled Foil Manufacturer in Ras Al Khair, Alloy C263 Shim Foils Price List in Saudi Arabia, Alloy C263 Chequered Foil Sizes in mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Alloy C263 Foil Manufacturer and Exporter in Riyadh, Saudi Arabia

Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles and Slitting Coils all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Alloy C263 Foil Distributor in Saudi Arabia, Alloy C263 CR Foil Sizes in mm, Alloy C263 Foil Manufacturer in Ras Al Khair, Alloy C263 Foils Jeddah, UNS N07263 Alloy C263 Mirror Finish Foil Supplier in Riyadh, Alloy C263 Hot Rolled Foil Exporter in Al Jubail, Alloy C263 Chequered Foil Price List in Saudi Arabia, Alloy C263 Hot Rolled Foils Distributor in Jeddah, Alloy C263 Shim Foil 0.20mm, Supplier in Ras Al Khair

Alloy C263 Foil Physical Properties

Properties	Metric	Imperial
Density	8.359 g/cm³	0.302 lb/in³
Melting point	1300-1335°C	2372-2471°F

Alloy C263 foil provides excellent advantages for high temperature applications. It provides outstanding resistance to oxidation and creep, making it ideal for aerospace and industrial applications. The high weldability and formability of the alloy ensures easy fabrication in complex shapes. Its excellent thermal stability and resistance to cracking under thermal cycling enhances reliability in extreme conditions. Additionally, alloy C263 exhibits corrosion and oxidation resistance up to 980°C (1800°F), providing long durability. Its combination of strength, ductility and thermal performance makes it desirable in gas turbines and heat treatment equipment.

Types of Alloy C263 Foil

Alloy C263 Hot Rolled Foil Exporter in Saudi Arabia, Alloy C263 HR Foil Exporter in Jeddah, Alloy C263 Foils in Dammam, Alloy C263 Shim Foil Price in Dammam, UNS N07263 Alloy C263 Hot Rolled Foil Weight Chart, Alloy C263 Cold Rolled Foils Supplier in Saudi Arabia, Stockist of Alloy C263 Cold Rolled Foil in Al Jubail, Alloy C263 Shim Foil 0.20mm,Supplier in Saudi Arabia, Alloy C263 HR Foil Price List in Riyadh, Alloy C263 CR Foil Supplier in Al Jubail, Alloy C263 Chequered Foil Exporter in Ras Al Khair

Are Custom Sizes Available for Alloy C263 Foil?

Yes, we offer custom sizes for Alloy C263 Foil to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@hasansheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Alloy C263 Foil

Alloy C263 Foil finds its place in high-performance applications where heat resistance, strength, and corrosion protection are essential. In the aerospace sector, it’s utilized for insulation, heat shielding, and components in gas turbines. The power generation industry employs it in combustion liners, seals, and turbine parts that face extreme temperatures. Its flexibility and durability also make it a great fit for chemical processing equipment that operates in oxidizing environments. Thanks to its superb formability, Alloy C263 Foil is frequently used in precision-engineered parts that need to withstand thermal fatigue and stress corrosion cracking.
