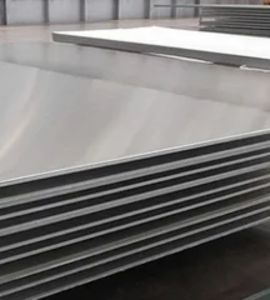

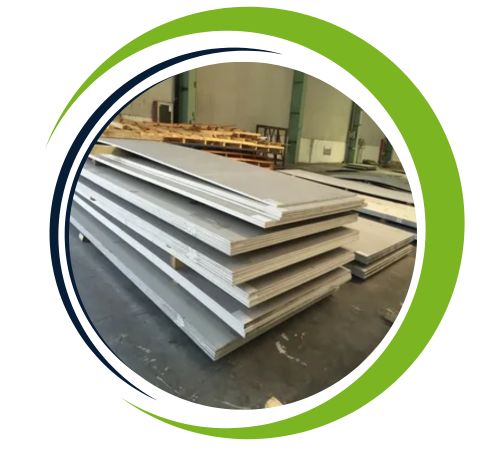

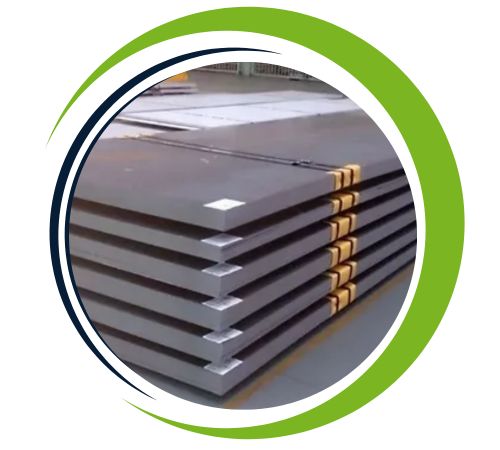

Hassan Sheets and Plate, a prominent manufacturer and supplier located in Riyadh, Saudi Arabia, specializes in high-quality Alloy Steel Gr 5 Sheets and Plates. These products are well-known for their exceptional strength, toughness, and durability. Crafted to meet international quality standards, these sheets and plates are built to endure the rigors of heavy-duty industrial and structural applications. With a commitment to precise manufacturing, stringent quality control, and timely delivery, Hassan Sheets and Plate makes Alloy Steel Gr 5 Sheets and Plates a dependable choice for projects that demand long-lasting performance, structural integrity, and resistance to wear and stress.
The Alloy Steel Gr 5 Sheets and Plates are made from iron, with carefully controlled amounts of carbon, chromium, molybdenum, and nickel, which contribute to their outstanding mechanical properties. They boast high tensile and yield strength, remarkable toughness, and excellent resistance to wear and fatigue. The material can be heat-treated, allowing for adjustments in hardness and flexibility to suit specific project needs. This blend of strength, durability, and ductility guarantees reliable performance even under heavy loads and challenging industrial conditions.
Alloy Steel Sheets and Plates Specification : ASTM A387 / ASME SA387
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | P | S | Si | Cr | Mo |
| 0.15 max | 0.25 – 0.66 | 0.035 | 0.030 | 0.55 max | 3.9 – 6.1 | 0.40 – 0.7 |
| A387 / SA387 Grade 5 | Class 1 | Class 2 |
| Tensile Strength (ksi) | 60-85 | 75-100 |
| Tensile Strength (MPa) | 415-585 | 515-690 |
| Yield Strength (ksi) | 30 | 45 |
| Yield Strength (MPa) | 205 | 310 |
| Elongation in 50mm (%) | 18 | 18 |
| Reduction of area in % | 45 | 45 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Alloy Steel Grade 5 sheets and plates offer several key advantages, including exceptional strength, durability, and resistance to wear, making them ideal for demanding applications. Their high tensile strength and fatigue resistance allow them to perform reliably under heavy loads and extreme conditions. The material’s resistance to corrosion and abrasion ensures longevity, even in harsh environments. Additionally, Alloy Steel Gr 5 exhibits excellent hardenability and weldability, providing versatility for various industrial uses. These properties make it suitable for automotive, aerospace, construction, and manufacturing sectors, where performance and reliability are critical.
Yes, we offer custom sizes for Alloy Steel Gr 5 Sheets and Plates to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@hasansheetsplates.com.
These Alloy Steel Gr 5 Sheets and Plates find extensive use in construction, heavy machinery, engineering, and industrial fabrication. They are perfect for structural components, pressure vessels, machinery parts, and equipment that require high strength and resistance to wear and impact. Thanks to their superior mechanical properties, durability, and reliability, Alloy Steel Gr 5 Sheets and Plates are the go-to choice for engineers, fabricators, and contractors tackling demanding industrial and structural projects.
