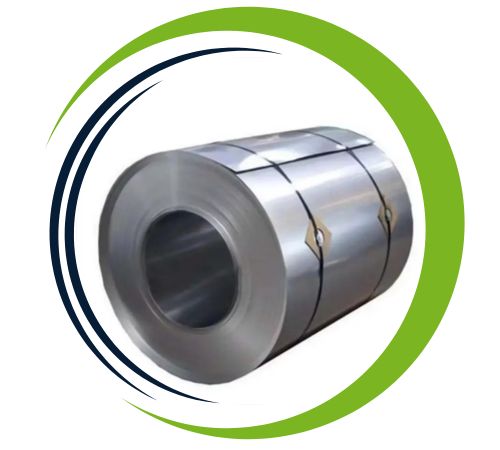

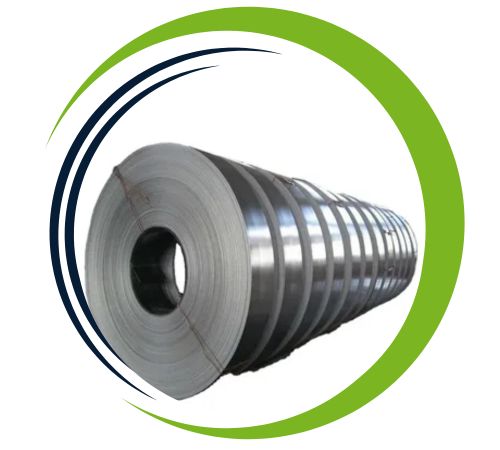

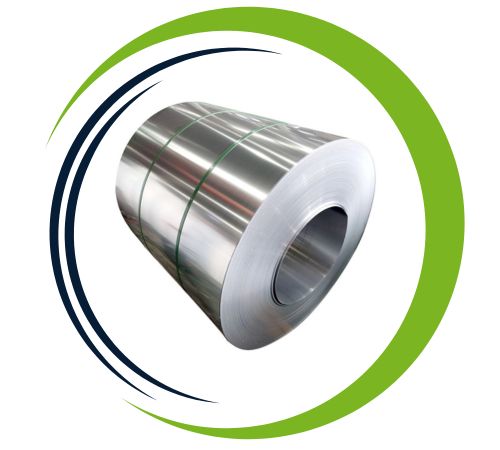

Hassan Sheets is a top Riyadh-based Saudi Arabian manufacturer and supplier of high-quality Titanium Grade 5 coil and slitting coil industrial products. With a high focus on precision, durability, and international quality standards, the organization caters to industries like aerospace, automotive, medical, and chemical processing. Titanium Grade 5, or Ti-6Al-4V, is a high-strength alloy that is characterized by its superior corrosion resistance and light weight. Hassan Sheets provides secure supply and tailored coil solutions to suit the unique needs of high-demand engineering and fabrication projects.
Titanium Grade 5 coil and slitting coil consist of 90% titanium, 6% aluminum, and 4% vanadium. This alloy provides high tensile strength of approximately 895 MPa and yield strength of about 828 MPa. The alloy has good ductility, toughness, and resistance to fatigue, providing it with potential for use in stress-loaded applications. The alloy has good corrosion resistance in most aggressive environments and is heat treatable as well, which further increases its mechanical properties. These features provide Titanium Grade 5 coils with high reliability for both structural and precision uses.
| Standards | ASTM B265 / ASME SB265 |
| Thickness | 0.2mm – 5.0mm |
| Width | 3.2mm – 1500mm & bove |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Hardness | Annealed – pickled (soft), Soft, Hard, Half Hard, Quarter Hard, Spring Hard , 1/4 hard, Yi hard,3/4 hard , full hard , extra hard |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | Cold rolled stainless steel strips annealed & pickled 2 B Cold rolled stainless steel strips annealed & skin passed 2R Work harden for specific hardness BA/BE/ Matt Finish Cold rolled stainless steel strips |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | R56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hassan Sheets and Plates based in Riyadh, Saudi Arabia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Thickness Tolerance +/- mm | ||||
| Thickness | Width | |||
| 320≤W＜600 | W＜320 | |||
| T1 | T2 | T3 | T4 | |
| T＜0.05 mm | 0.004 | 0.003 | 0.003 | 0.002 |
| 0.05≤T＜0.07 | 0.005 | 0.004 | 0.004 | 0.003 |
| 0.07≤T＜0.08 | 0.006 | 0.005 | 0.005 | 0.003 |
| 0.08≤T＜0.10 | 0.007 | 0.005 | 0.005 | 0.003 |
| 0.10≤T＜0.13 | 0.009 | 0.007 | 0.006 | 0.004 |
| 0.13≤T＜0.15 | 0.010 | 0.008 | 0.007 | 0.004 |
| 0.15≤T＜0.20 | 0.011 | 0.009 | 0.008 | 0.004 |
| 0.20≤T＜0.25 | 0.013 | 0.010 | 0.008 | 0.005 |
| 0.25≤T＜0.30 | 0.015 | 0.011 | 0.009 | 0.005 |
| 0.30≤T＜0.35 | 0.016 | 0.012 | 0.010 | 0.005 |
| 0.35≤T＜0.40 | 0.018 | 0.012 | 0.010 | 0.005 |
| 0.40≤T＜0.50 | 0.020 | 0.015 | 0.012 | 0.005 |
| 0.50≤T＜0.60 | 0.022 | 0.018 | 0.013 | 0.005 |
| 0.60≤T＜0.70 | 0.024 | 0.020 | 0.015 | 0.005 |
| 0.70≤T＜0.80 | 0.026 | 0.022 | 0.017 | 0.005 |
| 0.80≤T＜0.90 | 0.028 | 0.024 | 0.018 | 0.006 |
| 0.90≤T＜1.00 | 0.032 | 0.027 | 0.020 | 0.008 |
| 1.00≤T＜1.20 | 0.035 | 0.030 | 0.022 | 0.008 |
| 1.20≤T＜1.40 | 0.040 | 0.035 | 0.025 | 0.010 |
| 1.40≤T＜1.60 | 0.045 | 0.040 | 0.030 | 0.020 |
Titanium Grade 5 coils and slitting coils offer many benefits, including high strength to weight ratio, excellent corrosion resistance and exceptional durability They withstand harsh conditions including temperatures up to 400 degrees Celsius self without loss of performance. Biocompatibility makes them ideal for medical applications, while their light weight increases fuel efficiency in the aerospace and automotive industries. These coils also exhibit excellent fatigue and separation resistance, providing long service life. Furthermore, they are versatile, easy to machine and reusable, providing durable and reliable solutions for complex applications across a variety of industries.
Yes, we offer custom sizes for Titanium Grade 5 Coil/Slitting Coil to meet specific project needs. Our team at Hassan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 coil and slitting coil find extensive applications in high-performance and reliable industries. In aerospace, they are applied to structural components, engine components, and brackets. In medicine, they are used for surgical devices and implantable devices owing to their biocompatibility. They also find application in automotive systems, marine hardware, and chemical processing applications. The strength, corrosion resistance, and formability make these coils suitable for precision fabrication and long-term durability in demanding conditions.
