Hassan Sheets and Plate, located in Riyadh, Saudi Arabia, has built a solid reputation as a reliable manufacturer and supplier of top-notch metal products. They provide high-performance materials tailored for a variety of industrial uses. Among their standout offerings are Aluminium 2024 Plates and Sheets, which are celebrated for their remarkable strength, fatigue resistance, and ease of machining. These materials find their way into the aerospace, automotive, and structural engineering sectors, making them perfect for demanding applications. Hassan Sheets and Plate is dedicated to delivering products that adhere to international standards, ensuring consistent quality, precision, and timely service to meet the ever-changing needs of clients both locally and globally.

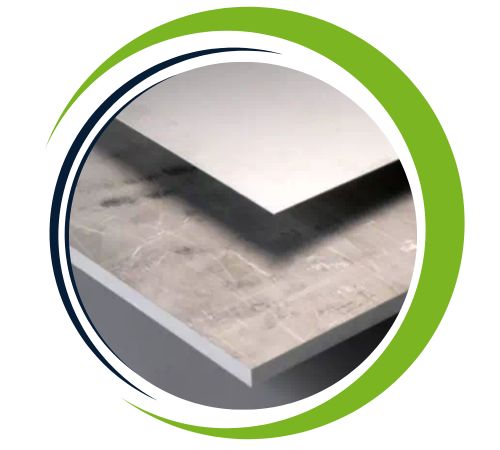

Aluminium 2024 Plates and Sheets are primarily made up of aluminum (90.7%), copper (3.8–4.9%), manganese (0.3–0.9%), and magnesium (1.2–1.8%). This high-strength alloy is known for its excellent fatigue resistance and good machinability. Its mechanical properties include a tensile strength ranging from 470 to 510 MPa, a yield strength of about 325 MPa, and an elongation of 10 to 20%, depending on the temper. While it doesn’t boast great corrosion resistance, it is often clad with pure aluminum for added protection. Although Aluminium 2024 isn’t the best choice for welding, it is frequently used in its heat-treated form to achieve outstanding strength and structural performance.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aluminium 2024 Sheets and Plates offer several advantages, including exceptional strength and high fatigue resistance, making them ideal for aerospace, military, and structural applications. The high copper content enhances its mechanical properties, providing superior strength-to-weight ratio, which is essential in weight-sensitive industries like aviation. Aluminium 2024 also offers good machinability, allowing for complex designs and precise fabrication. While it has moderate corrosion resistance, it can be treated with coatings for enhanced durability. Its high performance, combined with excellent wear resistance, makes it a preferred choice for demanding environments.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
In the aerospace and aviation industries, Aluminium 2024 Plates and Sheets are commonly used for structural components such as fuselage frames, wing skins, and bulkheads, thanks to their impressive strength-to-weight ratio and fatigue resistance. They’re also found in automotive parts, truck wheels, and military applications where strength and durability are paramount. Beyond that, these sheets and plates are utilized in precision engineering, robotics, and transportation equipment. Despite their limited corrosion resistance, their ability to perform under mechanical stress makes them ideal for applications that demand toughness and dimensional stability.
